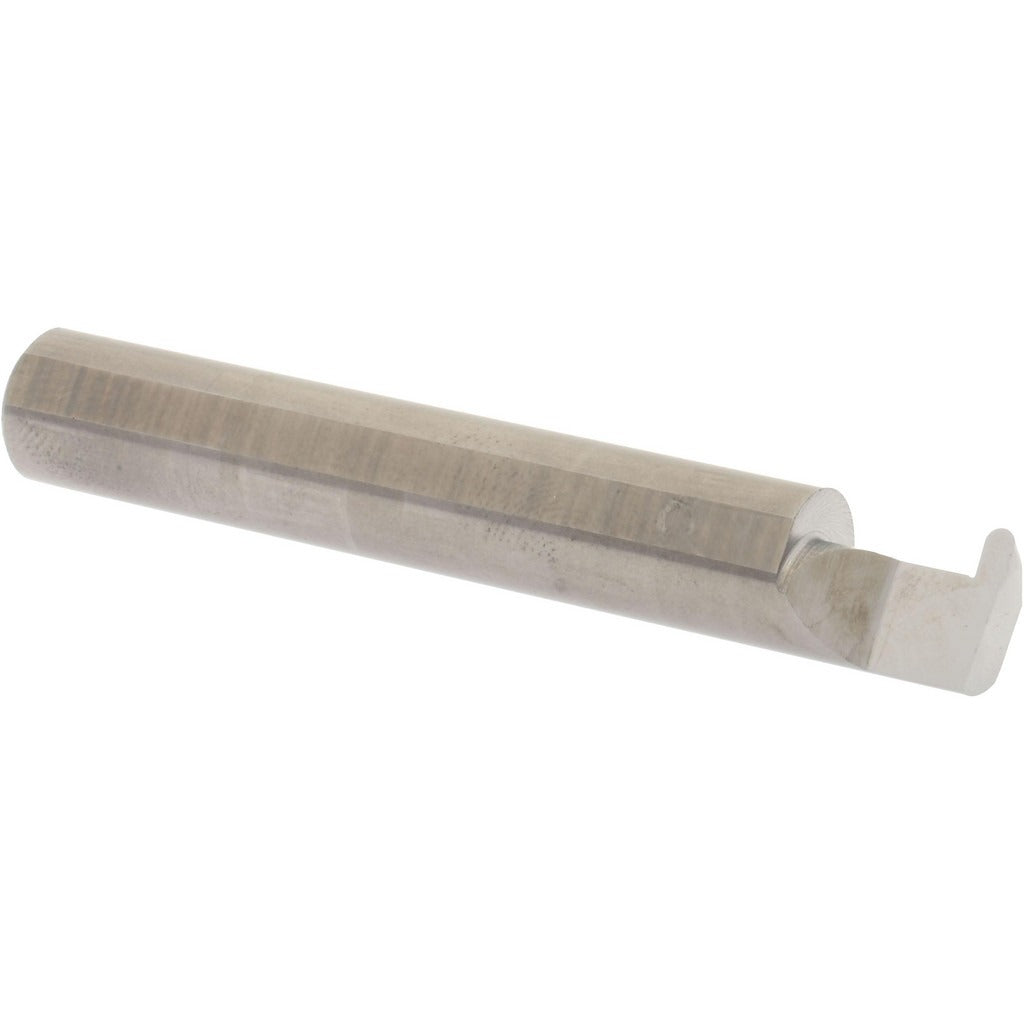

Accupro ACC-GF069-6 Full Radius Grooving Tool Solid Carbide

Product Description

The ACCUPRO ACC-GF069-6 is a full radius grooving tool designed for internal grooving operations on CNC lathes and boring applications. Constructed from submicron-grade solid carbide, it delivers consistent edge retention and dimensional accuracy in demanding machining environments. The tool features a 3/8 inch shank diameter and cuts a groove width of 0.0700 inches. With an overall length of 2.5 inches and a projection of 0.1100 inches, it is suited for precise, repeatable groove profiles in ferrous and non-ferrous materials. Machinists and toolroom professionals install this tool in compatible boring bar holders or internal grooving setups.

This grooving tool is used in turning and boring center applications where a full radius groove profile is required. It is well suited for internal groove work in small-diameter bores, with a minimum hole diameter of 0.3750 inches and a maximum hole depth of 0.3750 inches. Typical applications include snap ring grooves, oil grooves, and radius undercuts in precision machined components across manufacturing, maintenance, and toolroom environments.

Key Features

• Full radius cutting profile for consistent groove geometry
• Submicron-grade solid carbide construction for extended tool life
• 0.0700 inch groove width for precise, repeatable cuts
• 3/8 inch shank diameter for secure toolholder engagement
• 0.1100 inch projection enables access to tight bore depths
• Compact 2.5 inch overall length suits confined machining setups

Compatibility

Designed for use in toolholders and boring bar setups accepting a 3/8 inch shank, suitable for CNC turning centers and manual lathes requiring internal full radius grooving capability.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer's guidelines for tool clamping and runout. Ensure the machine spindle is fully stopped and the machine is in a safe, locked-out state before inserting or removing the tool. Verify proper shank seating and clamping torque per the toolholder manufacturer's specification. Inspect the cutting edge for chips or wear before each use.
