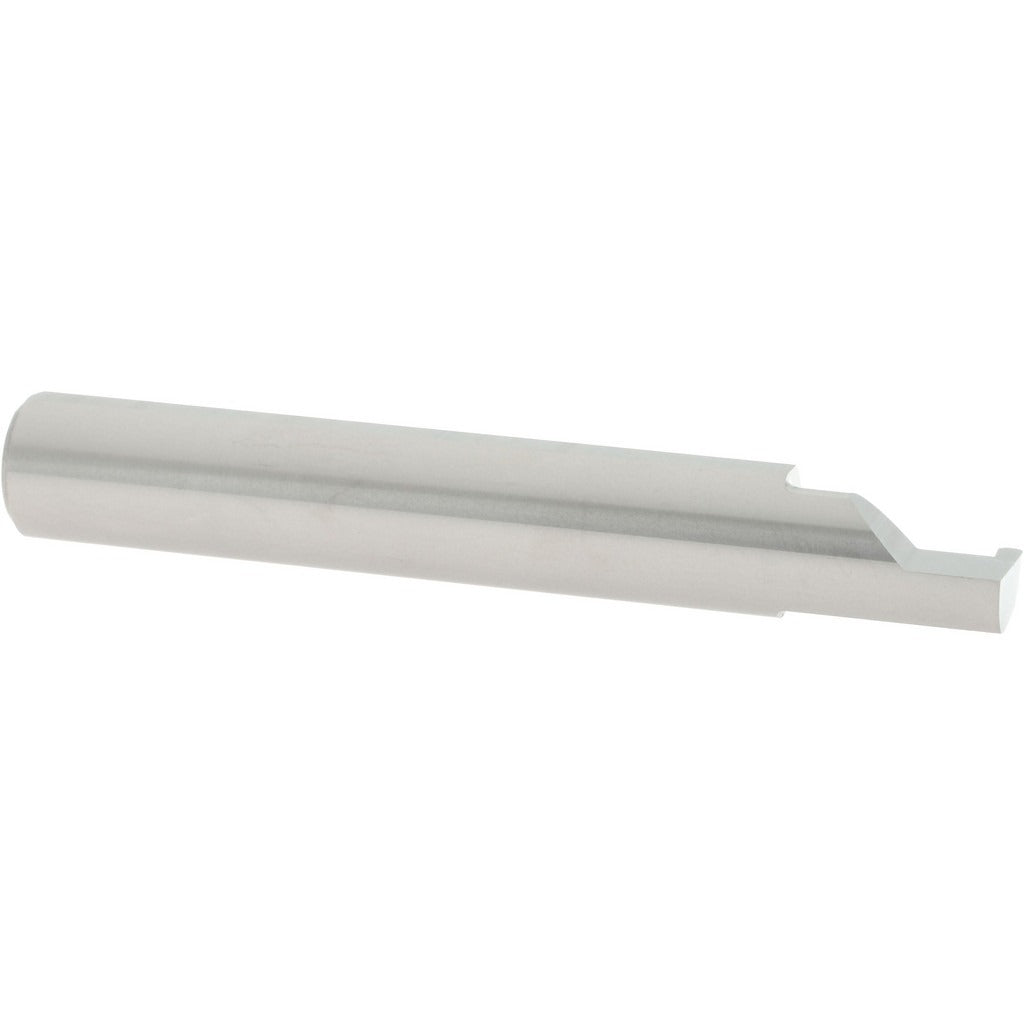

Accupro ACC-GF062-8 Full Radius Grooving Tool

Product Description

The ACCUPRO ACC-GF062-8 is a full radius grooving tool designed for internal grooving operations on CNC lathes and turning centers. Built from submicron-grade solid carbide, this tool delivers consistent performance in demanding cutting applications where tool wear and dimensional accuracy are critical. The 3/8-inch shank diameter and 0.0630-inch groove width make it suited for tight-tolerance grooving passes in bores as small as 0.375 inches. Machinists and tool-and-die shops rely on submicron carbide grades for their superior hardness retention at elevated cutting temperatures.

This grooving tool is used in precision machining environments including production turning, job shops, and toolroom applications. It is appropriate for creating internal grooves, snap ring grooves, and relief features in workpiece bores. The 0.375-inch minimum hole diameter and 0.5-inch maximum hole depth define the working envelope for this tool. It is typically installed in a standard 3/8-inch boring bar or grooving tool holder and indexed on a CNC turning center or manual lathe by a machinist or precision tooling technician.

Key Features

• Submicron-grade solid carbide construction for extended tool life in hard and abrasive materials
• Full radius profile for consistent groove geometry and smooth corner finishing
• 0.0630-inch groove width suited for narrow internal groove applications
• 0.375-inch minimum hole diameter allows use in small-bore workpieces
• 2.0-inch shank length provides adequate reach with a 2.5-inch overall length
• 0.110-inch projection supports controlled depth-of-cut engagement

Compatibility

Designed for use in standard 3/8-inch shank grooving tool holders on CNC turning centers and manual lathes capable of internal grooving operations.

Installation Notes

This tool is installed and used by machinists and CNC operators in a lathe or turning center tool holder sized for a 3/8-inch shank. Power down and lock out the machine spindle before mounting or removing the tool. Confirm shank seating and tool holder clamping torque per the tool holder manufacturer specifications before beginning a cut. Do not exceed the maximum hole depth of 0.5 inches to avoid tool deflection or breakage.
