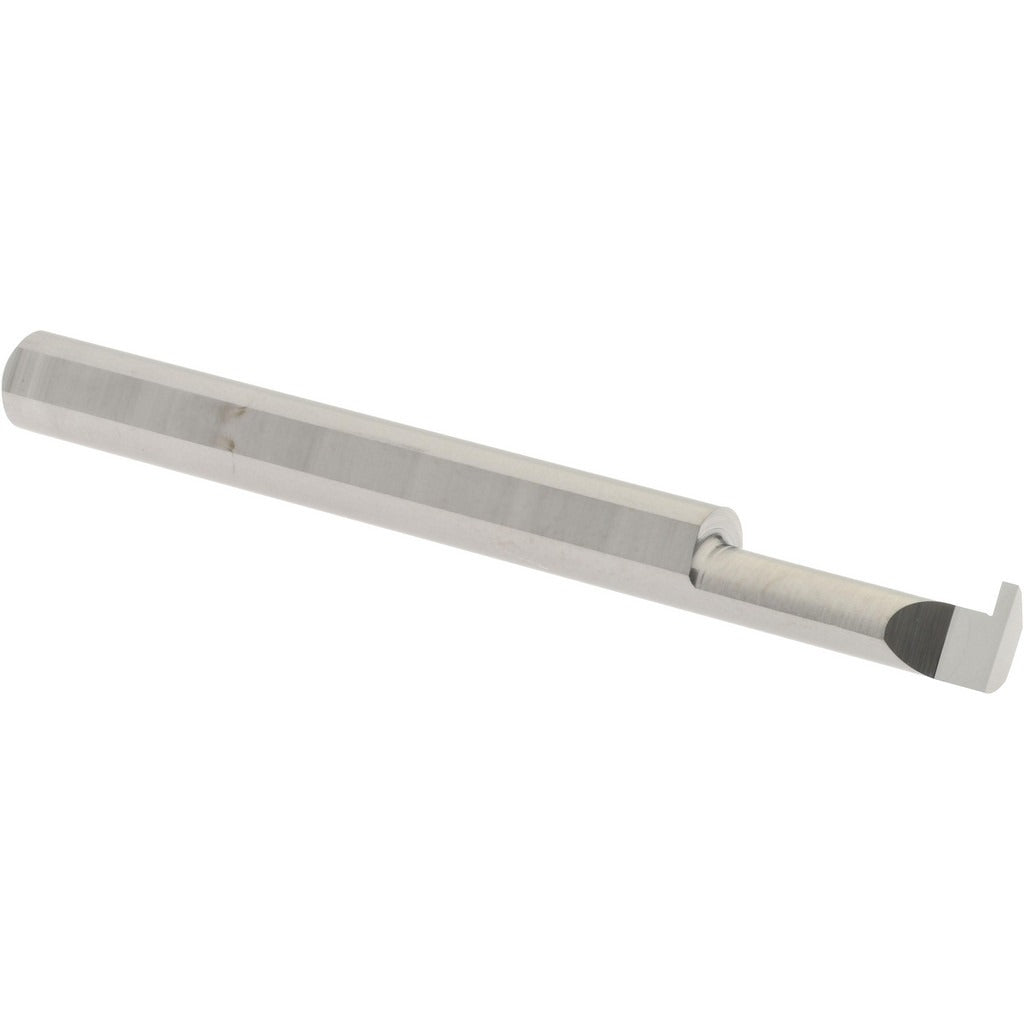

Accupro ACC-G030K-8 Retaining Ring Grooving Tool

Product Description

The ACCUPRO ACC-G030K-8 is a solid carbide retaining ring grooving tool designed for internal groove cutting in precision machining applications. Built from submicron-grade solid carbide, this tool delivers consistent performance in small-bore grooving where dimensional accuracy is critical. The 3/16-inch shank diameter keeps the tool compact and compatible with standard collet setups. With a groove width of 0.0305 inches and a projection of 0.050 inches, it is suited for cutting clean, tight-tolerance retaining ring grooves in small diameter bores. Machinists and tool-and-die professionals rely on this type of tool for repeatability in production runs.

This grooving tool is intended for internal retaining ring groove operations in bores with a minimum hole diameter of 0.187 inches. The 2.0-inch overall length and 0.050-inch projection make it well-suited for shallow-bore applications where reach and rigidity must be balanced. It is appropriate for use in CNC turning centers and manual lathes equipped with collet or drill chuck tooling systems. Typical applications include hydraulic components, pneumatic fittings, and precision mechanical assemblies requiring internal snap-ring seats.

Key Features

• Submicron-grade solid carbide construction for hardness and wear resistance in small-bore grooving
• 0.0305-inch groove width for precise retaining ring seat cutting
• 3/16-inch shank diameter compatible with standard collet systems
• 0.050-inch projection suited for controlled depth grooving
• Minimum hole diameter of 0.187 inches enables use in tight-bore applications
• 2.0-inch overall length provides rigidity and handling balance in turning operations

Compatibility

Designed as an OEM-style grooving tool for use in standard 3/16-inch collet or drill chuck toolholders on CNC turning centers and manual lathes performing internal retaining ring groove operations.

Installation Notes

This tool is installed by qualified machinists using appropriate collet toolholding systems matched to the 3/16-inch shank. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before changing or setting tooling. Verify projection and depth-of-cut settings against the workpiece drawing before initiating a cut. Do not exceed the maximum hole depth of 0.500 inches for this tool.
