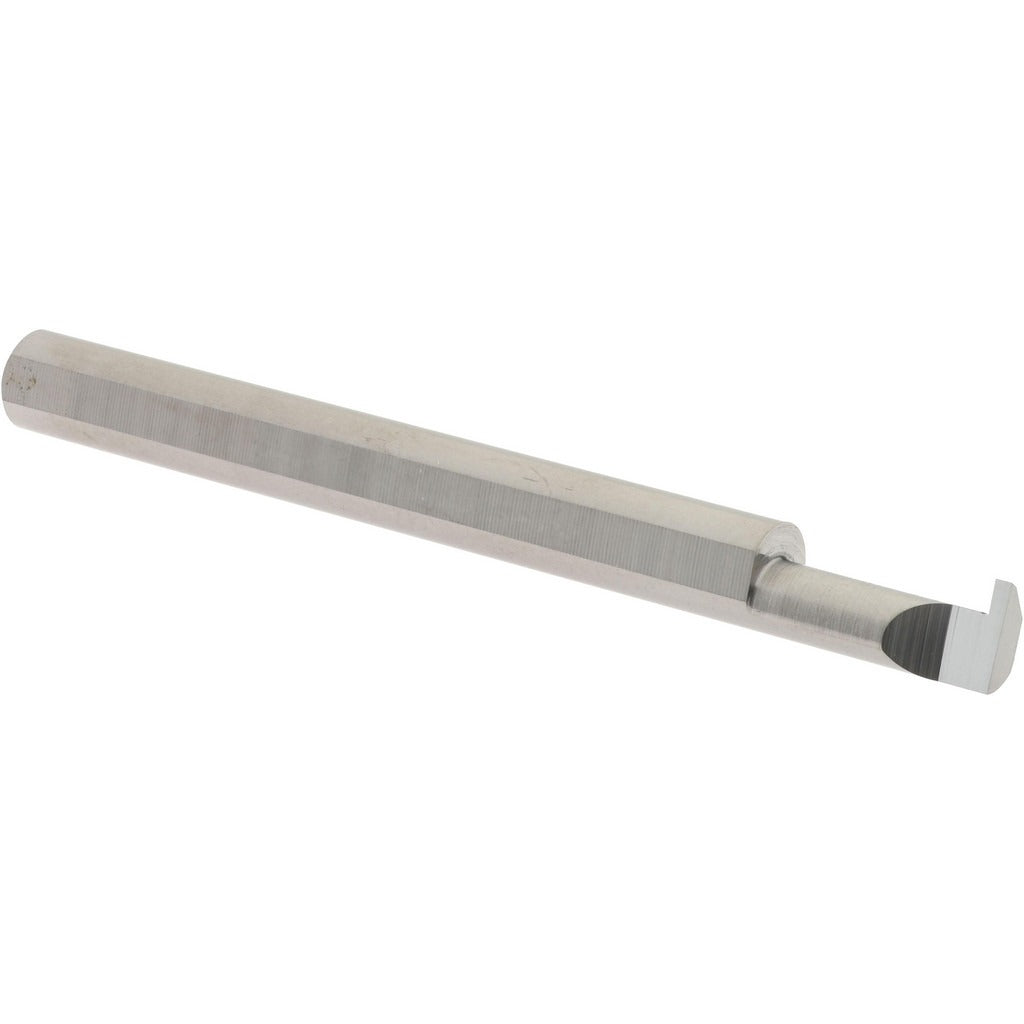

Accupro ACC-G030K-6 Retaining Ring Grooving Tool

Product Description

The ACCUPRO ACC-G030K-6 is a solid carbide retaining ring grooving tool designed for cutting internal retaining ring grooves in precision machining applications. Built from submicron-grade solid carbide, it delivers the hardness and edge retention needed for accurate, repeatable groove profiles in small-bore work. The tool features a 3/16-inch shank diameter and measures 2 inches in overall length. A 0.05-inch projection keeps the cutting edge positioned correctly relative to the workpiece, making it well suited for close-tolerance internal grooving where tool rigidity is critical.

This grooving tool is used in machining environments where retaining ring grooves must be cut into small-diameter bores. It is appropriate for use on CNC lathes, manual engine lathes, and similar turning equipment. The minimum bore diameter it can enter is 0.187 inches, with a maximum hole depth capacity of 0.375 inches, making it a practical choice for compact assemblies requiring internal snap-ring retention features. Machinists, tool-and-die technicians, and precision parts fabricators are the primary users of this type of tooling.

Key Features

• Solid submicron-grade carbide construction for hardness and wear resistance
• 3/16-inch shank diameter for compatibility with standard small-bore tool holders
• 0.0305-inch groove width sized for retaining ring groove standards
• 0.05-inch projection for controlled cutting depth positioning
• Minimum bore entry of 0.187 inches suits compact workpiece bores
• Maximum hole depth of 0.375 inches supports typical snap-ring groove locations

Compatibility

Designed as an OEM-style internal retaining ring grooving tool for use in standard small-bore turning and grooving applications requiring a 3/16-inch shank.

Installation Notes

This tool is installed and operated by machinists and tooling technicians on turning equipment. Secure the shank firmly in a compatible tool holder before operation and verify that the workpiece bore meets the minimum diameter requirement before entry. Inspect the carbide cutting edge for chips or wear before each use, as damaged carbide can fracture under load. Follow all machine guarding and workholding procedures per your shop safety standards.
