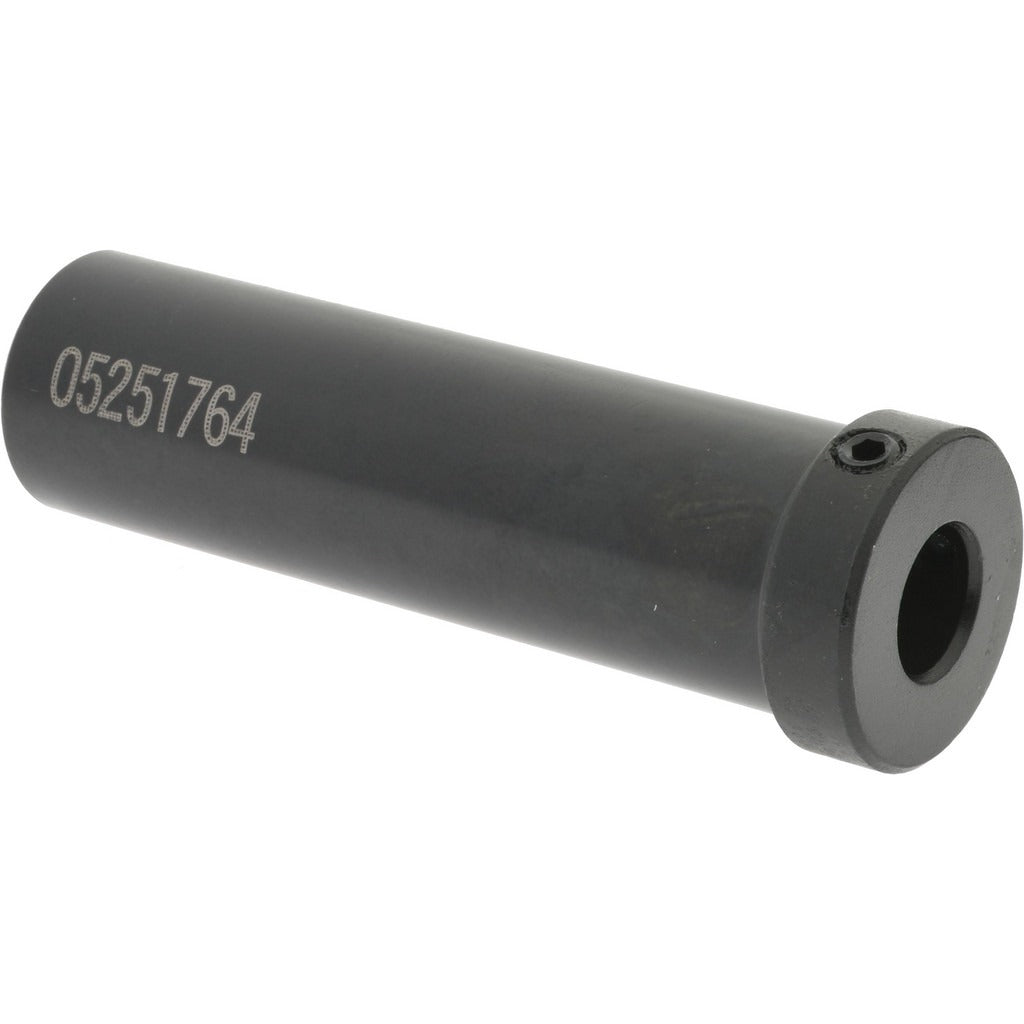

Accupro ACC-75-3/8 Boring Grooving Bar Holder

Product Description

The ACCUPRO ACC-75-3/8 is a boring and grooving bar holder designed for use with boring bars in metal cutting and machining applications. It accepts bars with a 3/8 inch inner diameter and seats within a 3/4 inch outer diameter bore. The overall length measures 2-3/4 inches, with a head diameter of 0.88 inches. Featuring two lock-down screws for secure bar retention, this holder belongs to the Series DH line. It is installed by machinists and tool-room technicians working with lathes, boring mills, or CNC turning centers where precise bar positioning and rigid clamping are required.

This bar holder is suited for both production and job-shop environments where boring and grooving operations are performed on metal workpieces. The 3/8 inch ID makes it compatible with standard-shank boring bars of that diameter. The compact head size and 2-3/4 inch overall length allow it to fit in applications with limited clearance. It is a practical choice for shops running small-diameter internal operations that demand repeatable tooling setups.

Key Features

• 3/8 inch inner diameter accepts standard boring bar shanks of that size
• 3/4 inch outer diameter for seating in compatible tool blocks or turrets
• 2-3/4 inch overall length suits installations with limited axial clearance
• 0.88 inch head diameter for compact fitment in tight setups
• Two lock-down screws provide secure, rigid bar retention during cutting
• Series DH designation for consistent cross-referencing within the product line

Compatibility

Designed as a Series DH boring and grooving bar holder for use with 3/8 inch shank boring bars in compatible tool blocks, turrets, or holders.

Installation Notes

Installation is performed by qualified machinists or tool-room personnel. Disengage and lock out the machine before changing or adjusting tooling. Use the two lock-down screws to clamp the boring bar firmly before resuming operation. Verify that the holder is properly seated in the turret or tool block and that all fasteners are tightened to the machine manufacturer's specified torque before initiating a cutting pass.
