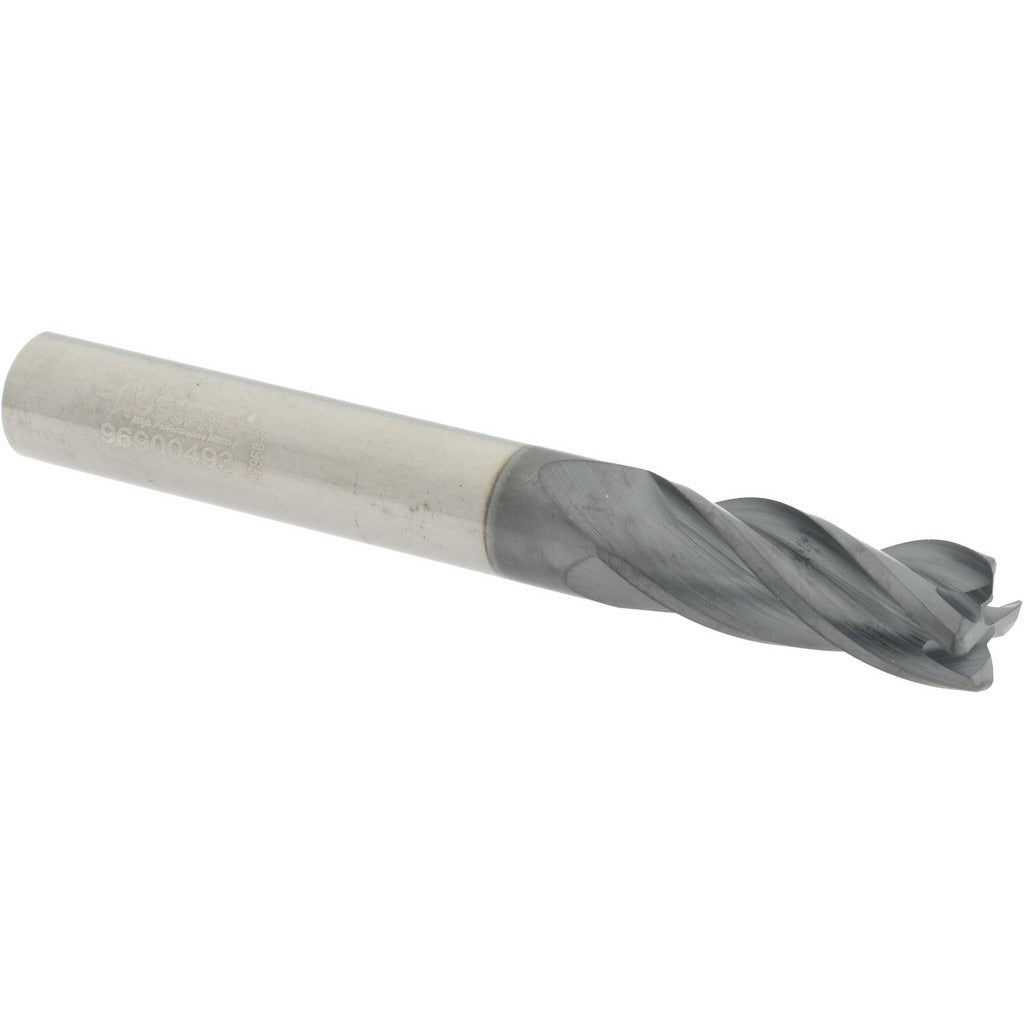

Accupro 95172651 Corner Radius End Mill 5/16 in 4 Flute

Product Description

The ACCUPRO 95172651 is a solid carbide corner radius end mill designed for precision milling in ferrous and hardened workpiece materials. The tool features a 5/16 inch (0.3125 inch) diameter with a 0.0300 inch corner radius, a 13/16 inch (0.8125 inch) length of cut, and a 2.5 inch overall length. The AlCrTiN PVD coating provides thermal resistance and wear protection suited to high-speed and dry machining conditions. Four flutes with a variable index and variable helix geometry reduce chatter and improve chip evacuation. This end mill is installed and run by machinists and CNC programmers in job shop, production, and toolroom environments.

This end mill is suited for slotting, profiling, and finishing operations where a controlled corner radius is required to reduce stress concentration in milled features. The centercutting design allows plunge entry. The VS Series geometry is intended for general-purpose to high-performance applications in steel, stainless steel, and similar materials. Its 5/16 inch straight-cylindrical shank fits standard collet chucks and end mill holders used on vertical and horizontal machining centers.

Key Features

• AlCrTiN PVD coating for heat resistance and extended tool life in ferrous materials
• Variable index and variable helix flute geometry for reduced vibration and chatter
• 0.0300 inch corner radius reduces edge chipping and part stress concentration
• Centercutting construction allows direct plunge and ramp entry
• Micrograin solid carbide substrate for rigidity and edge retention
• Right-hand cut, right-hand spiral flute direction for standard spindle rotation

Compatibility

Designed as an OEM-style replacement or direct-fit tooling option for standard 5/16 inch collet chucks, shrink-fit holders, and end mill holders on CNC vertical and horizontal machining centers.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before changing tooling. Seat the shank fully in the holder to the recommended gauge line and torque the retention hardware per the holder manufacturer specifications. Verify runout at the cutting diameter before beginning production cuts.
