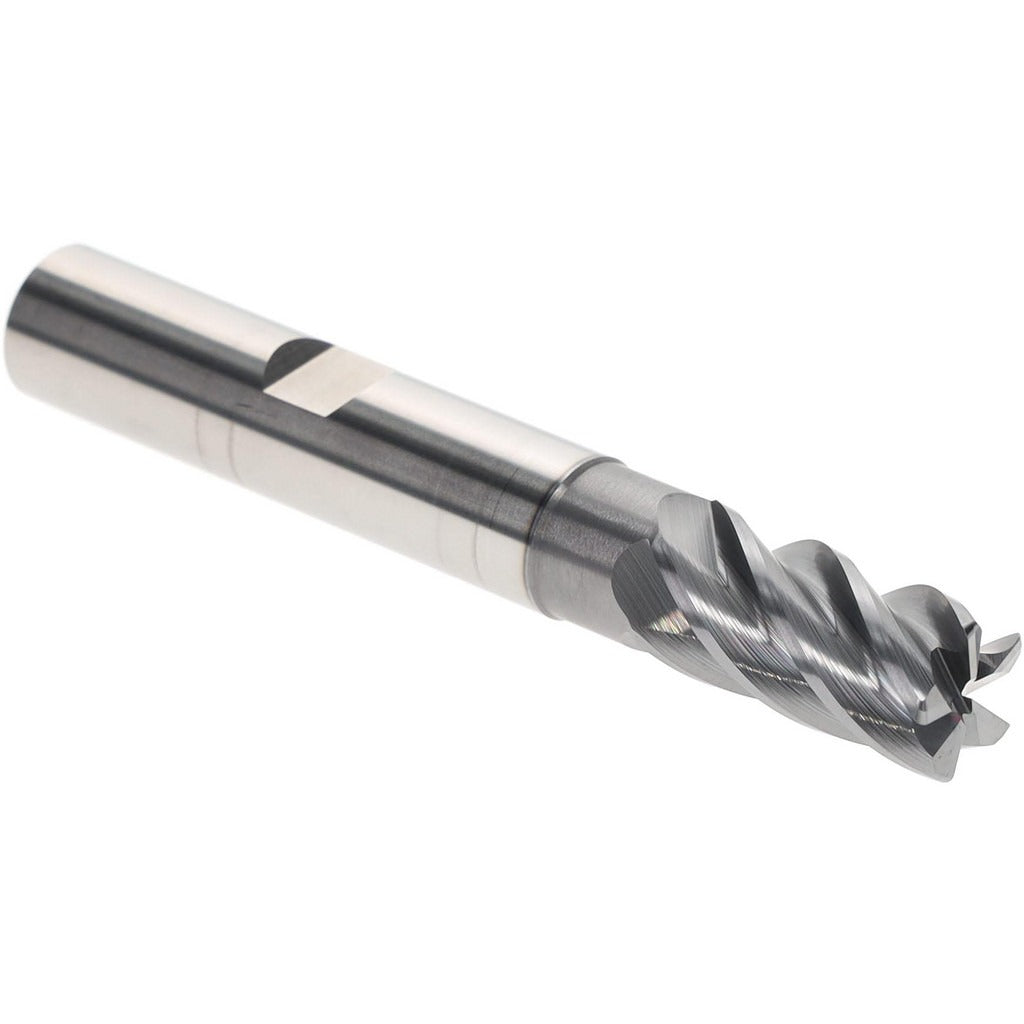

Accupro 95172625 Corner Radius End Mill 1/2 in 5 Flute

Product Description

The ACCUPRO 95172625 is a single-end corner radius end mill designed for precision milling in demanding metalworking applications. Built from ultra-fine micrograin solid carbide and coated with AlCrTiN, it delivers high wear resistance and thermal stability during aggressive cutting operations. The 0.0300-inch corner radius protects the cutting edge from chipping while reducing stress concentrations in milled features. With a 38-degree helix angle, 5-flute design, and right-hand cut and flute direction, this tool is engineered for high-feed finishing and semi-finishing in hardened materials. It is centercutting and extended reach capable, making it suitable for plunge entries and deep-feature work on CNC machining centers.

This end mill is used in precision machine shops, toolrooms, and production environments where tight tolerances and surface finish quality are required. The Smart-Weldon shank type ensures secure tool holding in compatible toolholders. With a 1-inch length of cut and 3.5-inch overall length, it is well suited for medium-depth pocketing, contouring, and profile milling on ferrous and hardened alloys. Installation and operation are performed by skilled machinists and CNC operators on vertical and horizontal machining centers.

Key Features

• Ultra-fine micrograin solid carbide construction for rigidity and long tool life
• AlCrTiN coating provides high-temperature oxidation resistance and reduced tool wear
• 5-flute geometry maximizes material removal rate while maintaining surface finish
• 0.0300-inch corner radius reduces edge chipping and workpiece stress
• 38-degree helix angle promotes smooth chip evacuation and stable cutting
• Centercutting design allows plunge milling and ramp entry operations
• Smart-Weldon shank type for secure, repeatable tool holding

Compatibility

Designed for use in CNC machining centers with compatible Smart-Weldon toolholders accepting a 1/2-inch shank diameter. Suitable for milling ferrous metals, hardened steels, and similar materials where AlCrTiN coating performance is indicated.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the machine spindle is fully stopped and the toolholder is clean and undamaged before mounting. Verify runout against the TIR maximum specification after tool installation using a dial indicator. Follow the toolholder manufacturer torque guidelines and confirm shank engagement depth meets minimum recommendations before initiating any cut.
