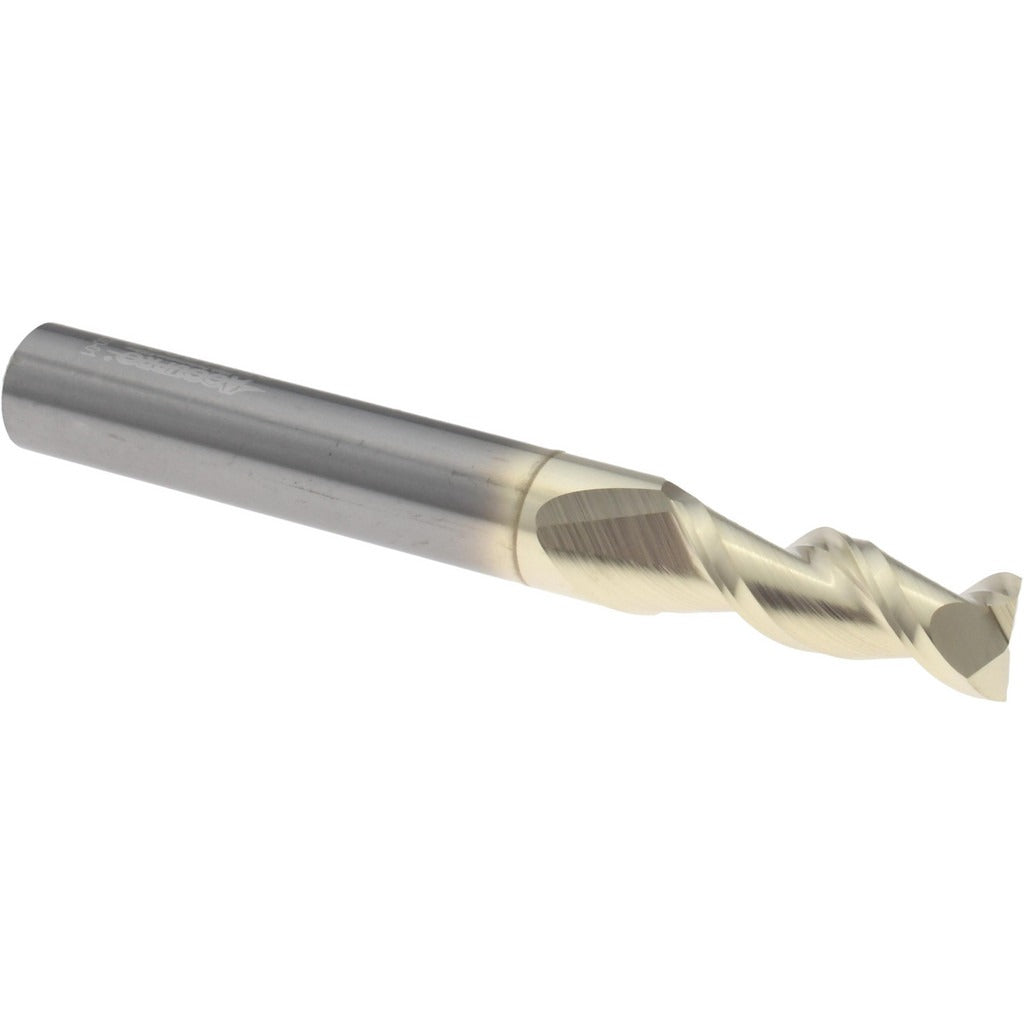

Accupro 95171395 Square End Mill 7mm 2 Flute Carbide Zrn

Product Description

The ACCUPRO 95171395 is a solid carbide square end mill designed for precision milling operations in metalworking and machining environments. With a 7 mm (0.2756 inch) cutting diameter and a 2-flute geometry, this tool delivers efficient chip evacuation and clean square-shoulder cuts. The 45-degree helix angle reduces cutting forces and improves surface finish across a range of materials. A zirconium nitride (ZrN) coating adds surface hardness and thermal resistance, extending tool life in demanding applications. The micrograin carbide substrate provides the rigidity needed for tight-tolerance work. This end mill is installed and operated by machinists and CNC programmers in production and job-shop environments.

This end mill is suited for milling slots, pockets, and profiles in ferrous and non-ferrous metals. It is a single-end, right-hand cutting tool with right-hand flute direction, making it compatible with standard CNC machining centers and manual knee mills. The regular-length configuration and 19 mm length of cut handle common milling depths without extended-reach deflection concerns. The 8 mm shank diameter fits standard collets and end mill holders used in typical vertical machining center setups.

Key Features

• 7 mm cutting diameter with a mill diameter tolerance of +0.000 / -0.002 inches for consistent sizing
• 2-flute spiral geometry promotes efficient chip removal and reduces heat buildup
• 45-degree helix angle lowers cutting forces and improves surface finish quality
• ZrN coating increases surface hardness and extends tool life in abrasive materials
• Micrograin solid carbide substrate provides rigidity and wear resistance
• Centercutting design allows plunge milling operations

Compatibility

Designed for use in standard CNC machining centers and manual mills equipped with collets or end mill holders accepting an 8 mm shank diameter.

Installation Notes

This end mill is installed and run by machinists following standard toolholding procedures. Ensure the machine spindle is fully powered down and locked out before changing tooling. Seat the shank fully in the collet or holder and torque the retention hardware per the toolholder manufacturer specifications. Verify runout with a dial indicator before production cuts to maintain tolerance and extend tool life.
