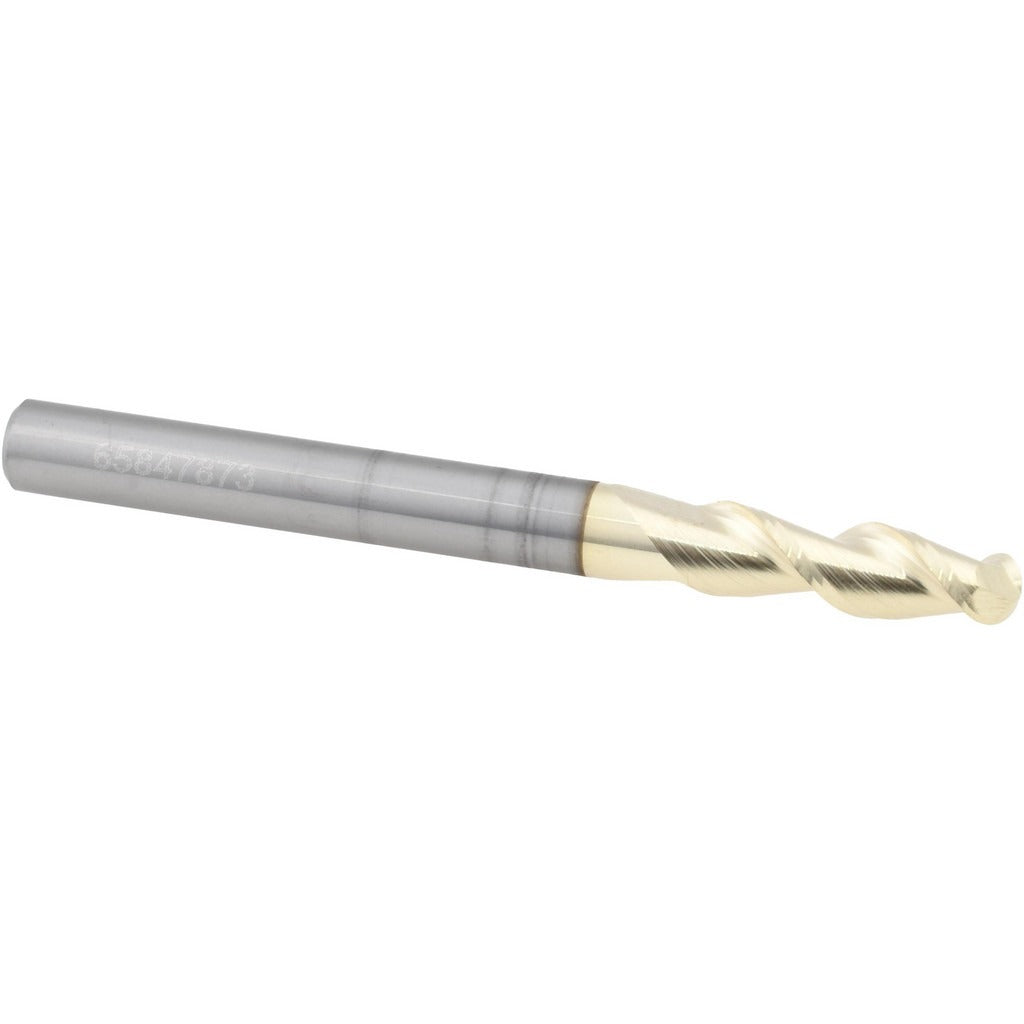

Accupro 95171374 Ball End Mill 6mm 2 Flute Solid Carbide Zrn

Product Description

The ACCUPRO 95171374 is a single-end ball end mill engineered for precision milling in demanding machining environments. Built from micrograin solid carbide, it delivers the hardness and edge retention needed for high-speed finishing and profiling passes. The 6 mm cutting diameter pairs with a 19 mm length of cut, giving machinists a capable reach for contoured surfaces and 3D profiles. A ZrN (zirconium nitride) coating reduces friction and extends tool life in non-ferrous and hardened material applications. The 45-degree helix angle promotes efficient chip evacuation and smooth cutting action across a range of workpiece materials.

This end mill is suited for CNC machining centers handling die and mold work, complex contour milling, and finishing operations where a ball nose geometry is required. The 6 mm shank diameter matches the cutting diameter for straightforward toolholder setup, and the 65 mm overall length fits standard collet chucks and shrink-fit holders used in vertical and horizontal machining center setups.

Key Features

• Micrograin solid carbide construction for rigidity and extended edge life
• ZrN coating reduces heat buildup and improves tool wear resistance
• 45-degree right-hand helix for aggressive chip evacuation
• Ball nose geometry for 3D profiling, contouring, and finishing passes
• Single-end design with right-hand cutting direction
• Matched 6 mm cutting and shank diameter for simplified toolholder selection

Compatibility

Designed as an OEM-style replacement or direct-use solid carbide ball end mill for CNC machining centers accepting 6 mm shank toolholders, including collet chucks and shrink-fit systems.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the toolholder and spindle are clean and free of debris before seating the shank. Apply appropriate torque to collet nuts per toolholder manufacturer specifications, and confirm runout with a dial indicator before running the first cut. Verify spindle speed and feed parameters against the material being machined prior to operation.
