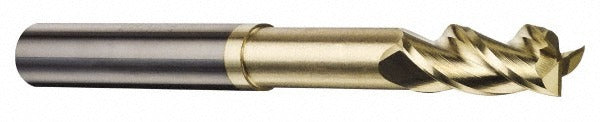

Accupro 95171109 Corner Radius End Mill 5/8 in Zrn

Product Description

The ACCUPRO 95171109 is a solid carbide corner radius end mill designed for precision milling in ferrous and non-ferrous materials. It carries a ZrN (zirconium nitride) coating that improves surface hardness and wear resistance, extending tool life in high-speed applications. The mill features a 0.625 inch diameter, a 0.75 inch length of cut, a 37-degree helix angle, and a 0.060 inch corner radius. The extended reach design, with a 3.375 inch reach length and 6 inch overall length, allows access to deep pockets and tall workpiece features. Centercutting geometry permits plunge entry. This tool is intended for use by machinists and toolroom professionals working on CNC machining centers and manual mills.

This end mill is suited for milling operations that require a blended corner radius to reduce stress concentrations on part features. The extended reach makes it appropriate for deep-pocket finishing and semifinishing passes where standard-reach tools cannot reach the floor. The single-end, right-hand cutting, right-hand flute configuration is standard for conventional CNC vertical milling setups. The micrograin solid carbide substrate supports tight tolerances and consistent performance across production runs.

Key Features

• 0.625 inch mill diameter with a mill diameter tolerance of +0.000000 to -0.003000 inches
• ZrN coating for improved wear resistance and extended tool life
• 0.060 inch corner radius with a tolerance of +0.00200 to -0.00200 inches
• Extended reach: 3.375 inch reach length, 6 inch overall length
• Centercutting design allows direct plunge entry into workpiece material
• 3-flute, right-hand spiral, micrograin solid carbide construction

Compatibility

Designed as a direct-fit tooling option for CNC machining centers and milling machines accepting a 5/8 inch shank diameter. Shank diameter tolerance is -0.0001 to -0.0004 inches for positive chuck engagement.

Installation Notes

Installation and tool changes must be performed with the machine spindle fully stopped and energy isolated per OSHA lockout/tagout procedures. Use an appropriate collet or end mill holder rated for the 5/8 inch shank diameter and verify runout with a dial indicator before production. Do not exceed the tool manufacturer's recommended speeds and feeds for the coating and substrate type. Inspect the corner radius and cutting edges for chipping before each use.
