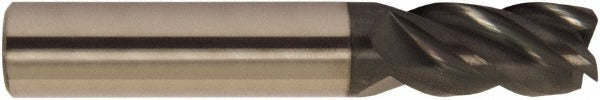

Accupro 95169907 Corner Radius End Mill 3/4 in 4 Flute

Product Description

The ACCUPRO 95169907 is a solid carbide corner radius end mill designed for precision milling operations in ferrous and hardened materials. It features a 3/4 inch diameter, a 1-1/4 inch length of cut, and a 4-inch overall length. The AlCrTiN coating provides heat and oxidation resistance at elevated cutting speeds. With four flutes, a 38-degree helix angle, and a variable index geometry, this tool delivers improved surface finish and reduced chatter in demanding applications. It is center-cutting, allowing direct plunge entry. The micrograin carbide substrate supports both roughing and finishing passes without edge deterioration.

This end mill is suited for milling operations in machining centers and CNC mills across job shops, tool rooms, and production environments. The corner radius end geometry — with a 0.120 inch radius — reduces stress concentrations at the corner, extending tool life in slotting, profiling, and pocketing operations. The straight-cylindrical shank at 3/4 inch diameter seats directly in standard ER or side-lock toolholders. Right-hand cutting direction and right-hand flute spiral are standard for conventional and climb milling setups.

Key Features

• AlCrTiN coating for high-temperature wear resistance in ferrous and hardened materials
• Solid micrograin carbide substrate for rigidity and edge retention
• 0.120 inch corner radius reduces corner chipping and extends tool life
• Variable index flute spacing minimizes harmonic vibration and chatter
• Center-cutting design allows direct plunge milling without a pre-drilled entry
• 38-degree helix angle promotes efficient chip evacuation in deep pockets

Compatibility

Designed as a direct-fit replacement or new-installation tool for CNC machining centers and manual knee mills using standard 3/4 inch straight-cylindrical toolholders, including ER collet chucks and side-lock holders.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Ensure the spindle is fully stopped and locked out before inserting or removing the tool from the holder. Confirm the shank is fully seated and the collet nut or set screw is torqued to the toolholder specification before engaging the spindle. Do not exceed the tool manufacturer's recommended speed and feed parameters for the workpiece material and coating grade.
