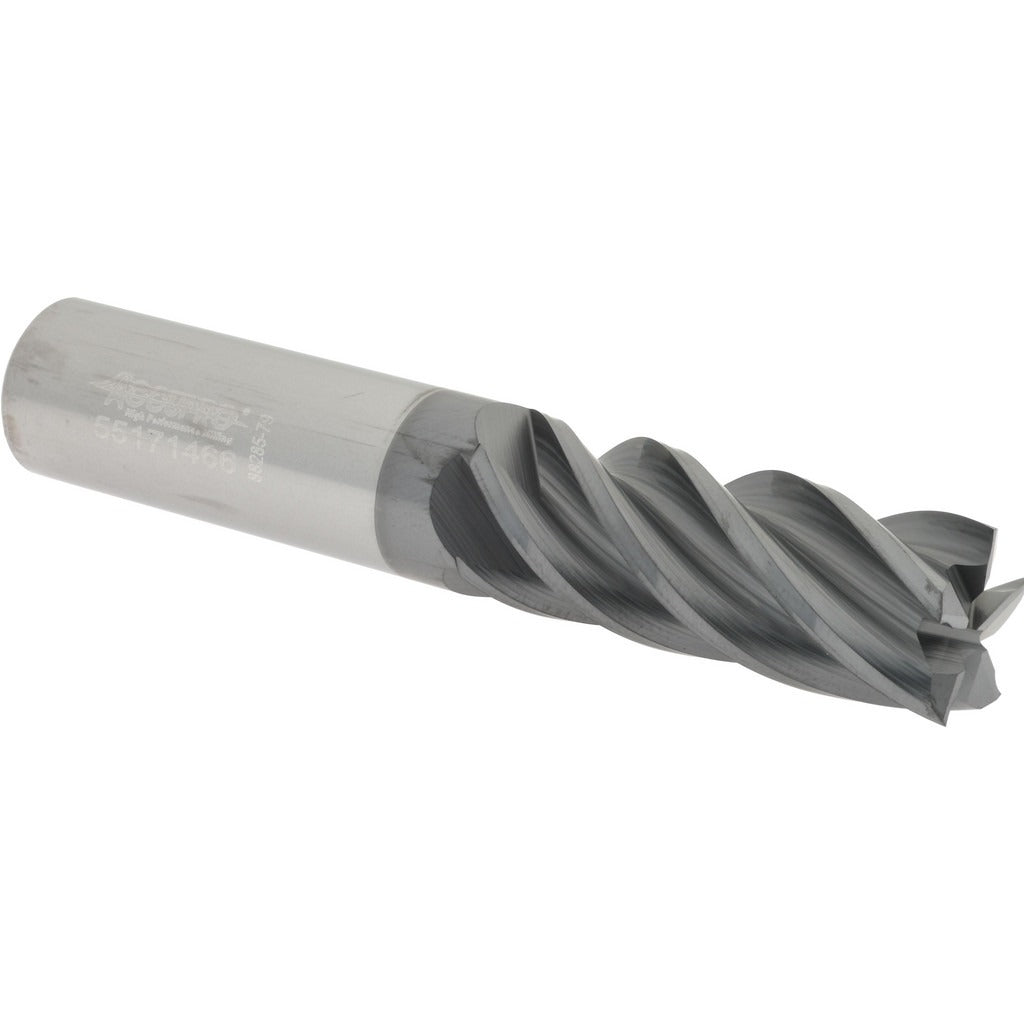

Accupro 95168777 Square End Mill 5/8 in 5 Flute Carbide

Product Description

The ACCUPRO 95168777 is a solid carbide square end mill designed for high-performance milling in demanding machining environments. It features a 5/8-inch diameter cutting profile with 5 flutes and a variable helix geometry that helps reduce harmonic vibration and chatter during cut. The nACRo coating provides enhanced heat and wear resistance, extending tool life in difficult materials. With a 1-5/8-inch length of cut and a 3-1/2-inch overall length, this end mill suits a wide range of profile, slotting, and peripheral milling operations. It is installed and operated by machinists and CNC programmers in job shop and production environments.

This end mill is suited for use in vertical and horizontal machining centers where high surface quality and dimensional accuracy are required. The right-hand cutting and right-hand flute direction make it compatible with standard spindle configurations. The centercutting capability allows for plunge entry in addition to conventional side milling. It is applicable across a range of ferrous and non-ferrous workpiece materials where a premium carbide tool with advanced coating is specified.

Key Features

• 5/8-inch cutting diameter with mill diameter tolerance of +0.000/-0.002 inches for precise fitment
• 5-flute variable helix design reduces vibration and improves surface finish
• nACRo coating increases heat resistance and extends tool life in abrasive materials
• Centercutting geometry allows plunge milling entry
• Micrograin solid carbide construction provides rigidity and edge retention
• Single-end, right-hand cut and flute direction for standard CNC spindle use

Compatibility

Designed as an OEM-style solid carbide square end mill suitable for standard 5/8-inch collet or end mill holder tooling systems used in CNC machining centers and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist following machine tool manufacturer guidelines. Ensure the spindle is fully powered off and locked before changing tooling. Seat the shank fully into the collet or tool holder and torque the retention hardware per the holder manufacturer specification. Verify runout with a dial indicator before commencing a cut.
