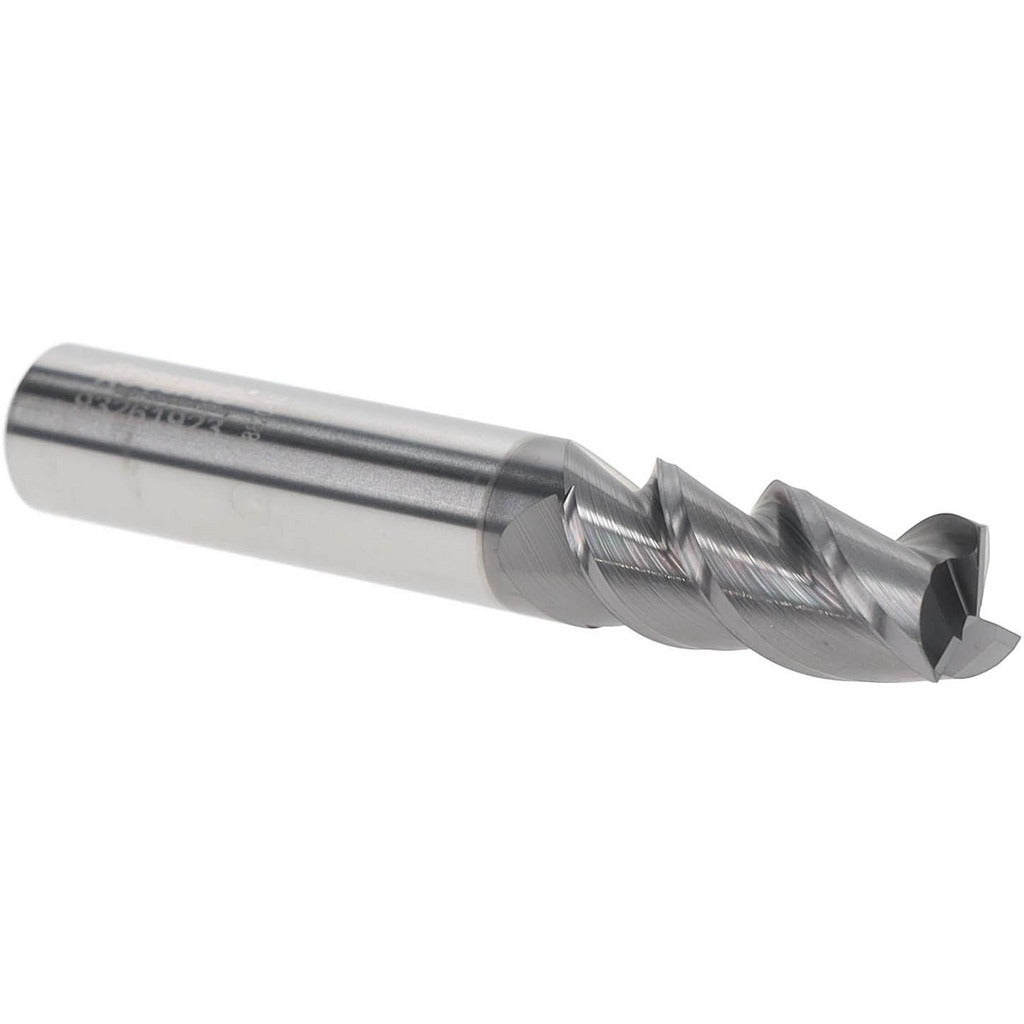

Accupro 95168720 Square End Mill 7/16 in 3 Flute Carbide

Product Description

The ACCUPRO 95168720 is a solid carbide square end mill designed for precision milling in demanding shop environments. With a 7/16 inch (0.4375 inch) diameter and a 1 inch length of cut, this three-flute tool delivers clean, accurate material removal in a wide range of metal and composite workpiece materials. The AlTiN coating provides high heat resistance and extended tool life, making it well suited for dry or semi-dry cutting applications in ferrous metals and hardened materials. The micrograin carbide substrate adds toughness and edge retention. This is a single-end, right-hand cut tool with a spiral flute geometry.

This end mill is used in CNC milling and manual vertical mill operations across job shops, tool rooms, and production machining environments. The regular-length geometry fits standard tool holders and collet chucks without extended-reach adapters. With center-cutting capability, it can be used for plunge entry as well as peripheral and slot milling. The 2-3/4 inch overall length and 7/16 inch shank diameter make it compatible with ER collet systems and standard end mill holders commonly found in production and prototype machining setups.

Key Features

• AlTiN coating for high-temperature resistance and extended tool life in ferrous and hardened materials
• Micrograin solid carbide substrate for rigidity and sharp edge retention
• Three-flute spiral design balances chip evacuation and surface finish
• Center-cutting geometry allows direct plunge entry into workpiece
• Right-hand cut and right-hand flute direction for standard spindle operation
• Regular length profile fits standard collet chucks and end mill holders without modification

Compatibility

Designed as an OEM-style replacement or direct-use solid carbide end mill for standard milling applications requiring a 7/16 inch diameter, 7/16 inch shank, three-flute square end geometry.

Installation Notes

Installation is performed by machinists in CNC or manual milling setups. The tool should be secured in a clean, properly sized collet or end mill holder and torqued to the holder manufacturer specification. Inspect the shank and collet bore for chips or wear before seating. Always confirm spindle is fully stopped and machine is in a safe state before changing tooling.
