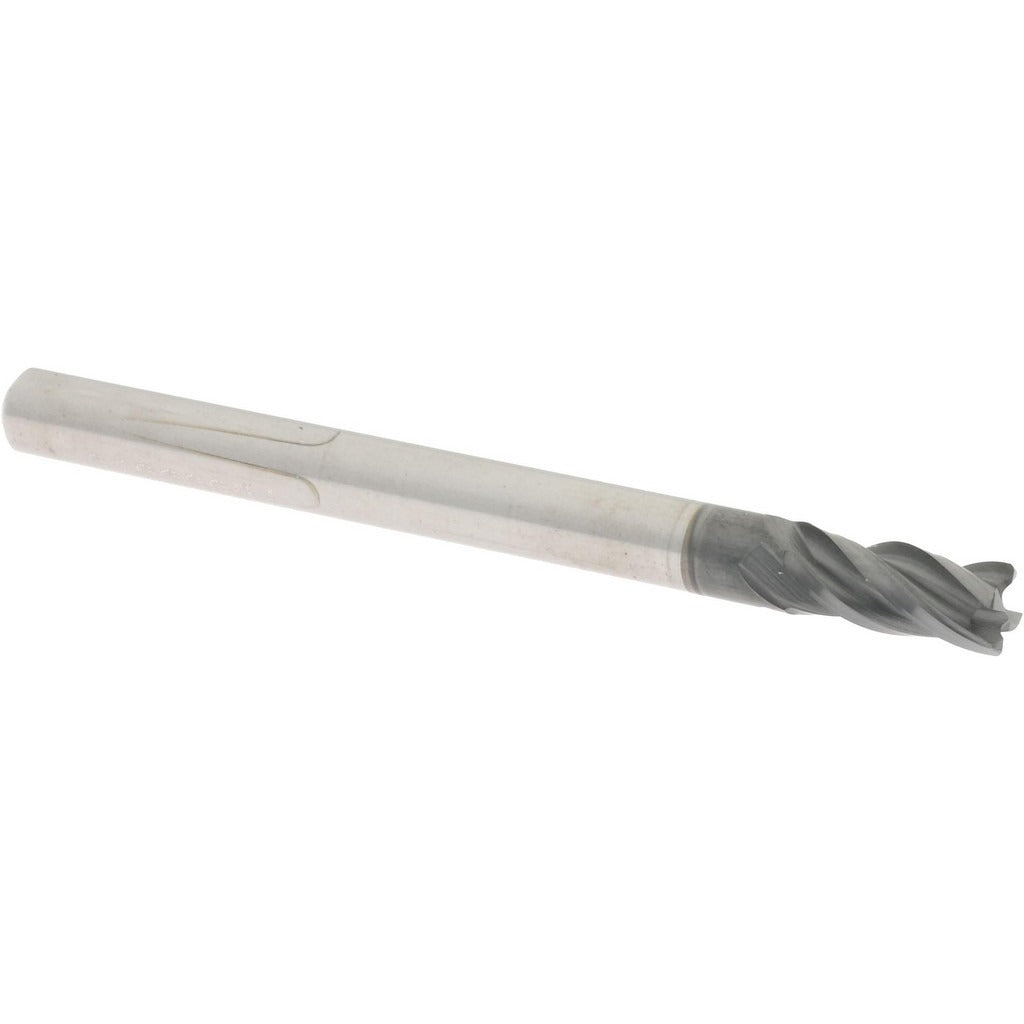

Accupro 95168610 Corner Radius End Mill 1/8 in 4 Flute

Product Description

The ACCUPRO 95168610 is a solid carbide corner radius end mill designed for precision milling operations in metalworking and machining applications. It features a 1/8 inch cutting diameter with a 0.0100 inch corner radius, four flutes in a right-hand spiral configuration, and an AlTiN (aluminum titanium nitride) coating that extends tool life under high-heat cutting conditions. The 1/4 inch length of cut and stub-length geometry keep the tool rigid, minimizing deflection during finishing and semi-finishing passes. This end mill is center cutting, allowing direct plunge entry into the workpiece.

This tool is suited for CNC machining centers and manual mills running ferrous and non-ferrous materials where a radius edge break is required on a finished part. The stub-length configuration makes it a practical choice for die and mold work, medical component machining, and tight-tolerance contouring where a shorter reach reduces chatter. The variable helix flute design helps manage chip evacuation and reduces harmonic vibration during cutting. It is intended for use by machinists and tool-and-die professionals working in job shop, production, or precision manufacturing environments.

Key Features

• 0.0100 inch corner radius provides a consistent, repeatable edge break on finished surfaces
• AlTiN coating improves heat resistance and wear life in hard and abrasive materials
• Four-flute, right-hand spiral geometry balances chip load and surface finish quality
• Variable helix design reduces vibration and chatter during contouring passes
• Center cutting end allows direct plunge milling without a pre-drilled entry point
• Micrograin solid carbide substrate supports tight dimensional tolerances throughout tool life

Compatibility

Designed as an OEM-style solid carbide corner radius end mill for use in standard 1/8 inch collet or end mill holder setups on CNC machining centers and manual knee mills.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer's collet torque and runout specifications. Ensure the spindle and tool holder are clean and free of chips before seating the shank. Confirm shank engagement depth meets the tool holder manufacturer's minimum requirements before running. Inspect the cutting edges under magnification before use and do not run a chipped or damaged tool.
