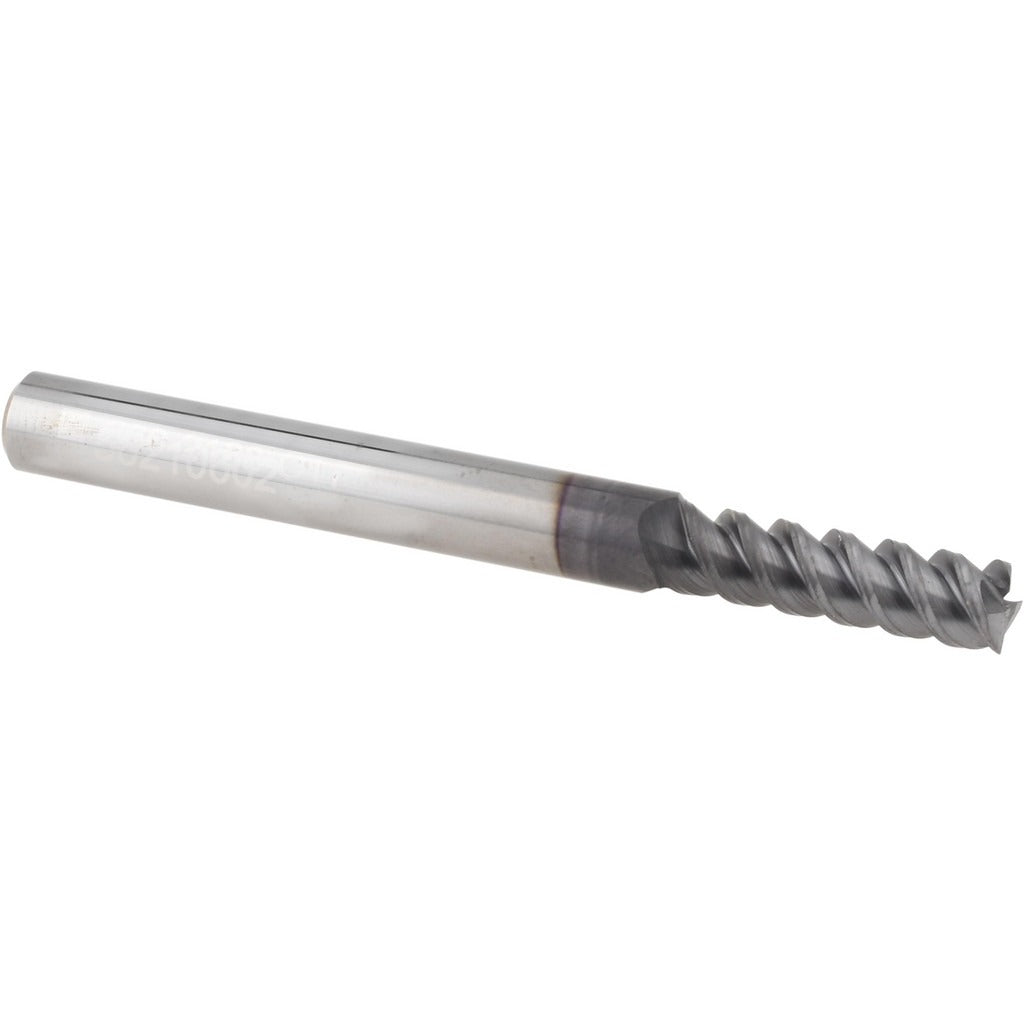

Accupro 95168594 Square End Mill 7/32 in 3 Flute Carbide

Product Description

The ACCUPRO 95168594 is a solid carbide square end mill designed for precision milling of ferrous and hard materials in machining centers and CNC mills. It features a 7/32 inch (0.2188 inch) cutting diameter and a 3/4 inch length of cut, with a 60-degree helix angle that promotes aggressive chip evacuation and reduced heat buildup. The AlTiN coating extends tool life in high-temperature cutting environments. With three flutes and a right-hand spiral flute direction, this end mill is suited for finishing and semi-finishing passes where surface quality and dimensional accuracy matter. Machinists and tool-and-die professionals are the primary installers and users of this tool.

This end mill is used in general-purpose milling applications across job shops, production machining operations, and tool rooms. It is well suited for slotting, profiling, and peripheral milling in steel, stainless steel, cast iron, and high-temperature alloys where AlTiN coating performance is an advantage. The 1/4 inch shank diameter fits standard collets and end mill holders commonly found on vertical machining centers and CNC routers. Its regular length designation and single-end configuration make it a straightforward drop-in for most 1/4 inch toolholding setups.

Key Features

• Solid micrograin carbide construction for rigidity and wear resistance in hard materials
• 60-degree helix angle promotes efficient chip flow and reduces cutting forces
• AlTiN coating provides oxidation resistance and extended tool life at elevated cutting temperatures
• Three flutes balance chip clearance with surface finish quality
• Centercutting geometry allows plunge entry into workpiece material
• Right-hand cut and right-hand flute configuration for standard CNC spindle use

Compatibility

Designed for use in standard 1/4 inch collets and end mill holders on CNC vertical machining centers, manual knee mills, and CNC routers. No specific model compatibility was provided in the product data.

Installation Notes

This tool is installed and operated by machinists and CNC programmers following standard toolholding procedures. Ensure the machine spindle is fully stopped and locked out before inserting or removing the end mill from the collet or holder. Verify shank runout is within tolerance after tightening to avoid premature tool wear or chatter. Follow the toolholder manufacturer torque and clamping specifications for the collet nut.
