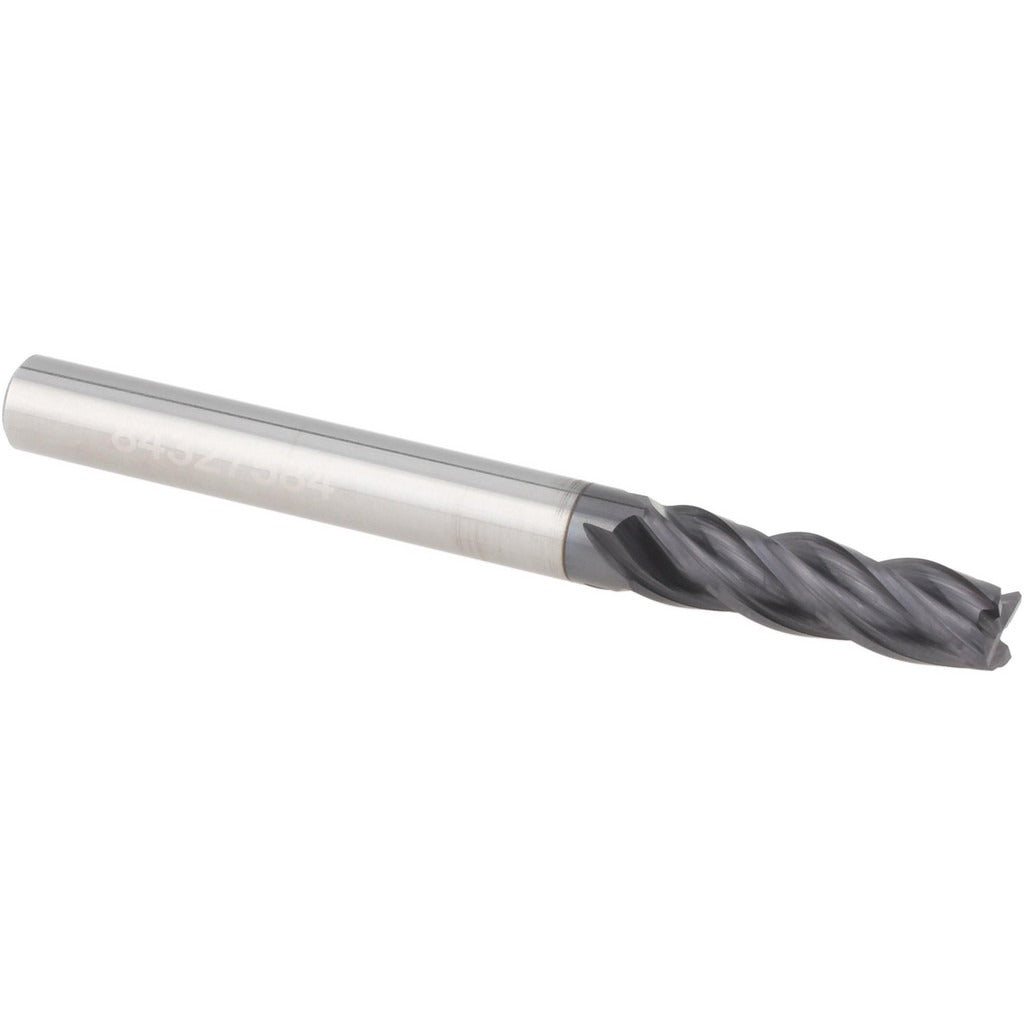

Accupro 95168562 Corner Chamfer End Mill 3/16 in 4 Flute

Product Description

The ACCUPRO 95168562 is a solid carbide corner chamfer end mill designed for precision chamfering and edge-breaking operations on ferrous and non-ferrous materials. It measures 3/16 inches in diameter with a 5/8 inches length of cut and a 2 inches overall length. The 4-flute, right-hand spiral design features a variable helix and a 45-degree chamfer angle with a 0.0100 inch chamfer width. An AlTiN coating provides thermal resistance and extended tool life in high-speed and dry-cutting applications. Centercutting geometry allows direct plunge entry. Machinists and CNC operators in precision manufacturing and job shop environments are the primary users.

This end mill is suited for chamfering, edge preparation, and deburring on machined components in both manual milling and CNC machining center applications. The regular-length flute type and single-end configuration make it well suited for standard-reach chamfer work on parts where consistent 45-degree edge profiles are required. The micrograin carbide substrate and AlTiN coating support use in hardened steels, stainless, titanium, and cast iron at elevated cutting speeds.

Key Features

• 45-degree chamfer angle with 0.0100 inch chamfer width for consistent edge profiles
• AlTiN coating for high-heat resistance and extended tool life in dry or high-speed cutting
• Variable helix spiral flutes reduce chatter and improve surface finish
• Centercutting geometry allows direct plunge entry
• Micrograin solid carbide substrate for rigidity and wear resistance
• Right-hand cut, right-hand flute direction for standard CNC spindle use

Compatibility

Designed as a standard-shank corner chamfer end mill compatible with 3/16 inch collets and tool holders in CNC machining centers and manual knee mills accepting straight-shank tooling.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Seat the shank fully in the collet or tool holder and torque to the tool holder manufacturer specification. Verify runout with a dial indicator before beginning the cut, as excessive runout accelerates wear and degrades chamfer consistency.
