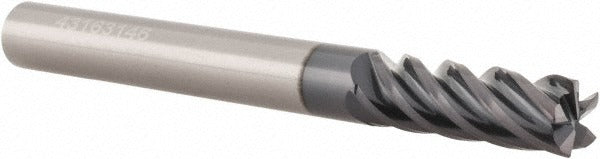

Accupro 95168550 Corner Radius End Mill 5/8 in 5 Flute

Product Description

The ACCUPRO 95168550 is a single-end corner radius end mill ground from micrograin solid carbide and coated with AlTiN for high-heat and high-hardness milling applications. It carries a 0.6250-inch mill diameter, a 0.0200-inch corner radius, and five flutes arranged in a variable-helix spiral geometry. The variable helix reduces chatter and harmonic vibration during aggressive cuts. This tool is centercutting, allowing direct plunge entry without a pre-drilled hole. It is intended for use by machinists and tooling professionals running CNC machining centers or manual knee mills.

This end mill is suited for finishing and semi-finishing operations in ferrous and non-ferrous materials where a tight corner radius and long tool life are required. The AlTiN coating performs well in dry or minimum-quantity lubrication cutting environments and in hardened steels, stainless, and heat-resistant alloys. The 1.6250-inch length of cut accommodates moderate depth-of-cut passes on mold details, pockets, and contoured surfaces. The 5/8-inch shank diameter fits standard ER and side-lock toolholders common on production machining centers.

Key Features

• Micrograin solid carbide substrate for rigidity and wear resistance
• AlTiN coating supports dry cutting and elevated cutting temperatures
• Variable helix flute geometry reduces vibration and chatter
• 0.0200-inch corner radius protects the cutting edge and produces consistent radius blends
• Centercutting design allows direct plunge milling
• Right-hand cut, right-hand flute direction for standard spindle rotation

Compatibility

Designed as a standard-shank replacement or production tooling option for CNC machining centers and manual mills accepting a 5/8-inch straight shank in ER collet, Weldon side-lock, or shrink-fit toolholders.

Installation Notes

Installation is performed by a machinist or tooling technician. Ensure the spindle is fully stopped and the machine is in a safe state before changing tooling. Seat the shank to the full recommended engagement depth in the toolholder and torque the retention mechanism to the toolholder manufacturer's specification. Verify runout with a dial indicator before beginning production cuts, as excessive runout will reduce edge life and corner radius accuracy.
