Accupro 95168465 Square End Mill 1 in 4 Flute Altin Carbide

Product Description

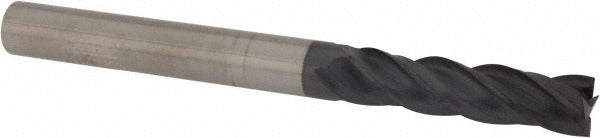

The ACCUPRO 95168465 is a solid carbide square end mill designed for high-performance material removal in precision machining applications. It features a 1 inch cutting diameter, a 3.25 inch length of cut, and a 6 inch overall length. The AlTiN (aluminum titanium nitride) coating provides heat resistance and extended tool life at elevated cutting speeds. A variable helix geometry reduces harmonic vibration during cutting, improving surface finish and chip evacuation. This end mill is built for machinists running production or prototype work on CNC milling equipment.

This end mill is suited for milling steel, stainless steel, cast iron, and similar ferrous materials in both roughing and finishing operations. The long length of cut makes it appropriate for deep-pocket milling, side milling, and slotting where standard-reach tools cannot reach. It is a single-end, right-hand cutting, right-hand flute tool. Installation is handled by machinists and CNC setup personnel working with 1 inch collet chucks or end mill holders.

Key Features

• 1 inch cutting diameter with a matched 1 inch shank diameter for rigid tool holding
• 3.25 inch length of cut supports deep-pocket and extended-reach milling operations
• AlTiN coating improves heat resistance and extends tool life in ferrous materials
• Variable helix flute geometry reduces chatter and vibration during heavy cuts
• Micrograin solid carbide substrate provides hardness and wear resistance
• 4 flutes with right-hand spiral, centercutting capable, no chipbreaker

Compatibility

Designed for use in CNC milling machines with standard 1 inch collet chucks or end mill holders. Suitable for right-hand spindle rotation. Long-series length type per supplier classification.

Installation Notes

This tool is installed by machinists or CNC operators. Always power down and lock out the spindle before changing tooling. Use a properly sized and torqued end mill holder or collet chuck to secure the 1 inch shank. Inspect the tool and holder for runout before beginning a cut, as excessive runout accelerates wear and can damage the workpiece or tool.
