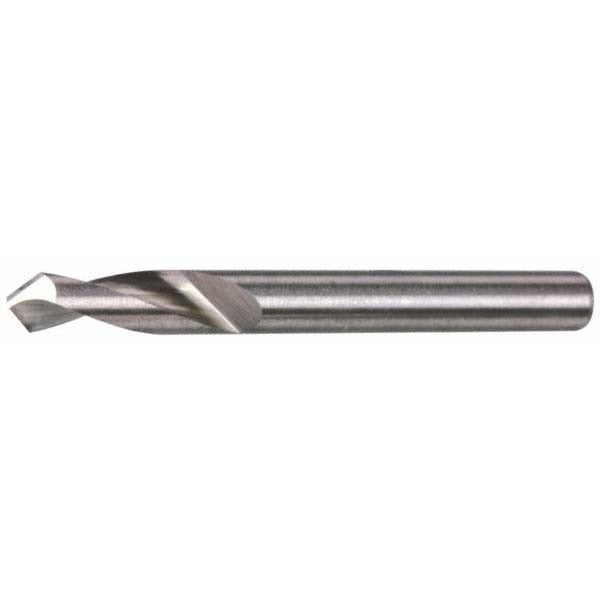

Accupro 89699102 Carbide Spotting Drill 60 Deg 10mm

Product Description

The ACCUPRO 89699102 is a solid carbide spotting drill designed to create accurate, centered starting points for follow-on drilling operations. It features a 60-degree drill point angle, a 10mm (0.3937 inches) cutting diameter, and a 70mm (2.756 inches) overall length. The bright, uncoated finish suits general-purpose machining applications where a coating is not required. With two spiral flutes and a right-hand cutting direction, the tool provides clean, consistent spot locations in a wide range of workpiece materials. Licensed machinists and toolroom technicians are the primary users of this drill in production and maintenance environments.

This spotting drill is intended for use in CNC machining centers, drill presses, and manual mills where precise hole location is critical before full-depth drilling. Its 25mm (0.9843 inches) flute length and 10mm straight-cylindrical shank make it compatible with standard ER collet chucks and hydraulic tool holders commonly found in job shop and production settings. The general-purpose tool performance rating makes it suitable for steel, aluminum, cast iron, and similar machinable materials.

Key Features

• 60-degree drill point angle for accurate spot location ahead of standard twist drills
• Solid carbide construction for rigidity and wear resistance in production use
• Bright, uncoated finish suitable for general-purpose machining without coating-related restrictions
• Two spiral flutes with right-hand cutting direction
• Straight-cylindrical shank compatible with standard collet and toolholder systems
• Single-ended design for straightforward tool changes

Compatibility

Designed as a general-purpose spotting drill for use with standard 10mm straight-cylindrical shank toolholders and collet systems in CNC and manual machining applications.

Installation Notes

Install the shank fully into a properly sized collet or toolholder and torque the retention mechanism per the toolholder manufacturer specifications before use. Verify spindle runout is within acceptable limits prior to spotting to maintain hole location accuracy. Follow the machine tool operator manual and applicable shop safety procedures when setting tool offsets and speeds. Inspect the cutting edges before each use and remove the tool from service if chipping or wear is observed.
