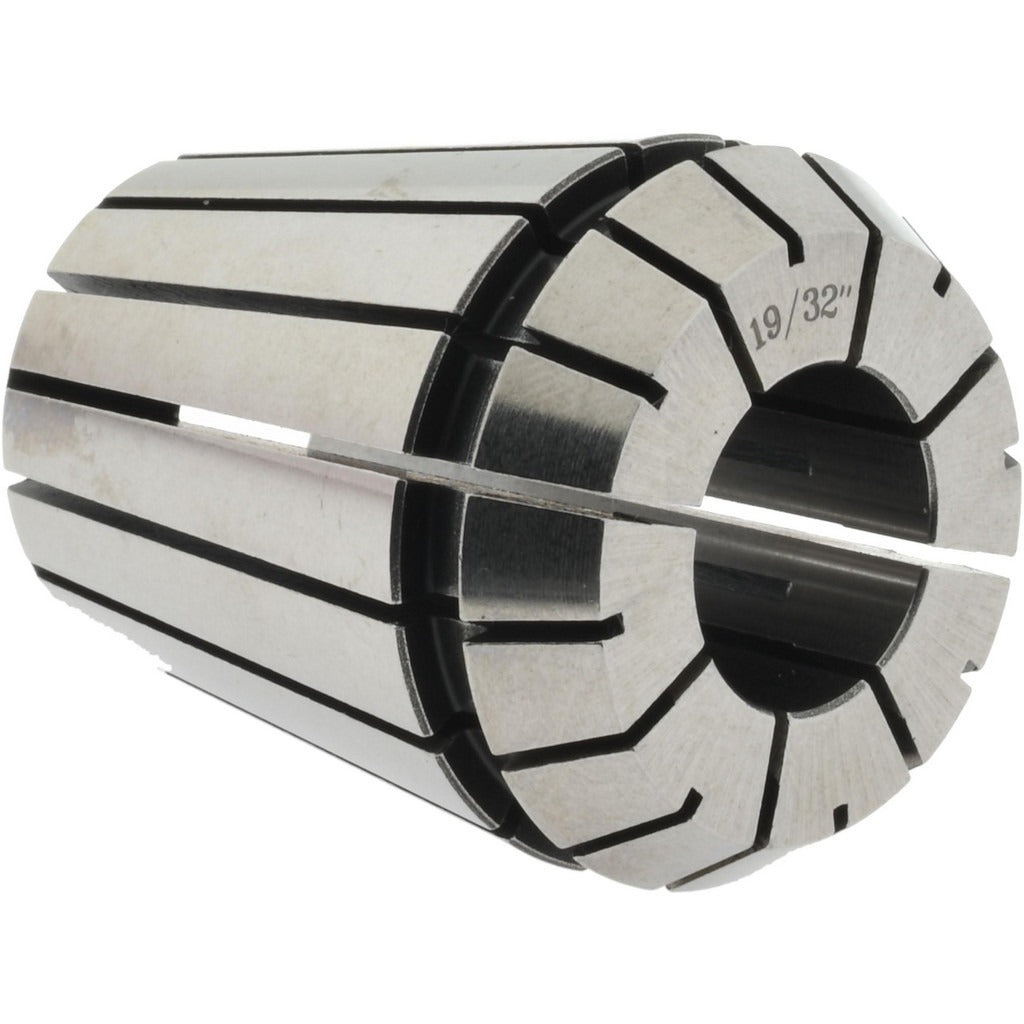

Accupro 785007 ER32 Collet 0.594 Inch

Product Description

The ACCUPRO 785007 is an ER32 series collet designed for use in CNC machining centers, milling machines, and other rotating spindle applications. With a collet size of 0.594 inches and a minimum collet capacity of 0.578 inches, it provides a secure, precise grip on cutting tools and workholding shanks within that range. The ER32 designation refers to the standardized collet series, ensuring dimensional compatibility with any ER32-compliant collet chuck or toolholder. At 0.35 pounds and compact dimensions of 1.75 inches in height and 1.5 inches in width and length, it is built for direct installation by machinists and CNC setup technicians.

ER32 collets are widely used in both production and job-shop environments. This collet is suited for light to medium-duty cutting operations including end milling, drilling, reaming, and tapping. It fits standard ER32 collet chucks found on vertical machining centers, horizontal mills, lathes with live tooling, and manual knee mills. Installation is performed by a machinist or CNC operator during tool setup or changeover. It is sold individually and is appropriate wherever an ER32 chuck is already in service or being installed as part of a tooling package.

Key Features

• ER32 collet series — fits all standard ER32-compliant collet chucks
• 0.594-inch collet size with a minimum capacity of 0.578 inches for precise tool clamping range
• Compact form factor: 1.75 inches tall, 1.5 inches wide, 1.5 inches long
• Lightweight at 0.35 pounds for easy handling during tool changes
• Single-piece packaging — sold individually, no minimum quantity beyond one unit

Compatibility

Designed as a direct-fit collet for any ER32-compliant collet chuck or toolholder conforming to the ER32 standard collet series dimensions.

Installation Notes

Installation is performed by a qualified machinist or CNC setup technician. Before installing or removing a collet, power down the machine and ensure the spindle has come to a complete stop. Use a properly rated ER32 collet nut and torque wrench appropriate for the chuck manufacturer's specifications. Inspect the collet and chuck bore for chips or debris before seating the collet to ensure accurate runout and safe clamping force.
