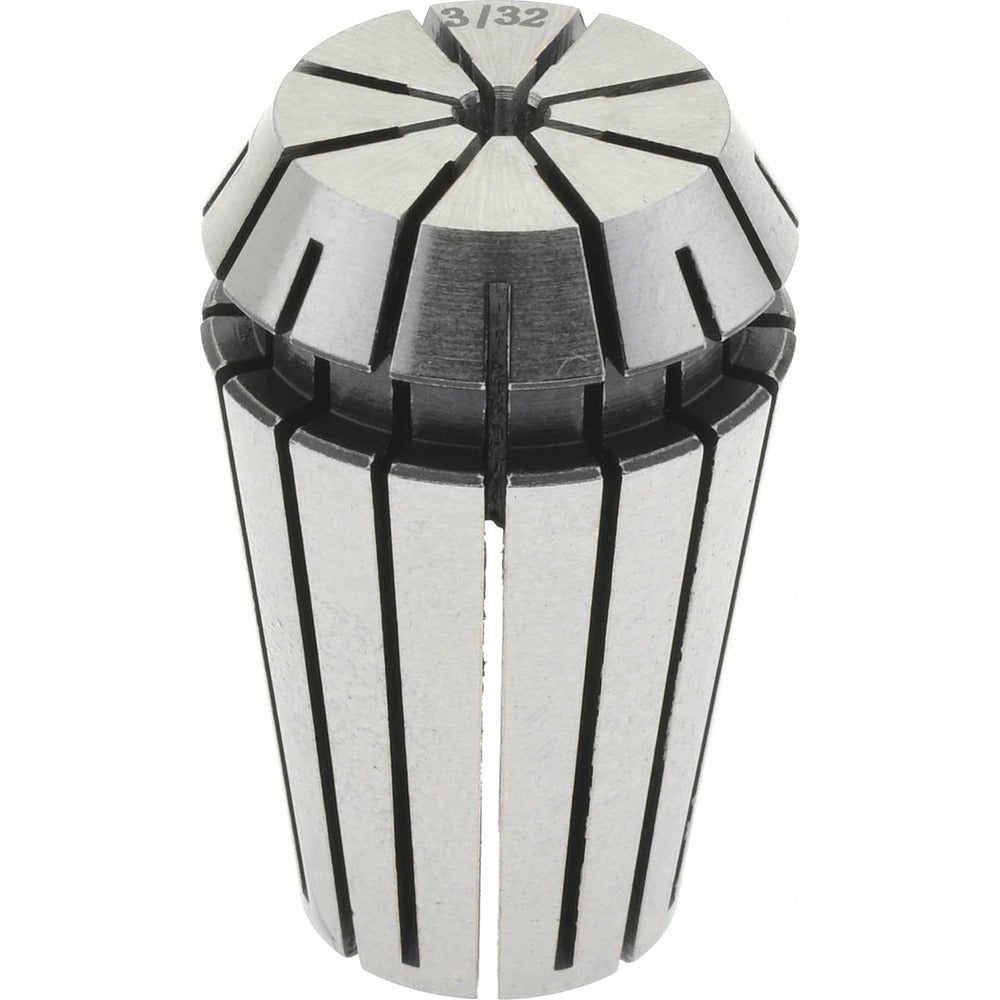

Accupro 784873 ER16 Collet 0.094 Inch

Product Description

The ACCUPRO 784873 is an ER16 series collet designed for use in CNC machining centers, milling machines, and other rotating spindle equipment. It accepts tooling with a decimal inch size of 0.094 inches and a minimum collet capacity of 0.078 inches, making it suited for small-diameter end mills, drills, and similar cutting tools. Machinists and tooling technicians install this collet into a compatible ER16 collet chuck to secure and accurately drive cutting tools during precision machining operations. The compact design measures 1.9 inches in height and 1.2 inches in width and length, and weighs 0.05 pounds.

This collet is used in metalworking and manufacturing environments where ER16-series toolholding systems are standard. It is appropriate for both production shop and job-shop settings running light to medium duty cuts with small-diameter tooling. The 0.094-inch size fills a specific range in the ER16 collet set, covering applications that require close tolerance clamping at that diameter. A machinist or CNC operator installs and removes this collet as part of routine tool changes.

Key Features

• ER16 collet series for use with ER16-compatible collet chucks
• 0.094 inch decimal collet size with a minimum capacity of 0.078 inches
• Compact form factor: 1.9 inches tall, 1.2 inches wide, 1.2 inches long
• Lightweight at 0.05 pounds for easy handling during tool changes
• Single-piece packaging for individual replacement or set building

Compatibility

Designed for use with ER16-series collet chucks and toolholding systems that accept the standard ER16 collet form.

Installation Notes

Installation is performed by a machinist or CNC operator. Before changing collets, power down the spindle and confirm the machine is in a safe, locked-out state per shop lockout/tagout procedures. Insert the collet into a compatible ER16 collet chuck nut before threading onto the chuck body, and tighten to the chuck manufacturer's specified torque using an appropriate collet wrench. Do not run the spindle without confirming the collet and tooling are fully seated and secured.
