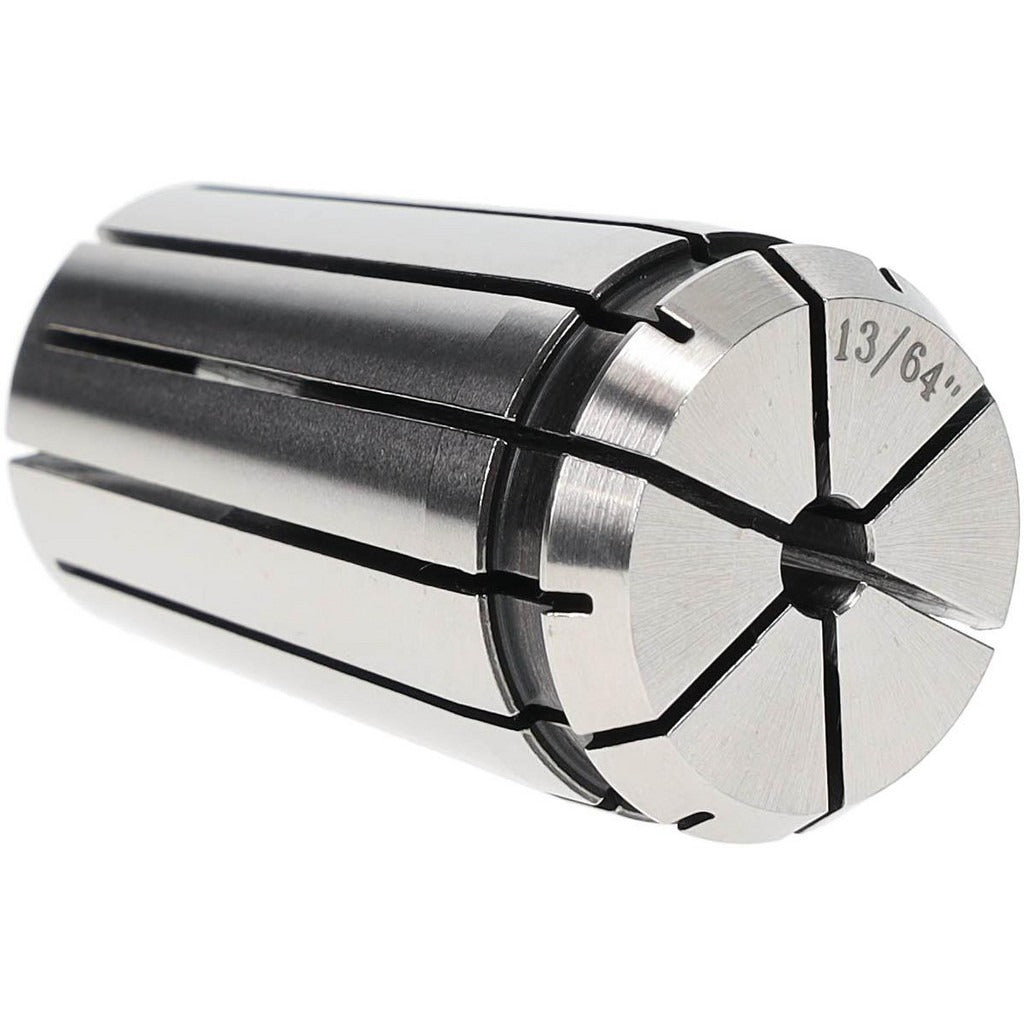

Accupro 784535 TG75 PG75 Standard Single Angle Collet

Product Description

The ACCUPRO 784535 is a standard single angle collet designed for use with TG75 and PG75 collet systems in precision machining applications. It holds a 0.2031 inch (13/64 inch) tool shank and delivers a Total Indicator Runout (TIR) of 0.000780 inches, supporting accurate, repeatable cuts in demanding shop environments. The maximum body diameter measures 1.0630 inches and the overall length is 1.8440 inches. This collet is installed by machinists and toolroom technicians working with TG and PG style collet chucks on milling machines, lathes, and similar CNC or manual machine tools.

This collet is suited for shops running TG75 or PG75 toolholding systems where consistent concentricity and secure shank grip are required. Typical applications include end mill holding, drill chucking, and reamer retention in both production and job-shop environments. It is sold individually and is appropriate for both light finishing passes and more aggressive material removal where low runout is critical to tool life and part quality.

Key Features

• TG75 and PG75 collet series compatibility for broad toolholder fitment
• 0.000780 inch TIR for high concentricity and reduced tool wear
• 0.2031 inch (13/64 inch) bore size for standard shank tooling
• 1.0630 inch maximum body diameter for proper chuck seating
• 1.8440 inch overall length for consistent projection and clearance
• Standard single angle design for straightforward installation and removal

Compatibility

Designed for use with TG75 and PG75 collet chuck systems accepting a 0.2031 inch shank diameter collet.

Installation Notes

Installation is performed by qualified machinists or toolroom personnel. Before changing or seating any collet, ensure the machine spindle is fully stopped and locked out per applicable machine guarding and lockout/tagout procedures. Clean collet and chuck bore thoroughly before seating to prevent runout caused by debris. Inspect the collet seating angle for wear or damage before each use.
