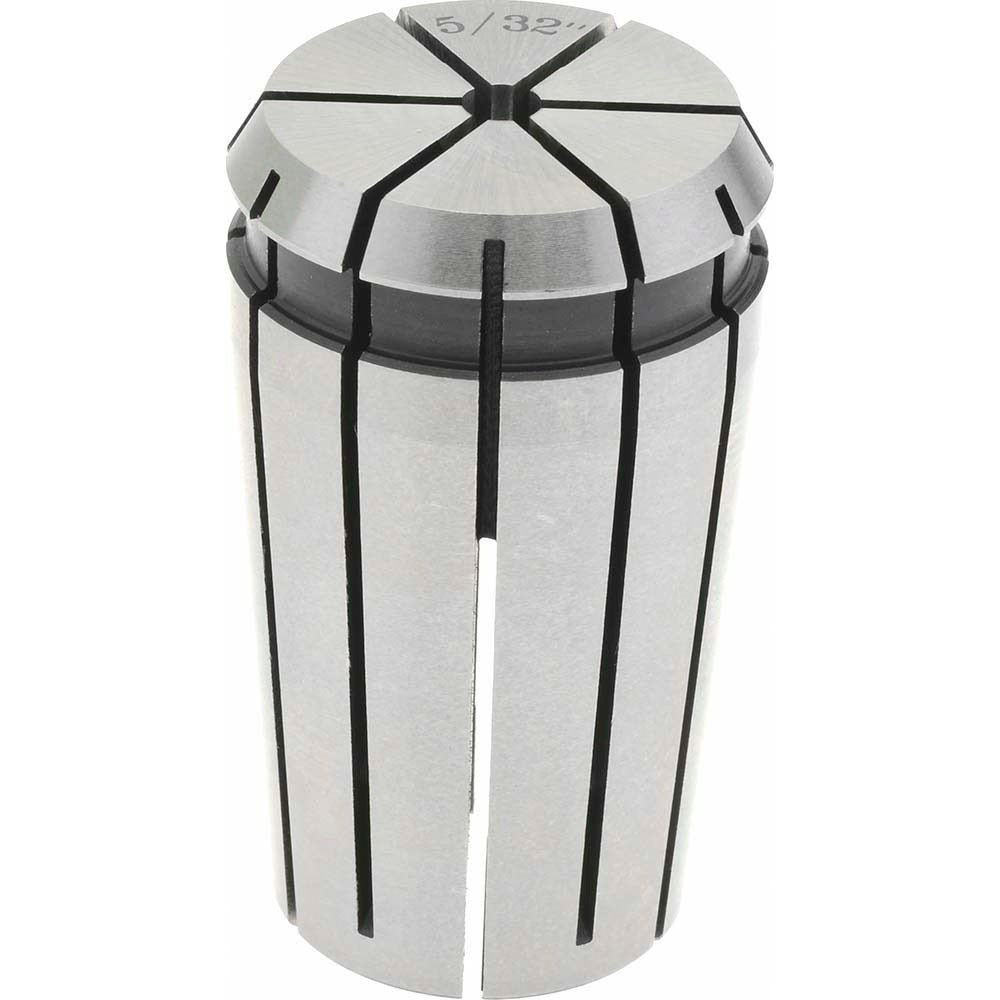

Accupro 784532 Tg/pg 75 Single Angle Collet 5/32 Inch

Product Description

The ACCUPRO 784532 is a standard single angle collet designed for use in TG/PG 75 toolholding systems on CNC machining centers and milling machines. Built to a 5/32 inch (0.1563 inch) bore size, it delivers a total indicator runout (TIR) of 0.000780 inches, supporting the tight tolerances required in precision metal cutting and workholding applications. The body diameter measures 1.0630 inches with an overall length of 1.8440 inches. Machinists and toolroom technicians install this collet as part of a TG/PG 75 collet chuck assembly to secure round-shank cutting tools or workpieces during milling and drilling operations.

This collet is suited for production and job-shop environments where consistent tool runout and secure clamping are critical. The TG/PG 75 series is a widely used collet standard on knee mills, vertical machining centers, and dedicated collet chuck setups. It is appropriate for both light finishing passes and moderate material-removal operations where a 5/32 inch tool shank is required. A single unit is packaged per order.

Key Features

• Bore size of 0.1563 inches (5/32 inch) for standard round-shank tooling
• Low TIR of 0.000780 inches for precision concentricity
• Maximum body diameter of 1.0630 inches fits TG/PG 75 collet chucks
• Overall length of 1.8440 inches provides consistent tool projection
• Standard single angle collet geometry for broad TG/PG 75 system compatibility

Compatibility

Designed for use with TG/PG 75 series collet chuck systems. Specific machine or chuck model compatibility should be verified against the toolholder manufacturer's specifications before installation.

Installation Notes

Installation is performed by machinists or toolroom technicians familiar with collet chuck assemblies. Always confirm the spindle or chuck is fully de-energized and the machine is locked out before inserting or removing collets. Use the appropriate collet nut and tightening wrench specified for the TG/PG 75 system — do not use impact tools on collet nuts. Inspect the collet bore and chuck taper for chips or burrs before seating the collet to avoid damage to the mating surfaces.
