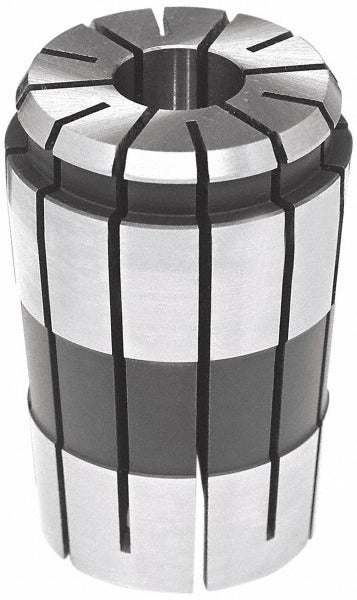

Accupro 784526 Tg/pg 75 Standard Collet 0.0625 in

Product Description

The ACCUPRO 784526 is a standard single angle collet designed for TG/PG 75 collet chucks used in milling, drilling, and precision machining operations. It accepts a 1/16 inch (0.0625 inch) shank diameter and delivers a total indicator runout (TIR) of 0.00078 inches, supporting tight-tolerance work where concentricity matters. The body diameter measures 1.063 inches and the overall length is 1.844 inches. This collet is installed by machinists and toolroom technicians working with TG 75 or PG 75 style toolholding systems on vertical or horizontal machining centers.

This collet is suited for production and job-shop environments where small-diameter tooling must be held securely and accurately. The TG/PG 75 series is a common collet standard found on machining centers and milling machines requiring high-accuracy toolholding. It is appropriate for use with end mills, drills, reamers, and other round-shank cutting tools at the 1/16 inch size.

Key Features

• 1/16 inch (0.0625 inch) collet bore for small-diameter tooling
• TIR of 0.00078 inches for precise concentricity and reduced tool runout
• 1.063 inch maximum body diameter fits TG/PG 75 chuck systems
• 1.844 inch overall length suits standard TG 75 toolholder depths
• Standard single angle collet design for broad TG/PG 75 compatibility

Compatibility

Designed for use with TG/PG 75 series collet chucks and toolholders accepting standard single angle collets with a 0.0625 inch bore.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Ensure the spindle is powered down and the machine is in a locked-out, tagged-out state before changing collets. Clean the collet, chuck bore, and clamping nut mating surfaces before installation to maintain TIR specifications. Do not exceed the toolholder manufacturer's specified clamping torque range for the TG/PG 75 chuck nut.
