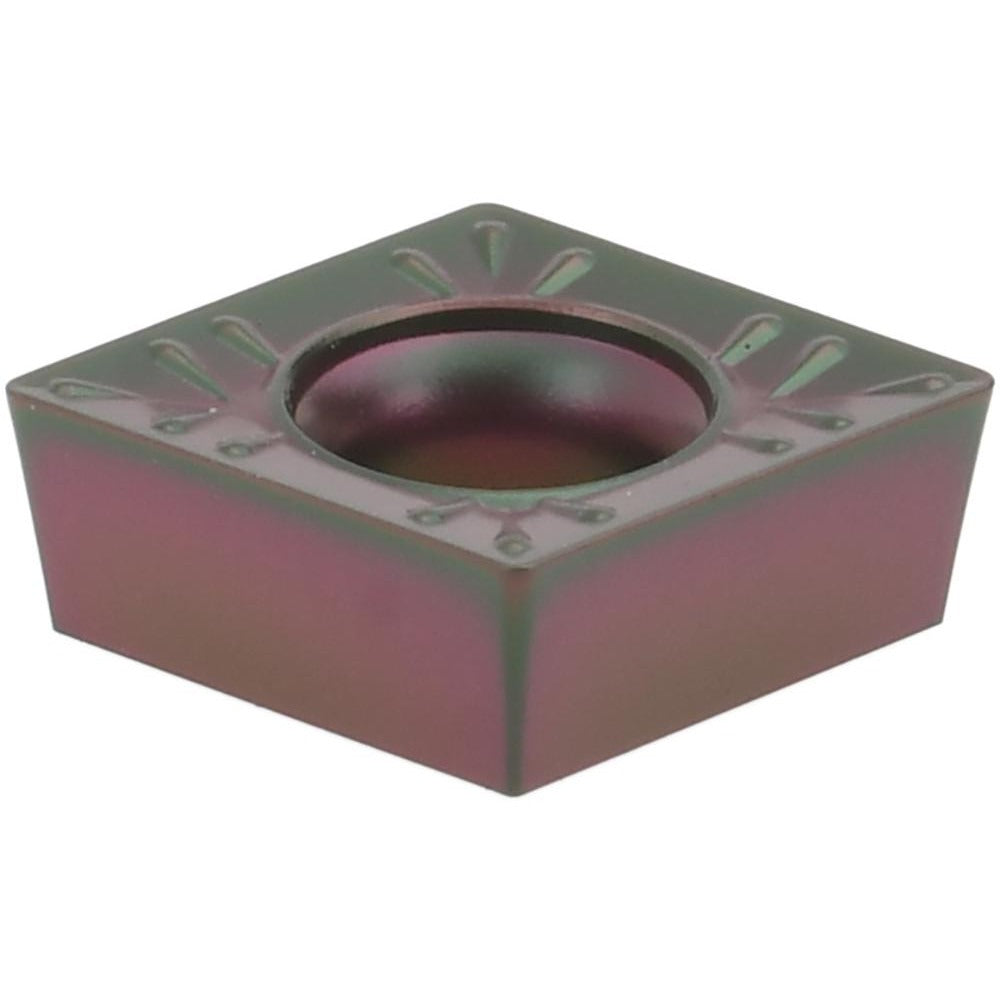

Accupro 75563775 Ccmt Turning Insert Carbide Cvd

Product Description

The ACCUPRO 75563775 is a CCMT-style carbide turning insert designed for precision metal removal on CNC and manual lathes. It carries the ANSI code CCMT32.51 and ISO code CCMT09T304, with an 80-degree diamond (rhombic) insert shape and a 7-degree relief angle. The insert is CVD-coated in grade ACP35M, offering a balance of wear resistance and toughness across steel, stainless steel, and special or super alloy workpieces. The WM+ chip breaker geometry supports a wide range of cutting conditions. Each insert provides two cutting edges and uses a screw-type holding method for secure clamping in compatible toolholders.

This insert is suited for external and internal turning operations in production and job-shop environments. It fits applications involving steel (P-class), stainless steel (M-class), and special or super alloys (S-class). The neutral hand orientation and positive side clearance make it adaptable for a variety of toolholder configurations. Machinists and CNC operators working in aerospace, general manufacturing, and precision machining will find this insert appropriate for moderate to high-demand finishing and semi-finishing passes.

Key Features

• ANSI code CCMT32.51 and ISO code CCMT09T304 for direct cross-reference ordering
• CVD coating on carbide substrate, grade ACP35M, for high wear resistance and toughness
• 80-degree diamond insert shape with 7-degree relief angle for strong cutting edge geometry
• WM+ chip breaker supports steel, stainless steel, and special or super alloy workpieces
• Two cutting edges per insert for extended tooling economy
• Screw-type insert holding method for positive, repeatable clamping

Compatibility

Designed as an OEM-style replacement turning insert for CCMT-style toolholders accepting ANSI size code 32.51 or ISO size code 09T304. Verify toolholder seat geometry and insert holding method before installation.

Installation Notes

Installation is performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine before indexing or replacing inserts. Use the appropriate torx or hex key to secure the clamping screw to the toolholder manufacturer's specified procedure. Inspect the insert pocket and seating surface for chips or debris before seating the new insert to ensure accurate and safe edge engagement.
