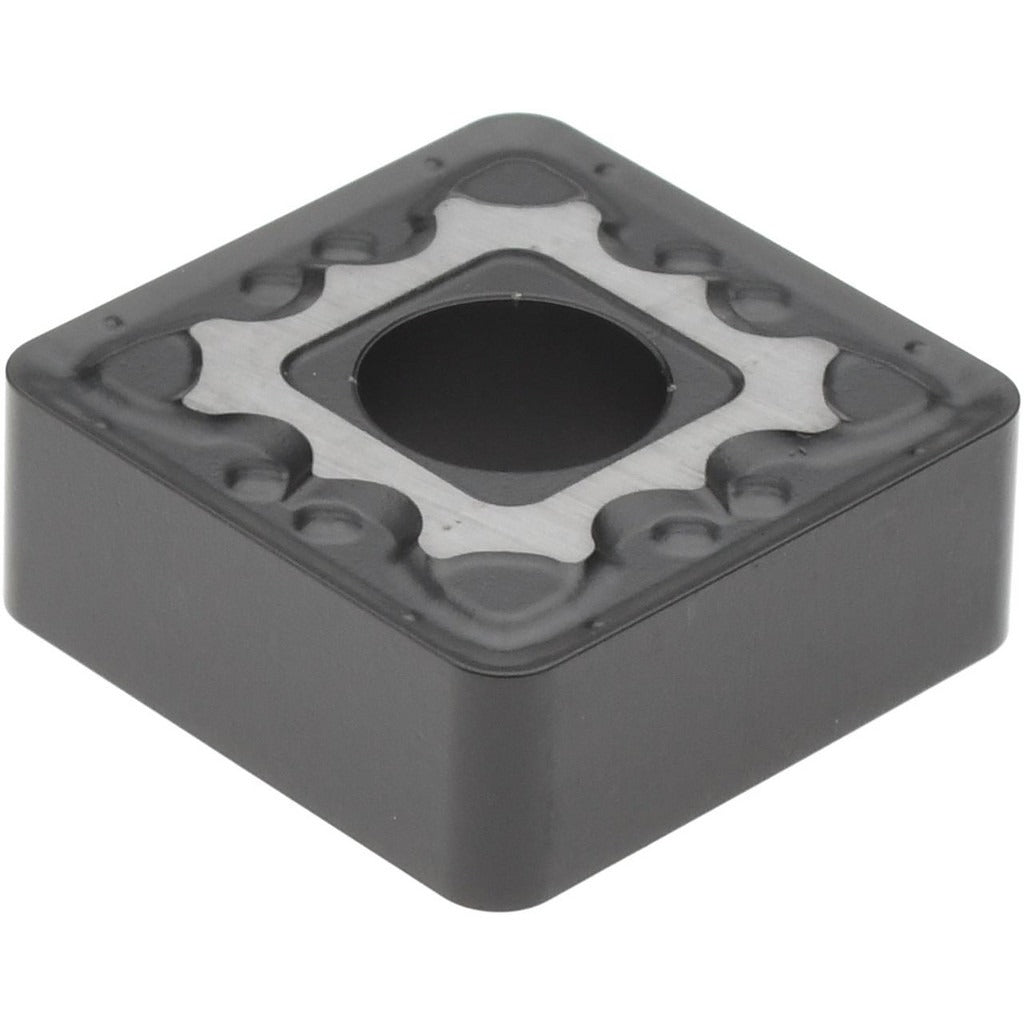

Accupro 75358804 SNMG433 Turning Insert Cvd Carbide

Product Description

The ACCUPRO 75358804 is a CVD-coated carbide turning insert in the SNMG style, designed for external turning operations on CNC and manual lathes. Conforming to ANSI insert code SNMG433 and ISO code SNMG120412, this square-shaped insert features a 90-degree included angle, a neutral hand orientation, and a 1.20 mm (0.0472 inch) corner radius. The ACP25M grade with WR+ chip breaker geometry provides high wear resistance across a range of workpiece materials. At 0.1874 inches thick with a 0.5000-inch inscribed circle, this insert fits standard SNMG toolholders. Installed by machinists and tooling technicians, it is suited for production turning where consistent edge life and chip control are required.

This insert is applicable to turning steel, stainless steel, and cast iron workpieces. The WR+ chip breaker supports a range of cutting conditions from light finishing to moderate roughing, with a maximum depth of cut of 5.00 mm (0.1969 inches). The negative side clearance and M-tolerance designation are consistent with standard SNMG holders used in general-purpose and production CNC turning centers.

Key Features

• CVD coating on ACP25M carbide grade for extended wear resistance in steel, stainless steel, and cast iron applications
• WR+ chip breaker geometry supports versatile depth-of-cut range up to 5.00 mm (0.1969 inches)
• 8 usable cutting edges per insert for low cost-per-edge tooling economics
• Square insert shape with 90-degree included angle and neutral hand for broad toolholder compatibility
• 1.20 mm corner radius balances surface finish quality and edge strength
• Compatible with clamp, lever lock, pin, and screw insert-holding methods

Compatibility

Designed as an OEM-style replacement insert for SNMG-style toolholders conforming to ANSI code SNMG433 and ISO code SNMG120412. Compatible holding methods include clamp, lever lock, pin, and screw systems.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Power down and lock out the machine spindle before seating or indexing the insert. Ensure the toolholder pocket and clamping surfaces are clean and free of chips before securing the insert. Follow the toolholder manufacturer's recommended clamping torque procedure for the specific holding method in use.
