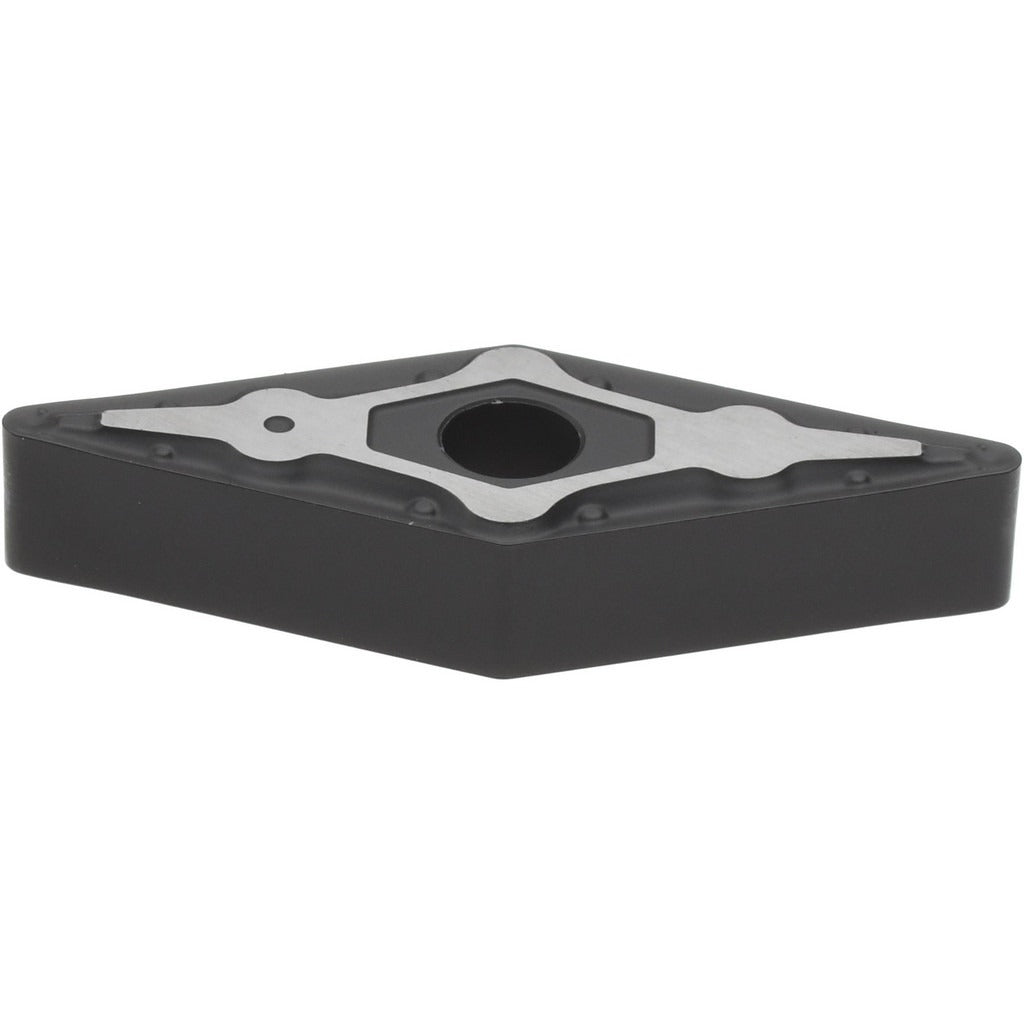

Accupro 75286492 VNMG331 Carbide Turning Insert Cvd

Product Description

The ACCUPRO 75286492 is a VNMG-style indexable carbide turning insert designed for external and internal turning operations on CNC lathes and turning centers. Built to ANSI code VNMG331 and ISO code VNMG160404, this insert features a 35-degree diamond (rhombic) shape, a neutral hand orientation, and a CVD coating applied over a carbide substrate in grade ACP25M. The WM+ chip breaker geometry supports a wide range of cutting conditions. With four usable cutting edges and a corner radius of 0.0315 inches (0.80 mm), it delivers consistent performance across finish and semi-finish turning passes. It weighs approximately 0.02 pounds per insert.

This insert is suited for turning steel, stainless steel, and cast iron workpieces in production and job-shop environments. The ACP25M grade with CVD coating provides high wear resistance across P, M, and K ISO material groups, making it a practical choice for shops running mixed-material work. Maximum depth of cut is 0.1575 inches (4.00 mm). It is compatible with toolholders that accept VNMG inserts using clamp, lever lock, pin, or screw holding methods.

Key Features

• ANSI code VNMG331, ISO code VNMG160404 for direct replacement sourcing
• CVD-coated ACP25M carbide grade rated for Steel (P), Stainless Steel (M), and Cast Iron (K) applications
• 35-degree diamond insert shape with WM+ chip breaker for versatile cutting geometry
• 4 cutting edges per insert, negative side clearance (clearance code N), tolerance code M
• Corner radius 0.0315 inches (0.80 mm), inscribed circle 0.3752 inches (9.53 mm), insert thickness 0.1874 inches (4.76 mm)
• Compatible with clamp, lever lock, pin, and screw-style toolholder clamping systems

Compatibility

Fits standard VNMG toolholders accepting clamp, lever lock, pin, or screw insert holding methods. Designed for use in CNC turning applications across P, M, and K ISO primary workpiece material groups.

Installation Notes

Indexable turning inserts are installed and replaced by machinist or CNC toolroom personnel. Power down and lock out the machine spindle before indexing or replacing inserts. Use the appropriate torque wrench or insert key as specified by the toolholder manufacturer when tightening clamping screws or levers. Inspect the insert seat and clamping mechanism for wear or debris before seating a new insert.
