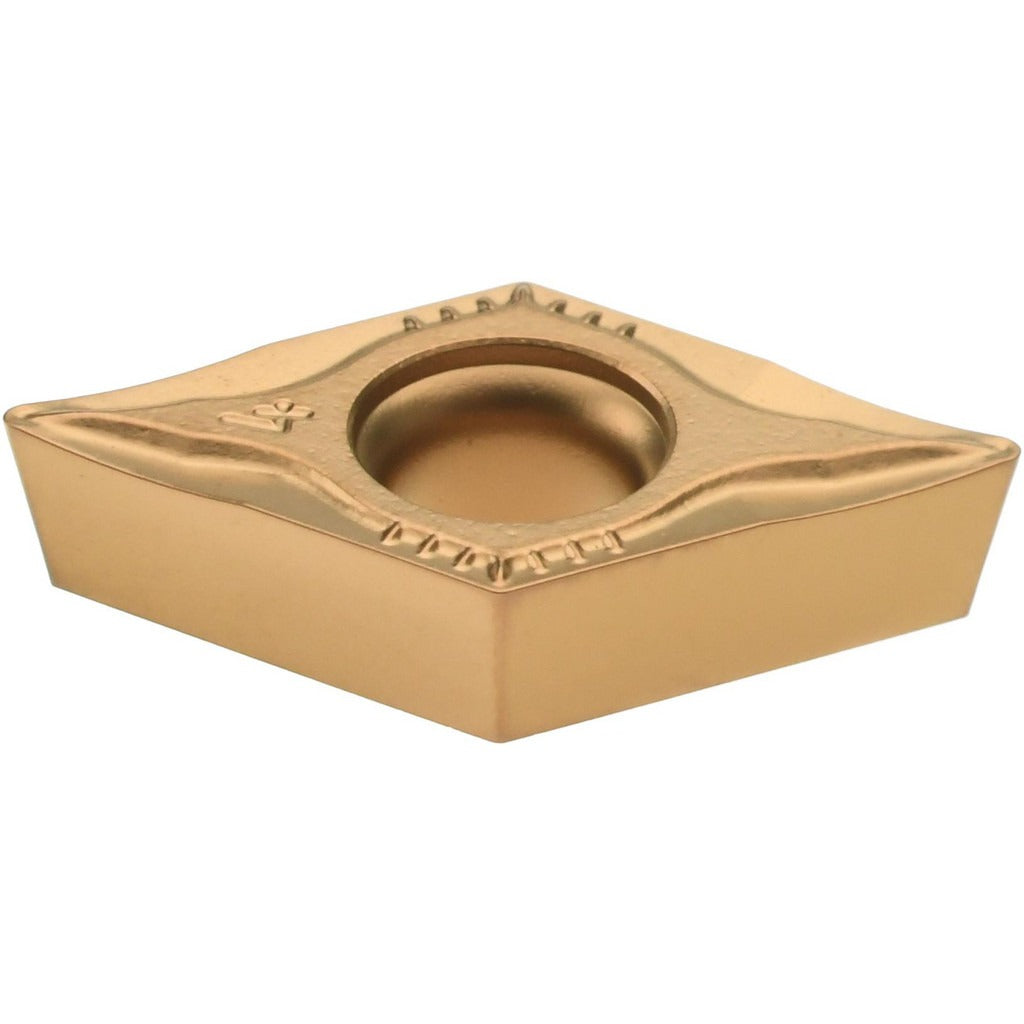

Accupro 75264614 DCMT32.505 Carbide Turning Insert

Product Description

The ACCUPRO 75264614 is a DCMT-style carbide turning insert designed for precision metal cutting on CNC lathes and turning centers. It carries the ANSI code DCMT32.505 and ISO code DCMT11T302, featuring a 55-degree diamond (rhombic) insert shape with a 7-degree relief angle and a CVD coating applied over a carbide substrate. The ACM20P manufacturer grade delivers high wear-resistance to moderate wear-resistance and toughness across steel and stainless steel workpiece materials. The neutral hand orientation and positive side clearance make this insert a versatile choice for finish and semi-finish turning operations where tight tolerances and consistent tool life are required.

This insert is suited for turning steel and stainless steel in both production and job-shop environments. The WSF+ chip breaker geometry supports controlled chip evacuation during continuous and light interrupted cuts. The screw-holding method provides secure seating in compatible DCMT toolholders, making it a practical option for shops running ISO or ANSI-standard turning tool systems. It is installed by machinists and CNC operators working to achieve tight dimensional control on turned components.

Key Features

• ANSI code DCMT32.505 and ISO code DCMT11T302 for cross-reference compatibility
• CVD-coated ACM20P carbide grade for high wear-resistance on steel and stainless steel
• 55-degree diamond insert shape with 7-degree relief angle and positive side clearance
• WSF+ chip breaker for effective chip control during finish and semi-finish turning
• Neutral hand orientation suits a wide range of toolholder setups
• Screw-held mounting method for secure, repeatable insert positioning

Compatibility

Designed for use in DCMT-style screw-clamp turning toolholders accepting ANSI size code 32.505 inserts with a 0.1772-inch hole diameter. Compatible with primary workpiece material codes P and M, covering steel and stainless steel applications.

Installation Notes

Turning insert replacement is performed by qualified machinists or CNC operators. Power down and lock out the machine spindle before changing inserts. Use the appropriate torx or hex key to torque the clamp screw to the toolholder specification without overtightening, which can crack the insert. Inspect the insert seat and clamp for chips or debris before seating the new insert to ensure proper support and accurate tool-tip position.
