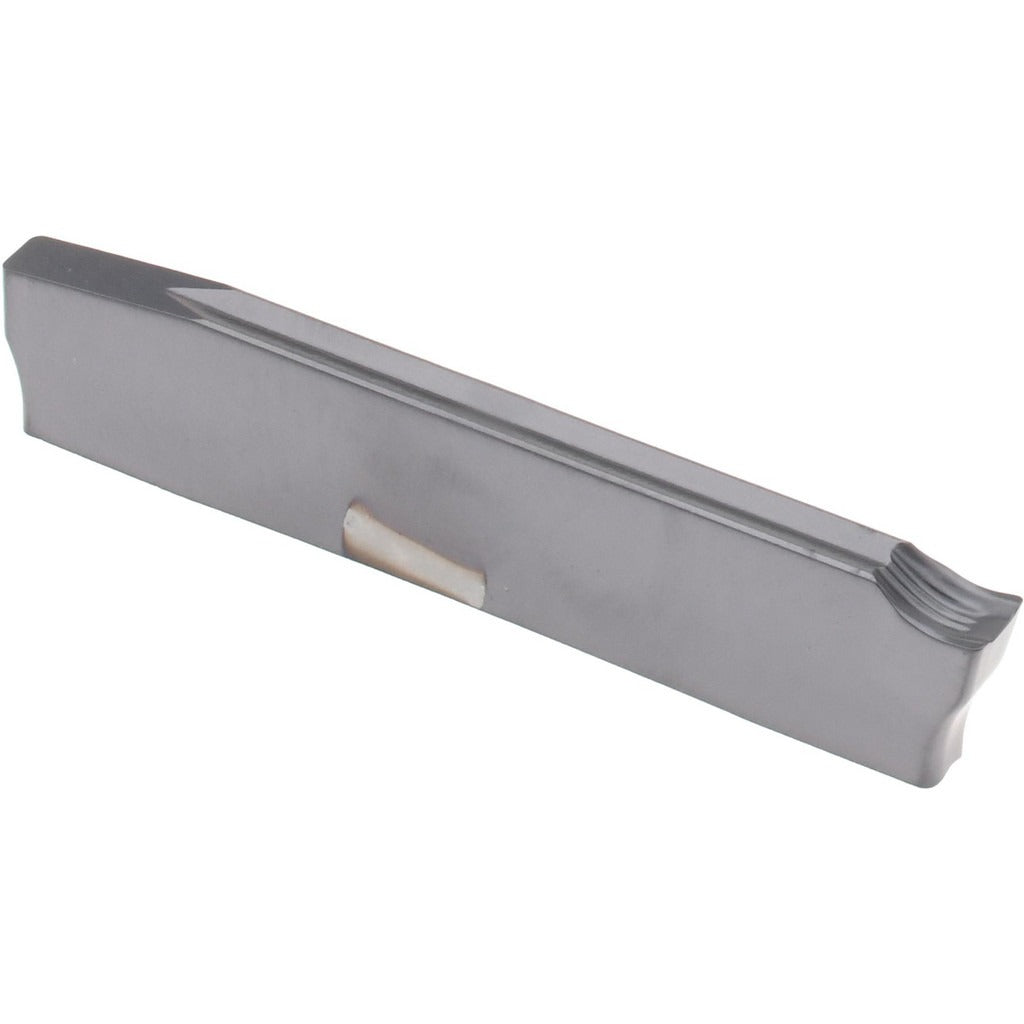

Accupro 75238469 Grooving Insert Go Style ACP45M Grade

Product Description

The ACCUPRO 75238469 is a GO-style grooving insert designed for precision grooving and parting operations on CNC lathes and turning centers. It carries a cutting width of 0.0787 inches (2.000 mm) and a corner radius of 0.0079 inches (0.20 mm), making it well-suited for tight-tolerance grooves where dimensional accuracy is critical. The insert is manufactured to the ACP45M grade with a PVD coating and a GUP chip breaker geometry. A positive rake configuration promotes cleaner cutting action and reduced cutting forces. The CI series designation and clamp, screw, or self-grip holding compatibility give machinists flexible toolholder options across a range of setups.

This insert is intended for use in metal-cutting applications where consistent groove width and surface finish are required. The 0.0787-inch cutting width targets standard grooving profiles on ferrous and non-ferrous workpieces. The multi-use designation means the insert can handle grooving, parting, and profile turning within its geometry limits. It is typically installed by CNC machinists and tool-room operators working in production or job-shop environments. Insert Size Code 24 aligns with standard CI-series toolholder seat dimensions for straightforward drop-in setup.

Key Features

• GO insert style with 0.0787-inch (2.000 mm) cutting width for precise groove dimensioning
• ACP45M manufacturer grade with PVD coating for wear resistance in turning applications
• GUP chip breaker geometry promotes controlled chip formation during grooving
• Positive rake for reduced cutting forces and cleaner surface finish
• Compatible with clamp, screw, and self-grip holding methods for toolholder flexibility
• Multi-use geometry supports grooving, parting, and profile turning operations

Compatibility

Designed for use with CI-series toolholders accepting Insert Size Code 24 seats with clamp, screw, or self-grip holding methods.

Installation Notes

Installation should be performed by a qualified machinist with the machine in a locked-out, zero-energy state before any insert change. Seat the insert fully into the toolholder pocket and confirm the clamping mechanism is fully engaged before resuming cutting. Inspect the insert seat and chip pocket for debris prior to installation to ensure proper seating and accurate cutting width. Follow the toolholder manufacturer torque specifications for screw-type clamping systems.
