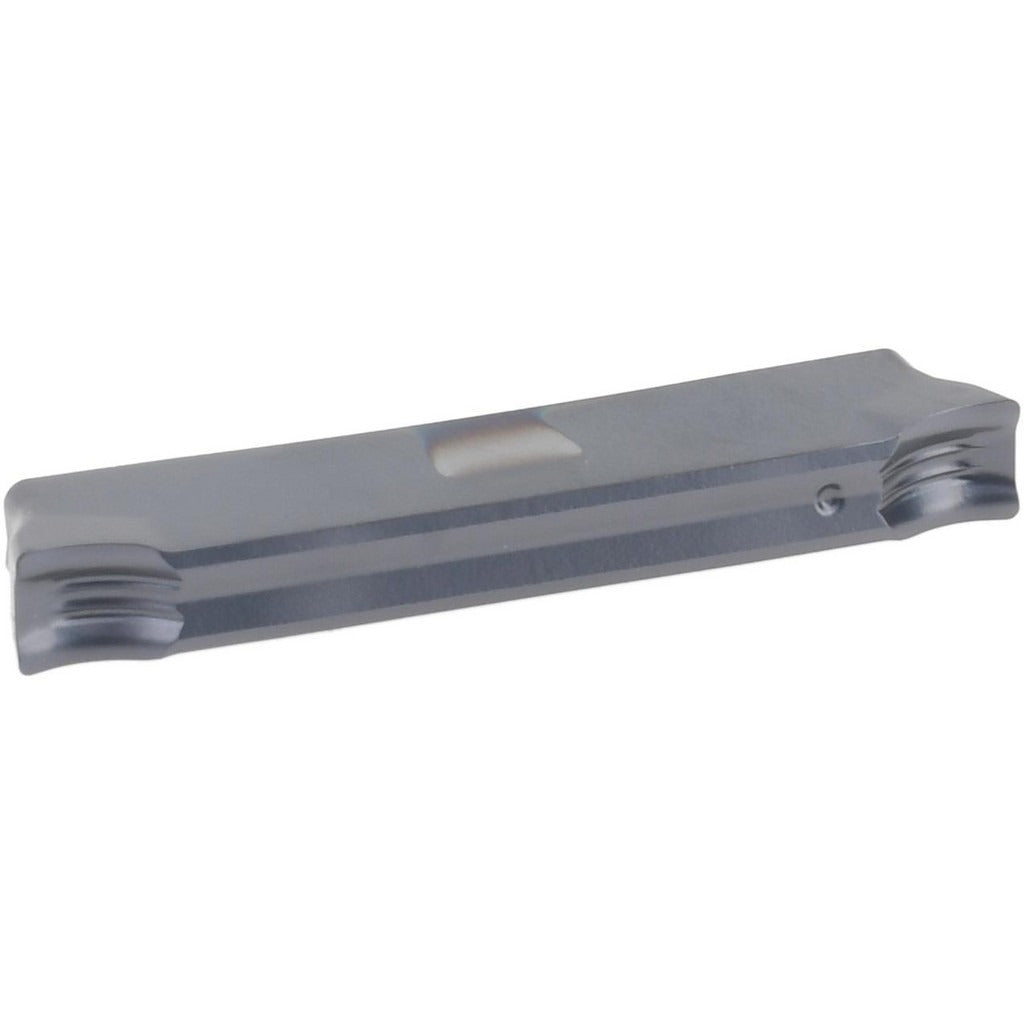

Accupro 75233684 Grooving Insert Gd ACP30M 3mm

Product Description

The ACCUPRO 75233684 is a GD-style grooving insert designed for precision external and internal grooving operations on CNC turning centers and manual lathes. It carries a cutting width of 0.1181 inches (3.000 mm) and a corner radius of 0.0079 inches (0.20 mm), making it well-suited for tight-tolerance groove profiles. Manufactured in grade ACP30M with a PVD coating, this insert delivers wear resistance and edge stability across a range of workpiece materials. A positive rake geometry promotes clean chip evacuation and reduces cutting forces during grooving passes.

This insert is intended for use in metalworking applications where consistent groove width and finish quality are required. It fits toolholders designed for GD-style inserts, size code 24, and is compatible with the CI series toolholder system. Typical applications include groove cutting on steel, stainless, and similar materials in production and job-shop environments. The GUP chip breaker geometry supports controlled chip flow at moderate feed and depth-of-cut conditions. Licensed machinists and CNC operators in production machining and toolroom settings are the primary users.

Key Features

• GD insert style with size code 24 for use in CI series toolholders
• 3.000 mm (0.1181 inches) cutting width for precise groove sizing
• 0.20 mm (0.0079 inches) corner radius for defined groove edge profiles
• ACP30M grade with PVD coating for wear resistance and extended tool life
• Positive rake geometry reduces cutting forces and improves chip flow
• GUP chip breaker promotes controlled chip evacuation during grooving passes
• Multi-use insert compatible with clamp, screw, and self-grip holding methods

Compatibility

Designed for use with CI series GD-style insert toolholders, size code 24, using clamp, screw, or self-grip holding methods.

Installation Notes

Installation should be performed by a qualified machinist or CNC technician. Before seating the insert, ensure the toolholder pocket is clean and free of chips or debris that could affect seating accuracy. Power down and lock out the machine before changing inserts. Follow the toolholder manufacturer's clamping torque specifications and verify insert seating before resuming cuts.
