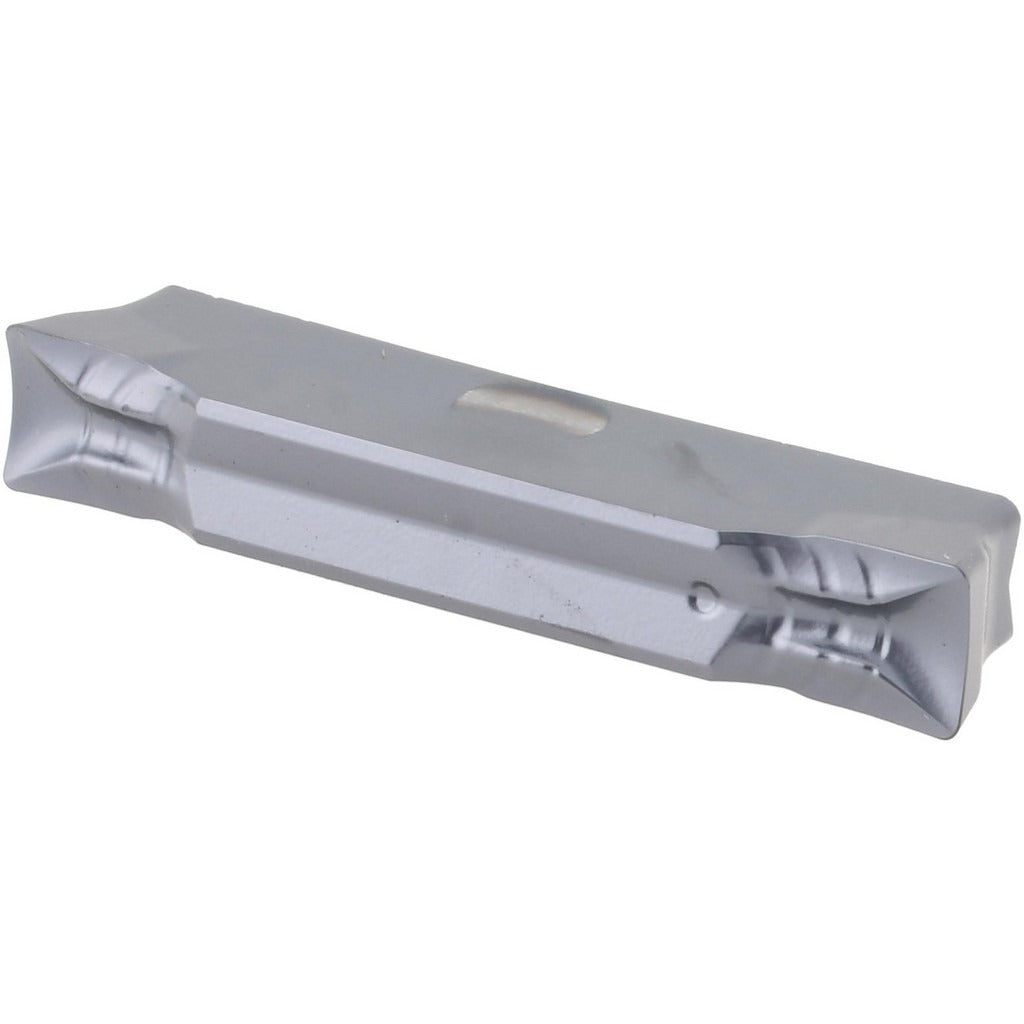

Accupro 75230938 Grooving Insert Ci 4mm ACP30M Pvd

Product Description

The ACCUPRO 75230938 is a CI-style grooving insert designed for precision external and internal grooving operations on CNC lathes and turning centers. Built to grade ACP30M with a PVD coating, this insert delivers consistent cutting performance on a range of workpiece materials. The cutting width measures 0.1575 inches (4.000 mm), and the corner radius is 0.0157 inches (0.40 mm). The positive rake geometry reduces cutting forces and promotes clean chip evacuation. A GUT chip breaker pattern is integrated into the insert face to control chip flow during grooving passes.

This insert suits production turning applications in both job shop and manufacturing environments. It is compatible with CI-series grooving toolholders that accept size code 24 inserts. The multi-use design allows it to function across grooving, parting, and profiling operations depending on the toolholder configuration. Machinists and CNC operators working in automotive, aerospace, and general metalworking applications will find this insert applicable to a wide range of steel, stainless, and alloy workpiece materials.

Key Features

• CI insert style, size code 24, compatible with CI-series grooving toolholders
• Cutting width: 0.1575 inches (4.000 mm) for consistent groove sizing
• Corner radius: 0.0157 inches (0.40 mm) for controlled groove geometry
• ACP30M manufacturer grade with PVD coating for wear resistance
• Positive rake angle reduces cutting forces and heat generation
• GUT chip breaker for effective chip control during grooving passes
• Multiple holding methods supported: clamp, screw, and self-grip

Compatibility

Designed for use with CI-series grooving toolholders accepting size code 24 inserts. Verify toolholder seat dimensions and insert holding method before installation to confirm fitment.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine before seating or replacing inserts. Ensure the insert pocket is clean and free of chips or debris before clamping. Follow the toolholder manufacturer torque guidelines for the applicable clamping screw or self-grip mechanism.
