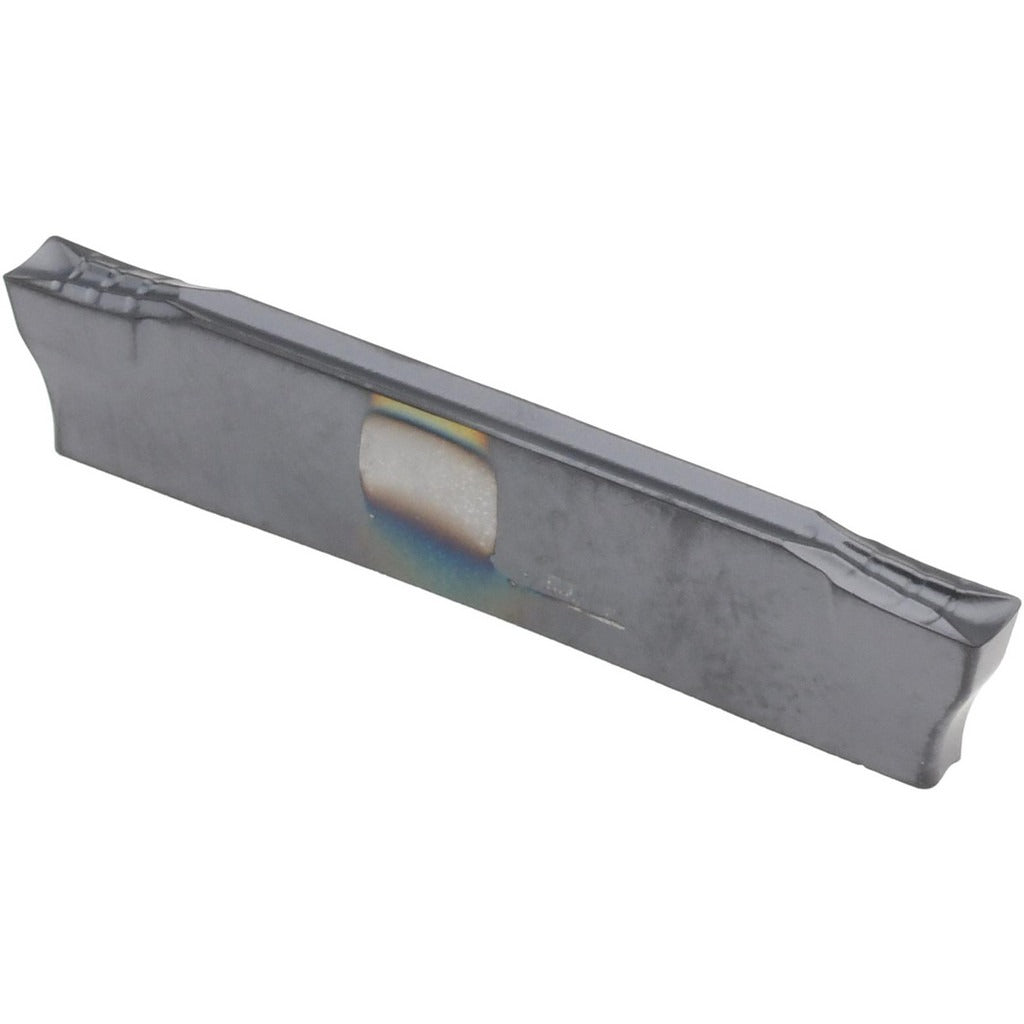

Accupro 75212696 Gd Grooving Insert 0.0787 in ACP30M

Product Description

The ACCUPRO 75212696 is a GD-style grooving insert designed for precision external and internal grooving operations on CNC lathes and turning centers. Built to insert size code 24, it delivers a cutting width of 0.0787 inches (2.000 mm) with a corner radius of 0.0079 inches (0.20 mm) for clean, accurate groove profiles. The ACP30M manufacturer grade combined with a PVD coating provides wear resistance and thermal stability across a range of workpiece materials. The positive rake geometry reduces cutting forces, making it well suited for finishing passes on steel, stainless, and similar alloys. Machinists and CNC operators install this insert using clamp, screw, or self-grip holding methods depending on the toolholder configuration.

This insert is intended for grooving applications in precision machining environments including job shops, production turning operations, and maintenance machining. The GUT chip breaker geometry promotes effective chip evacuation in shallow groove profiles, helping maintain surface finish quality and reducing the risk of chip packing in tight grooves. The CI series designation identifies the compatible toolholder family. The insert is sold individually with a minimum order quantity of 10 units, making it practical for stocking in production settings where insert consumption is consistent.

Key Features

• GD insert style with 0.0787 inch (2.000 mm) cutting width for precise groove sizing
• ACP30M grade with PVD coating for extended tool life across steel and alloy workpieces
• Positive rake geometry reduces cutting forces and improves surface finish
• GUT chip breaker promotes reliable chip evacuation in grooving applications
• Compatible with clamp, screw, and self-grip insert holding methods
• Multi-use capable insert suitable for grooving and related turning operations

Compatibility

Designed for use with CI series toolholders that accept GD-style inserts at insert size code 24. Verify toolholder seat dimensions and clamping method before installation.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Power down and lock out the machine spindle before seating or replacing inserts. Ensure the toolholder pocket and seating surfaces are clean and free of chips before installing the insert. Consult the toolholder manufacturer specifications for proper clamping torque and insert engagement depth.
