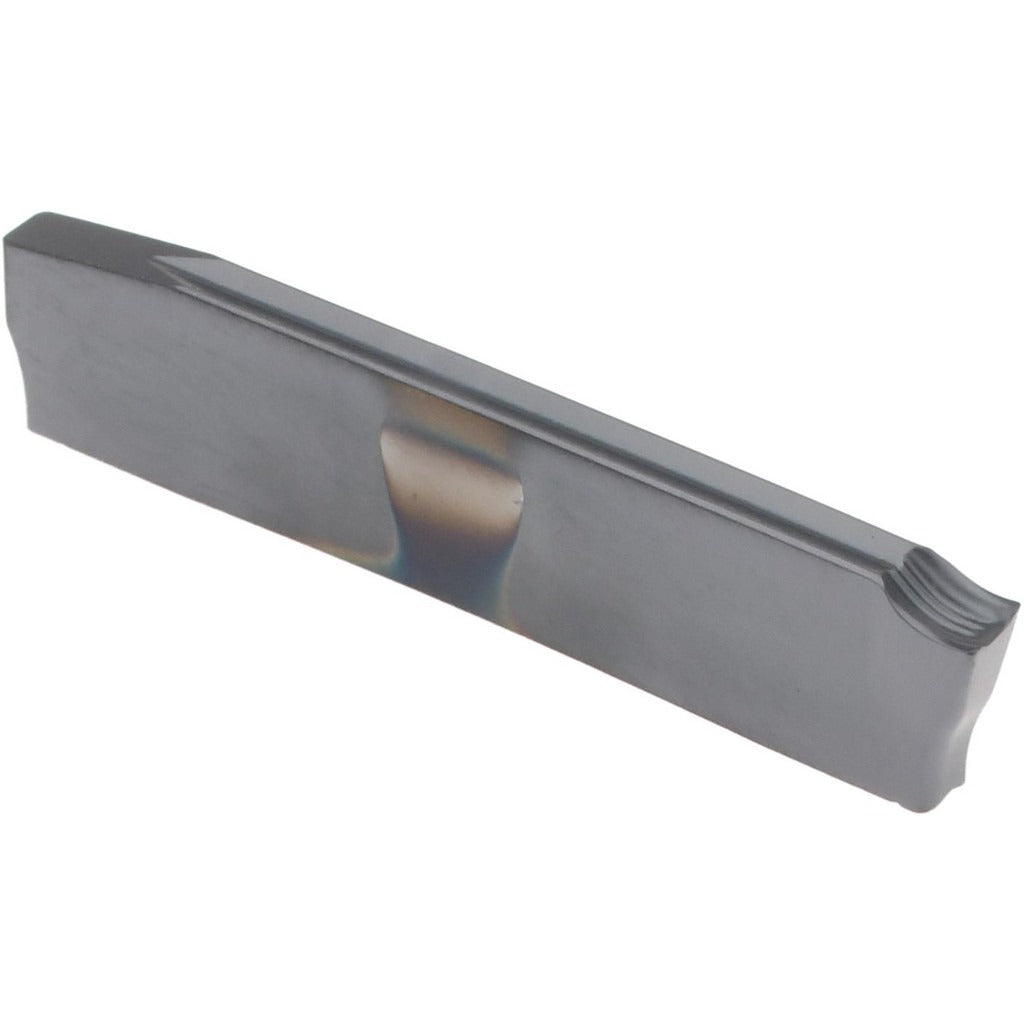

Accupro 75212480 Grooving Insert Ci 2mm ACP30M Pvd

Product Description

The ACCUPRO 75212480 is a CI-style grooving insert designed for precision external and internal grooving operations on CNC lathes and turning centers. Built to grade ACP30M with a PVD coating, this insert delivers consistent performance in steel and general-purpose machining applications. The cutting width measures 0.0787 inches (2.000 mm), and the corner radius is 0.0059 inches (0.15 mm), making it well suited for narrow, controlled grooving passes. A positive rake geometry reduces cutting forces and supports clean chip evacuation. The GUP chip breaker geometry promotes reliable chip control across a range of feed rates and depths.

This insert is used in metalworking and machining environments where consistent groove geometry and tight tolerances are required. It is compatible with CI-series grooving toolholders that accept size code 24 inserts. Installation is performed by machinists and tooling technicians in job shop, production, and maintenance machining settings. The multi-use designation means this insert can serve across grooving, parting, and related operations depending on toolholder configuration and setup.

Key Features

• CI insert style with size code 24 for use in compatible CI-series toolholders
• 2.000 mm (0.0787 inches) cutting width for narrow, precise groove profiles
• ACP30M manufacturer grade with PVD coating for wear resistance in steel and general-purpose materials
• Positive rake geometry reduces cutting forces and heat generation
• GUP chip breaker for reliable chip control and evacuation
• Multi-use tool designation supports grooving and related operations
• Compatible with clamp, screw, and self-grip insert holding methods

Compatibility

Designed for use with CI-series grooving toolholders accepting size code 24 inserts with clamp, screw, or self-grip holding methods.

Installation Notes

Installation is performed by a qualified machinist or tooling technician. Power down and lock out the machine before seating or changing inserts. Inspect the toolholder pocket for debris or wear before installing the insert, and ensure the clamping method is fully engaged and secure before resuming operation. Do not exceed the insert or toolholder manufacturer's recommended cutting parameters.
