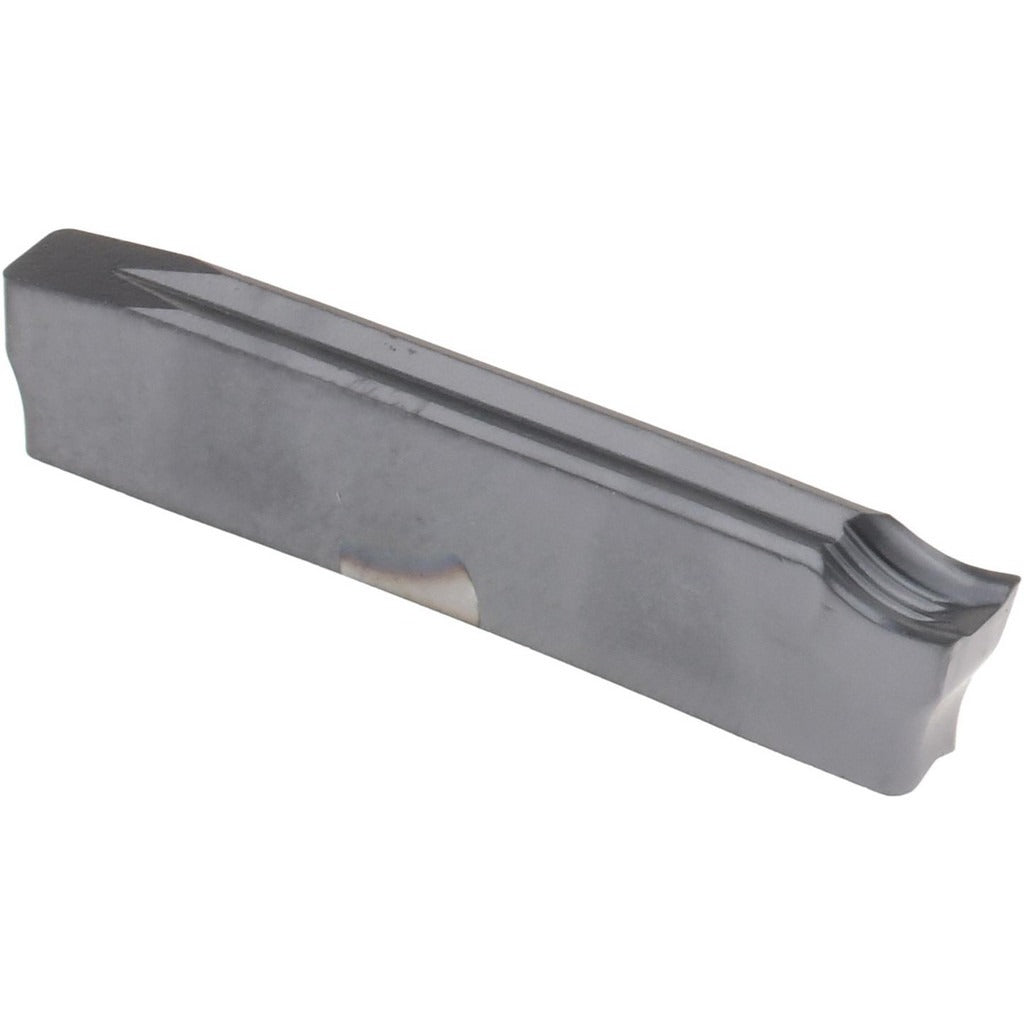

Accupro 75203760 Grooving Insert Go Style ACP30M

Product Description

The ACCUPRO 75203760 is a GO-style grooving insert designed for precision parting and grooving operations on CNC lathes and turning centers. With a cutting width of 0.1181 inches (3.000 mm) and a corner radius of 0.0079 inches (0.20 mm), this insert delivers consistent, repeatable groove geometry. It carries the ACP30M manufacturer grade with a PVD coating for improved wear resistance and thermal stability. The GUP chip breaker geometry promotes efficient chip evacuation during grooving cuts. Positive rake geometry reduces cutting forces and heat generation at the workpiece interface. Machinists and CNC operators install this insert as a direct replacement in compatible CI-series toolholders.

This insert is suited for grooving and parting applications in ferrous and non-ferrous materials across both production and job-shop environments. The multi-use designation means it can be applied across a range of grooving depths and profiles within its size class. Compatible holding methods include clamp, screw, and self-grip systems, providing flexibility across multiple toolholder configurations. Insert Size Code 24 places it in a well-established size range common to many lathe toolholder platforms used in residential and light industrial machine shops alike.

Key Features

• GO insert style with 0.1181-inch (3.000 mm) cutting width for precise groove sizing
• ACP30M grade with PVD coating for extended tool life and thermal resistance
• GUP chip breaker geometry for reliable chip control during grooving cuts
• Positive rake design reduces cutting forces and tool pressure
• Compatible with clamp, screw, and self-grip holding methods
• Multi-use insert suitable for a range of grooving applications within the CI series

Compatibility

Designed as an OEM-style replacement grooving insert for CI-series toolholders accepting GO-style, Size Code 24 inserts with clamp, screw, or self-grip holding methods.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator with the machine powered down and locked out before insert changes. Seat the insert fully and evenly in the toolholder pocket before engaging the clamping mechanism. Inspect the insert seat and clamping components for chips or debris prior to installation to ensure proper seating. Follow the toolholder manufacturer's torque and clamping specifications for the specific holding method in use.
