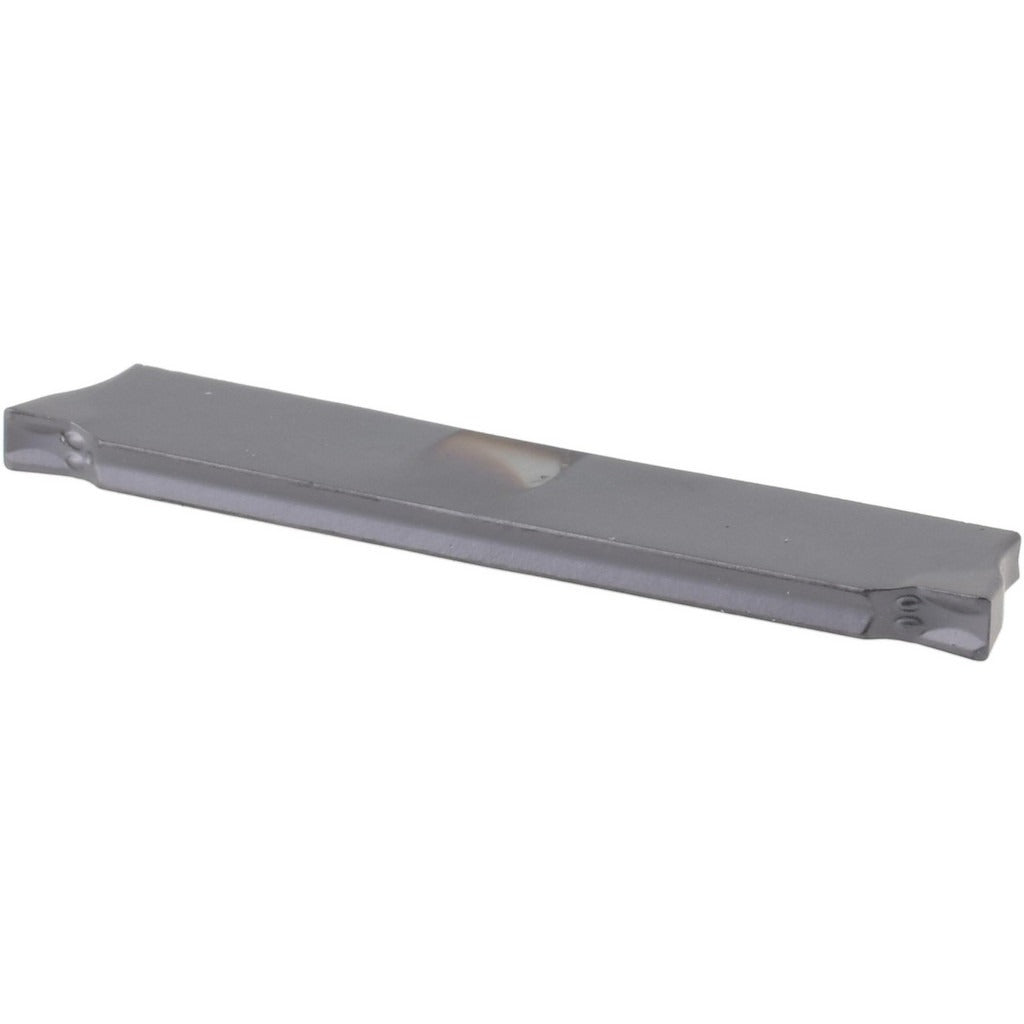

Accupro 75201285 Grooving Insert Gd 1.500mm ACP45M Pvd

Product Description

The ACCUPRO 75201285 is a GD-style grooving insert engineered for precision groove turning and parting operations on CNC lathes and turning centers. It carries the ACP45M manufacturer grade with a PVD coating applied to the carbide substrate, delivering wear resistance and extended tool life in steel, stainless, and similar workpiece materials. The cutting width measures 0.0591 inches (1.500 mm) with a corner radius of 0.0059 inches (0.15 mm), supporting fine-detail grooving where dimensional accuracy is critical. A positive rake geometry reduces cutting forces and promotes clean chip evacuation. This insert is part of the CI series and is sold individually, with a minimum order of 10 pieces.

This insert is suited for production and job-shop turning environments where consistent groove widths and surface finish are required. The GPP chip breaker geometry is designed to manage chip flow on light-to-medium depth grooving passes. The insert accommodates multiple holding methods including clamp, screw, and self-grip toolholders, giving machinists flexibility across different tool block configurations. It is appropriate for both roughing passes and finish grooving where the 1.500 mm width is the target dimension. CNC machinists and toolroom technicians are the primary installers of this insert type.

Key Features

• GD insert style with 1.500 mm (0.0591 inches) cutting width for precise groove profiling
• ACP45M grade with PVD coating for wear resistance in ferrous and stainless workpiece materials
• Positive rake geometry reduces cutting forces and heat generation at the cutting edge
• GPP chip breaker promotes controlled chip flow during grooving passes
• Compatible with clamp, screw, and self-grip toolholder systems
• CI series insert with a 0 degree lead angle for straight-wall groove geometry

Compatibility

Designed as a replacement-style grooving insert for CI series toolholders accepting GD-style inserts with a size code 24 designation. Verify toolholder pocket geometry and insert size code before installation.

Installation Notes

Installation is performed by qualified CNC machinists or toolroom technicians. Power down and lock out the machine spindle before seating or removing any insert. Inspect the toolholder pocket for debris, wear, or damage prior to clamping the insert. Use the appropriate torque driver for screw-style retention and confirm the insert is fully seated before resuming cutting operations.
