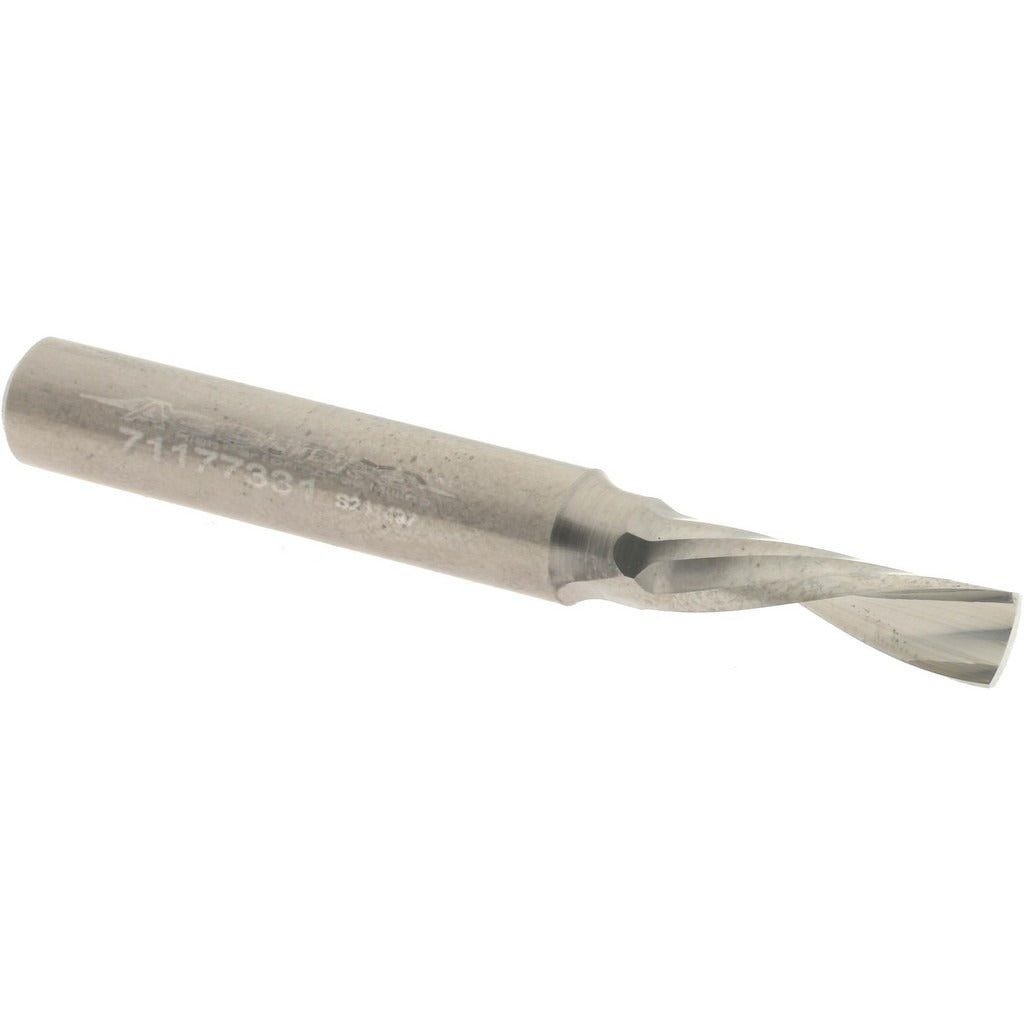

Accupro 71177331 Downcut Spiral Router Bit 3/16 in Solid Carbide

Product Description

The ACCUPRO 71177331 is a single-edge downcut spiral router bit machined from solid carbide. It carries a 3/16 inch (0.1875 inch) cutter diameter, a 5/8 inch length of cut, and a 1/4 inch shank diameter, with a 2 inch overall length. The downcut flute geometry pulls chips toward the workpiece surface rather than lifting them, which reduces top-surface tearout and fraying on plastics and laminates. The 21-degree helix angle and bright uncoated finish keep the cutting edge sharp and reduce material buildup during operation. This bit is installed and run by machinists, CNC operators, and skilled fabricators working with routers and CNC routing equipment.

This router bit is designed for cutting and profiling plastic sheet goods and engineered solid-surface materials. Suitable applications include ABS, acrylic, HDPE, HIPS, PE, PET, POM, PS, polycarbonate, polypropylene, solid surfaces, and UHMW. The downcut geometry is particularly well suited to through-cuts and edge profiles where a clean top surface finish is required. It is commonly used in sign fabrication, countertop fabrication, and plastic component profiling on CNC routers and handheld routing setups.

Key Features

• Solid carbide construction for rigidity and wear resistance in abrasive plastic materials
• Downcut flute type reduces top-surface tearout and fraying on sheet plastics and laminates
• Single-edge router style provides efficient chip clearance in gummy or soft thermoplastics
• 21-degree helix angle balances cutting aggressiveness with smooth surface finish
• Bright uncoated finish minimizes material adhesion on plastics
• Right-hand cutting direction compatible with standard CNC router and handheld router spindle rotation

Compatibility

Designed for use with 1/4 inch router collets on CNC routers and handheld routers. Rated for ABS, acrylic, HDPE, HIPS, PE, PET, POM, PS, polycarbonate, polypropylene, solid surfaces, and UHMW as stated by the manufacturer. Not piloted; intended for freehand or fixture-guided cuts.

Installation Notes

A licensed machinist or qualified CNC operator should install this bit using the appropriate collet wrench to achieve proper seating depth without overtightening the collet. Always power down and lock out the router spindle before changing bits. Confirm shank engagement depth meets the router or collet manufacturer minimum before operation. Eye and hearing protection are required when operating routing equipment.
