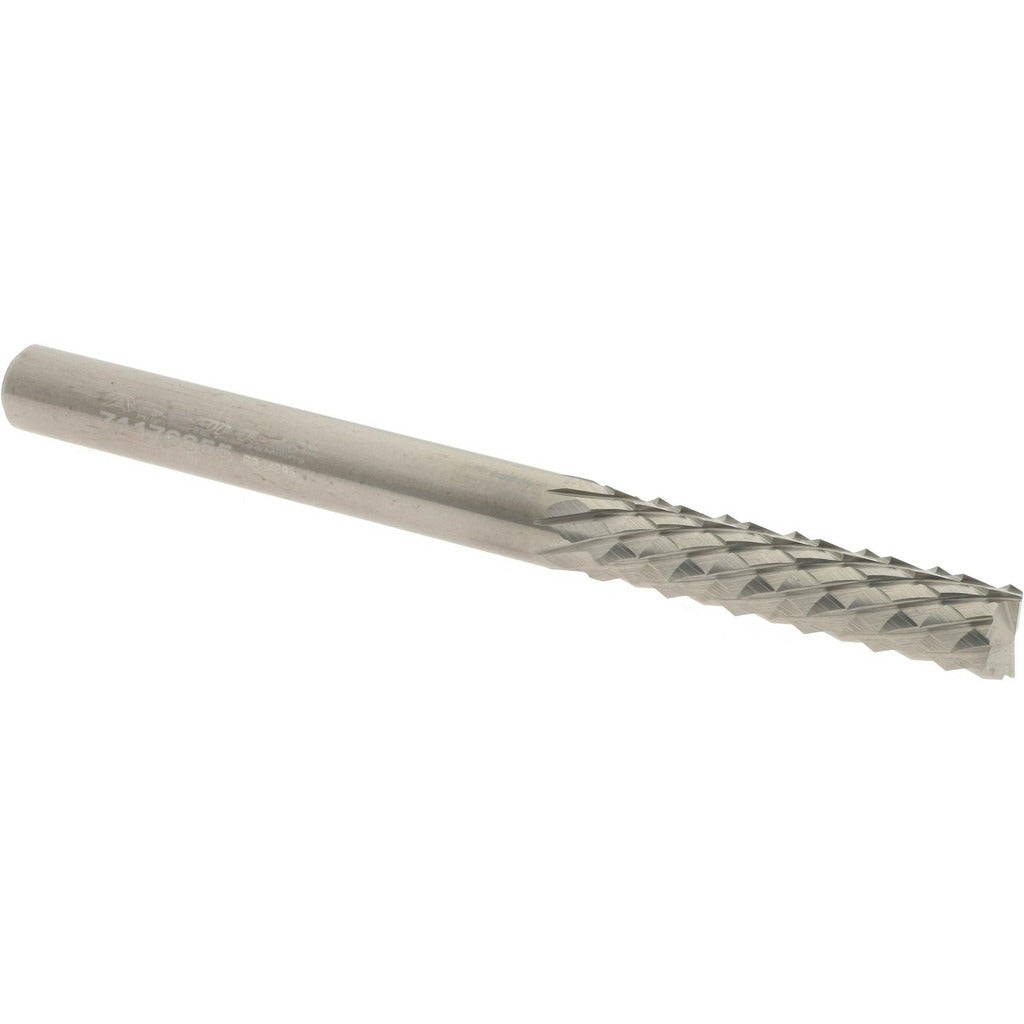

Accupro 71176655 Diamond Pattern Router Bit 0.25in Carbide

Product Description

The ACCUPRO 71176655 is a solid carbide diamond pattern router bit designed for precise material removal in fiberglass applications. With a 0.25 inch cutter diameter and a 1 inch length of cut, it delivers clean, controlled routing passes in composite and reinforced plastic materials. The right-hand cutting direction and end mill tip geometry allow it to be used in standard CNC and handheld router setups. At 3 inches overall length with a 1/4 inch shank diameter, this bit fits common collet sizes used across production and fabrication environments. The bright uncoated carbide construction provides sharp cutting edges suited to abrasive materials like fiberglass.

This router bit is intended for use in fiberglass fabrication, composite panel work, and related trade applications where clean edge definition and dimensional accuracy are required. It is suited to production shops, marine fabrication, HVAC duct fabrication involving composite panels, and similar environments where fiberglass is routinely cut or shaped. The 1/4 inch shank fits standard router collets and compact spindle toolholders used across CNC routers and handheld pneumatic or electric router setups.

Key Features

• Solid carbide construction withstands the abrasive wear of fiberglass and composite materials
• Diamond pattern geometry promotes chip evacuation and reduces heat buildup during cutting
• 0.25 inch cutter diameter with 1 inch length of cut for precise, controlled routing passes
• Right-hand cutting direction compatible with standard router spindle rotation
• 1/4 inch shank diameter fits common collet sizes on CNC and handheld routers
• Bright uncoated finish maintains sharp carbide edge geometry out of the box

Compatibility

Designed for use in routers and CNC spindles accepting a 1/4 inch shank collet. Primary material application is fiberglass as specified by the manufacturer.

Installation Notes

This bit should be installed by a qualified machinist or fabricator following standard tooling procedures. Ensure the router or spindle is fully powered down and locked out before inserting or removing the bit. Use a properly sized collet and torque the collet nut to the router manufacturer's specification. Always wear appropriate PPE when routing fiberglass, as the material produces fine abrasive dust that requires respiratory and eye protection.
