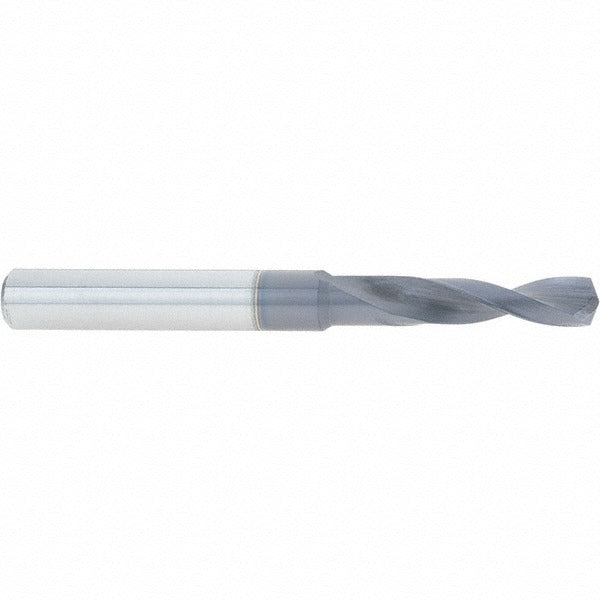

Accupro 63309579 Carbide Jobber Drill Bit Letter F Altin

Product Description

The ACCUPRO 63309579 is a solid carbide jobber length drill bit sized to Letter F (0.2570 inches) with a 140-degree notched point angle and an AlTiN (aluminum titanium nitride) coating. It is built for high-performance drilling in hard and abrasive materials including hardened steels, stainless steel, cast iron, and high-temperature alloys. The straight-cylindrical shank measures 5/16 inches in diameter, allowing it to seat in standard drill chucks and collets. A regular spiral flute with a 4xD flute-to-diameter ratio clears chips efficiently while the web-thinned, parallel-web point reduces entry force and improves centering accuracy. Licensed machinists, tool-and-die technicians, and mechanical contractors use this bit in CNC machining centers, drill presses, and handheld power tools.

This bit is suited to production and maintenance drilling where a standard high-speed steel bit would dull prematurely. The 140-degree split point geometry makes it appropriate for drilling into work-hardened surfaces without a center punch. With a maximum drilling depth of 1.03 inches and a flute length of 1.285 inches, it covers through-hole and blind-hole work in plate, structural steel, and fabricated components up to that depth. It is sold individually and is appropriate for shops, field service trucks, and tool cribs that stock precision carbide tooling by size.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard materials
• AlTiN coating extends tool life at elevated cutting temperatures
• 140-degree notched point reduces walking and lowers thrust force at entry
• Web-thinned parallel web improves chip evacuation and reduces heat buildup at the cutting edge
• Regular spiral flute with 4xD ratio balances chip clearance and core strength
• Straight-cylindrical shank fits standard chucks and ER collets without modification

Compatibility

Designed as a jobber length drill bit for use in CNC machining centers, drill presses, and compatible tool holders accepting a 5/16-inch straight-cylindrical shank.

Installation Notes

Installation should be performed by a qualified machinist or trained technician. Secure the shank fully in the chuck or collet and verify runout before beginning a cut. Always use the appropriate spindle speed and feed rate for the workpiece material and bit diameter. Inspect the cutting edges for chipping or wear before each use, as carbide is brittle and can fracture if fed into interrupted cuts without proper setup.
