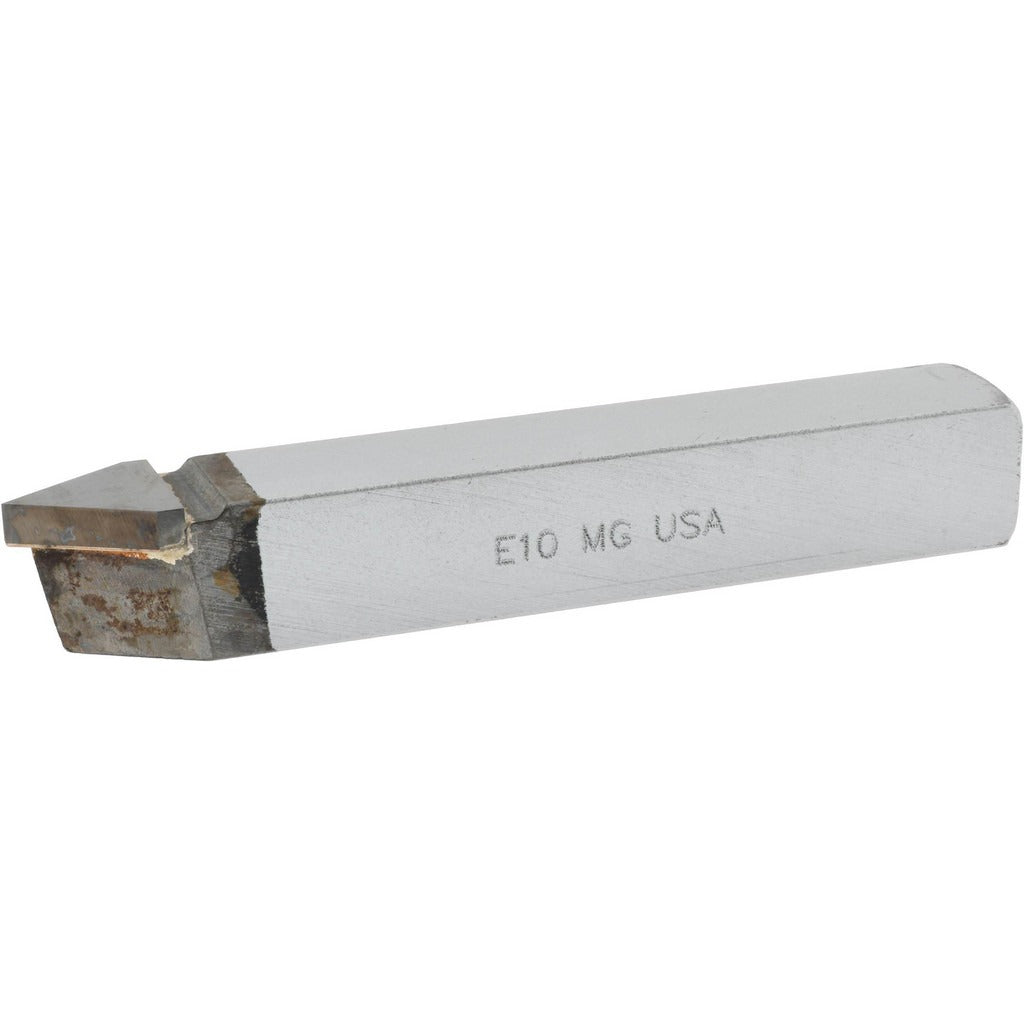

Accupro 625-MG Single Point Threading Tool Bit 5/8 Inch

Product Description

The ACCUPRO 625-MG is a single point tool bit designed for precision threading, chamfering, undercutting, and V-grooving operations on metal lathes and CNC turning centers. The cutting tip is micrograin solid carbide, ground to a 60-degree included angle, and oriented in a neutral cutting direction. The shank measures 5/8 inches wide by 5/8 inches tall with an overall length of 4 inches. Micrograin carbide provides fine grain structure for sharper edge retention at high surface speeds compared to standard carbide grades. This tool bit is intended for use by machinists and tool-and-die professionals running production or prototype threading operations.

The 625-MG is sized for use in tool holders and turrets that accept 5/8-inch square shank tooling, common on mid-size manual lathes and CNC turning centers. The neutral cutting direction suits both right-hand and certain left-hand threading setups depending on the holder orientation. The Style E profile and E-10 industry standard designation make it a direct fit for compatible E-series tool holders. Cutting applications include external and internal threading, chamfering, undercutting, and V-grooving in steel, cast iron, aluminum, and similar machinable materials.

Key Features

• Micrograin solid carbide tip for sharp edge retention and extended tool life
• 60-degree included angle suitable for standard unified and metric thread forms
• Neutral cutting direction for versatile holder orientation
• Style E profile, industry standard number E-10
• 5/8 inch square shank with 4 inch overall length
• Rated for threading, chamfering, undercutting, and V-grooving applications

Compatibility

Designed to fit E-series single point tool holders accepting 5/8 inch square shank tool bits per industry standard designation E-10.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and lock out the lathe or turning center before seating the tool bit in the holder. Ensure the tool bit is clamped securely and the cutting edge is set at the correct center height before engaging the spindle. Follow machine manufacturer torque specifications for tool holder clamping screws.
