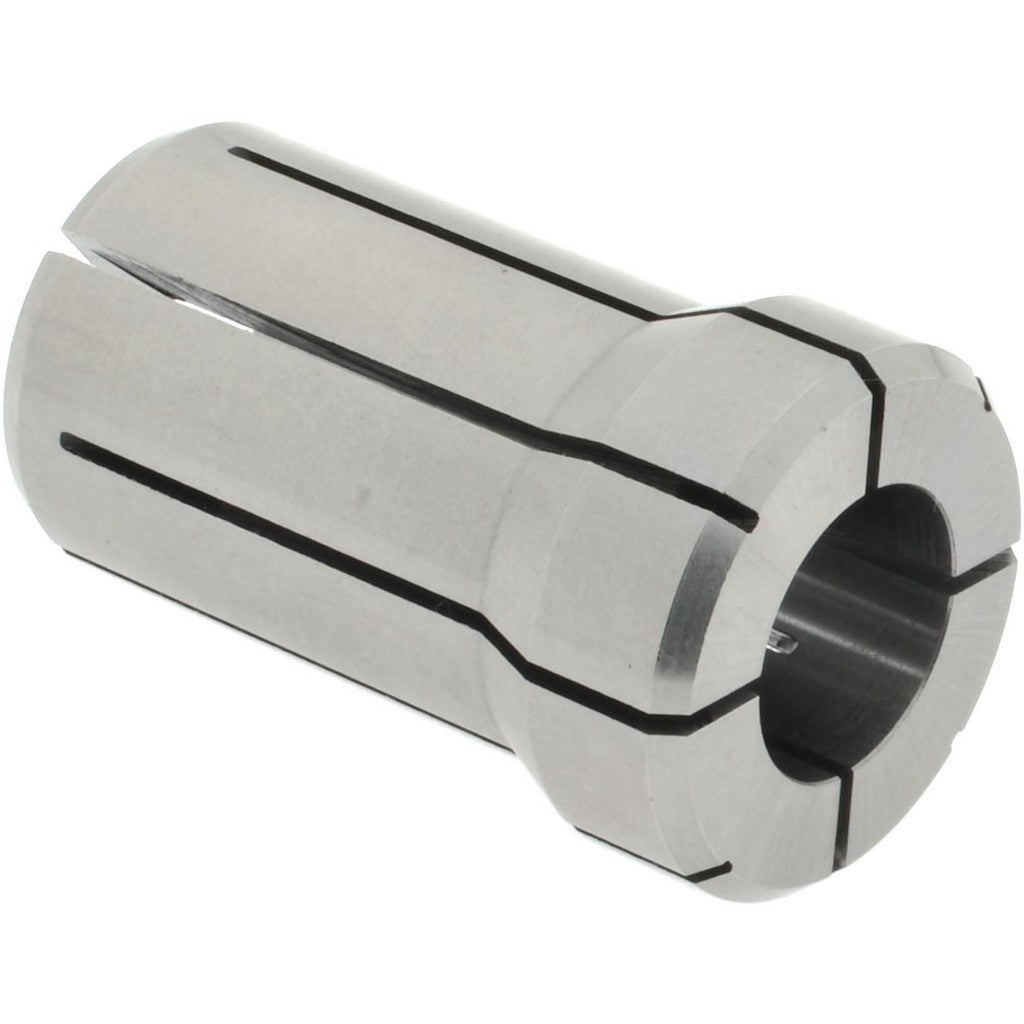

Accupro 586589 DA180 Double Angle Collet 35/64 Inch

Product Description

The ACCUPRO 586589 is a DA180 series double angle collet designed for precision workholding in CNC milling and drilling applications. This collet accepts a 35/64 inch (0.54690 inch decimal) tool shank and provides the secure, concentric grip required for accurate material removal. With an overall length of 1.637 inches and an overall diameter of 1.035 inches, it fits standard DA180 collet chucks used across a wide range of machining centers and drill presses. Machinists and tool room technicians rely on double angle collets for their ability to grip both round and hex shanks with consistent holding force.

This collet is suited for use in production and job shop environments where DA180 collet chucks are the standard toolholding system. It is appropriate for light-duty to medium-duty milling, drilling, and tapping operations on metalworking equipment. The 35/64 inch bore size accommodates commonly used end mills, drills, and taps within that shank diameter range. It is sold individually and is a direct drop-in for existing DA180 chuck bodies without modification.

Key Features

• DA180 collet series for compatibility with DA180 collet chuck bodies
• 35/64 inch bore diameter (0.54690 inch decimal) for precise tool shank engagement
• Overall length of 1.637 inches for proper seating depth in DA180 chucks
• Overall diameter of 1.035 inches matches DA180 chuck taper geometry
• Double angle design grips both round and hex shank tooling
• Sold individually with a minimum order quantity of 1

Compatibility

Designed as a direct replacement or additional collet for standard DA180 collet chuck bodies accepting a 35/64 inch bore size.

Installation Notes

Installation is performed by a qualified machinist or tool room technician. The machine spindle must be fully powered down and the chuck body secured before seating or removing the collet. Clean the chuck taper and collet taper surfaces before installation to ensure proper seating and runout accuracy. Do not exceed the chuck manufacturer's recommended torque when tightening the collet nut.
