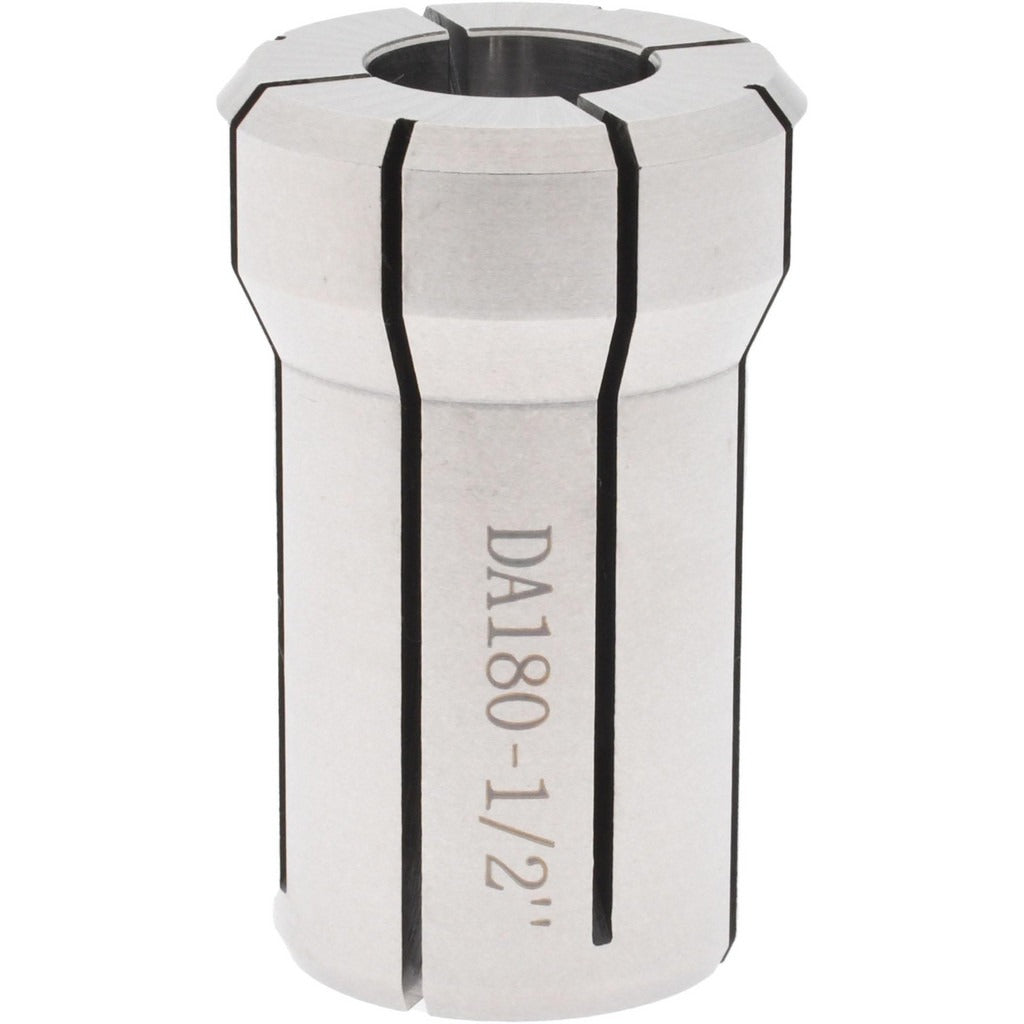

Accupro 586583 DA180 Double Angle Collet 1/2 Inch

Product Description

The ACCUPRO 586583 is a DA180 series double angle collet designed to hold cutting tools and workpieces in compatible collet chucks and toolholding systems. It accepts a 0.500 inch tool shank and measures 1.637 inches in overall length with an overall diameter of 1.035 inches. The double angle design provides secure clamping force across two contact surfaces, reducing runout and improving grip retention during machining operations. This collet is used by machinists and tool-and-die professionals in CNC milling, manual milling, and drilling applications where precise toolholding is required.

The ACCUPRO 586583 fits DA180 collet chucks used in vertical and horizontal milling machines and machining centers. It is suited for light to moderate stock removal in production and job shop environments. The 1/2 inch bore size accommodates straight-shank end mills, drills, and similar round-shank tooling. Each unit ships individually and is intended for direct installation into a DA180-compatible chuck body.

Key Features

• DA180 collet series for use with DA180-compatible chuck bodies
• 1/2 inch (0.5000 inch) bore accepts standard straight-shank cutting tools
• Overall length of 1.637 inches for consistent gage-line positioning
• Overall diameter of 1.035 inches for proper chuck seating
• Double angle contact geometry for improved clamping force and reduced runout

Compatibility

Designed as an OEM-style replacement and standard toolholding component for DA180-series collet chucks used in milling and drilling machine applications.

Installation Notes

Installation is performed by qualified machinists or toolroom personnel. Before changing collets, power down the machine spindle completely and confirm it has stopped rotating. Clean the chuck bore and collet taper surfaces before seating the collet to ensure proper contact and minimize runout. Use the appropriate collet wrench or spanner for the chuck style — do not use pipe wrenches or improvised tools that can damage the collet or chuck threads.
