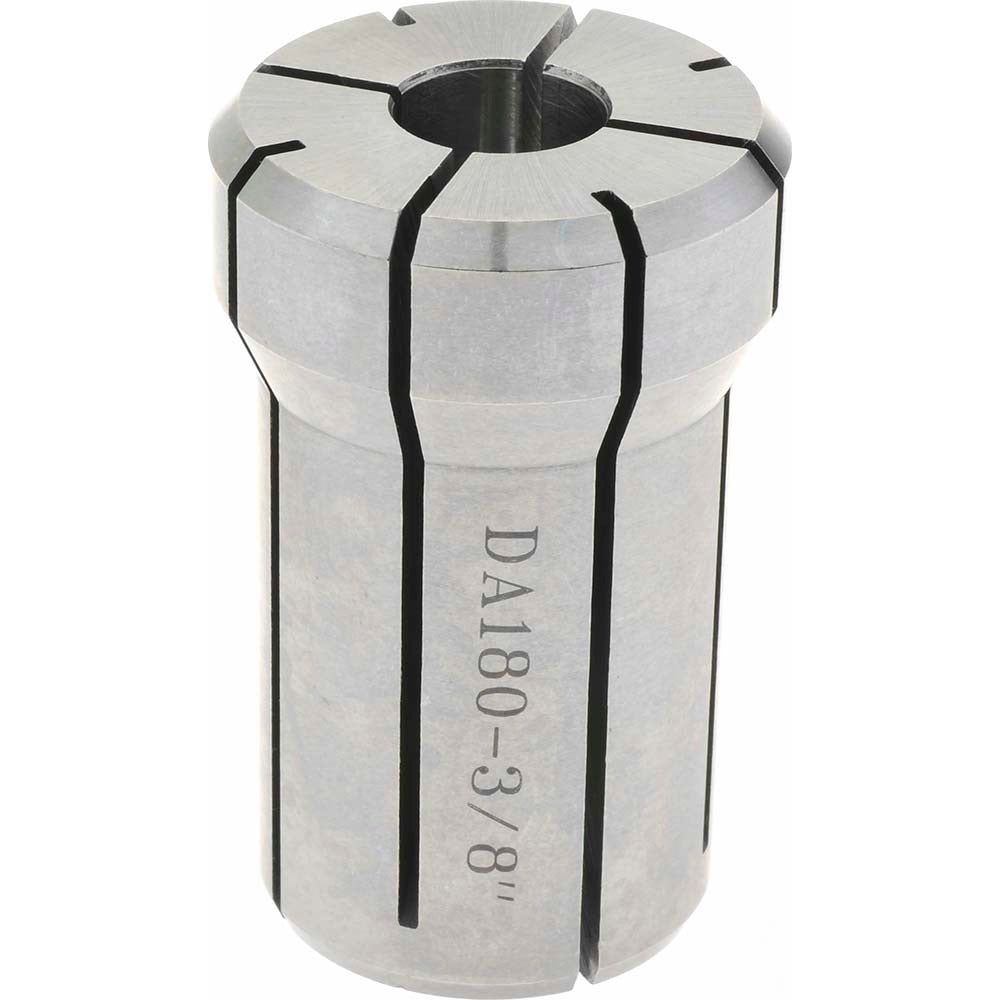

Accupro 586567 DA180 Double Angle Collet 3/8 Inch

Product Description

The ACCUPRO 586567 is a DA180 series double angle collet designed to hold cutting tools and workpieces in milling, drilling, and routing applications. It accepts a 3/8 inch shank diameter and provides secure, concentric clamping through the double angle contact design that distributes grip force evenly along the collet body. The overall length is 1.637 inches and the overall diameter is 1.035 inches. Machinists and tool room technicians install this collet into compatible DA180 collet chucks to achieve repeatable tool runout and reliable holding power across a wide range of cutting operations.

This collet is suited for CNC machining centers, manual mills, and routing spindles that accept the DA180 collet system. It is appropriate for both production shop environments and toolroom setups where a 3/8 inch tool shank must be held with consistent accuracy. The double angle design is a common choice when axial pull-out resistance and concentricity are both critical to the operation.

Key Features

• DA180 collet series for use with compatible DA180 collet chucks
• 3/8 inch (0.37500 inch) bore diameter for standard shank tooling
• Overall length of 1.637 inches for proper chuck engagement depth
• Overall diameter of 1.035 inches matches DA180 chuck taper geometry
• Double angle contact design distributes clamping load evenly for reduced runout

Compatibility

Designed as an OEM-style replacement or direct-fit collet for machine spindles and collet chucks built to the DA180 collet system standard.

Installation Notes

Installation is performed by qualified machinists or tool room technicians. The spindle or collet chuck must be fully de-energized and the machine brought to a complete stop before changing collets. Clean the chuck taper and collet body of chips and coolant before seating the collet to ensure proper contact and minimize runout. Use the correct torque wrench and chuck spanner specified by the chuck manufacturer — do not overtighten, as this can deform the collet bore and reduce holding accuracy.
