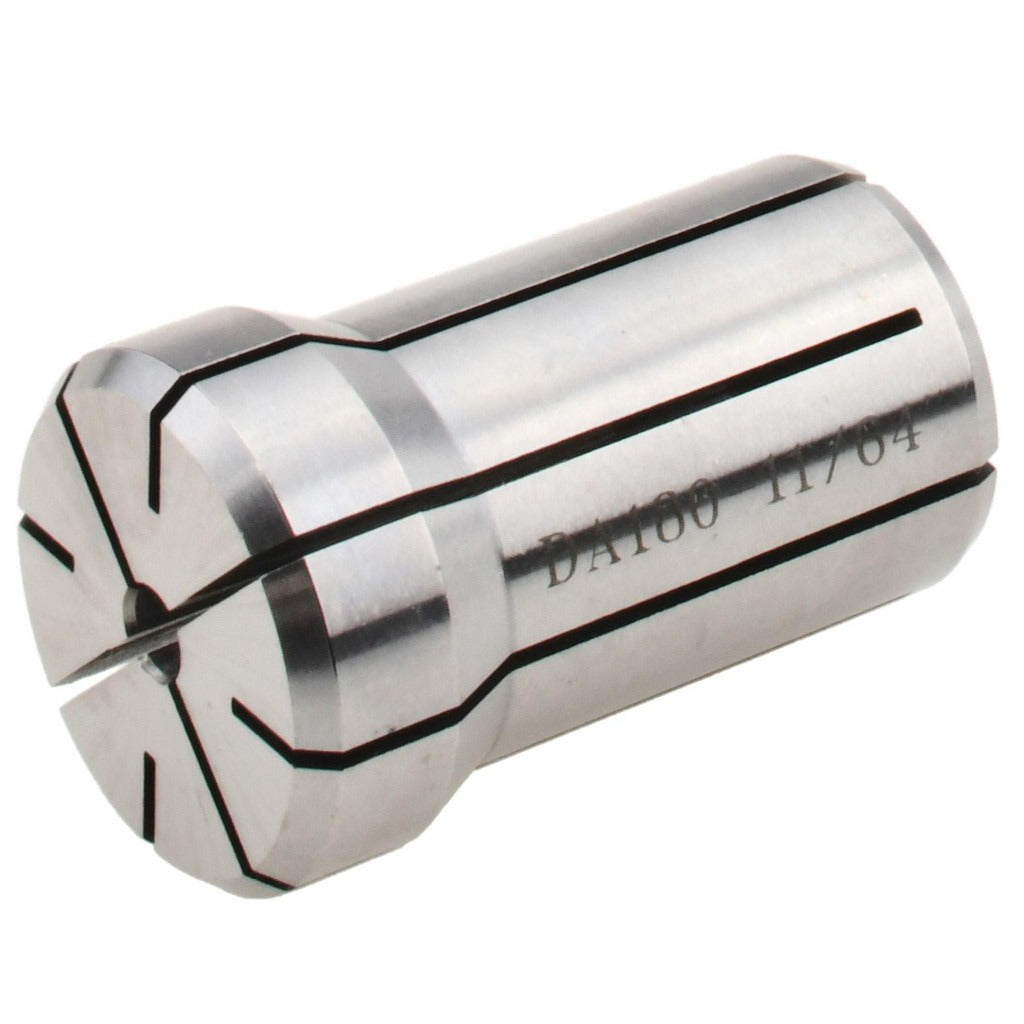

Accupro 586541 DA180 Double Angle Collet 11/64 Inch

Product Description

The ACCUPRO 586541 is a DA180 series double angle collet designed for use in milling, drilling, and light machining operations where precise tool holding is required. With a bore size of 0.1719 inches (11/64 inch), an overall length of 1.637 inches, and an overall diameter of 1.035 inches, this collet provides a secure, concentric grip on round-shank cutting tools. It is suited for machinists, tool room operators, and CNC setup technicians working with compatible DA180 spindle tooling systems.

This collet fits DA180-style collet chucks commonly found on manual mills, drill presses, and CNC machining centers used in production and job-shop environments. It accommodates 11/64-inch shank tooling including drill bits, end mills, and reamers. The DA180 collet system is a standard in general-purpose metal and composite machining applications across light industrial and precision manufacturing settings.

Key Features

• DA180 collet series for compatibility with DA180-style chuck bodies
• 11/64 inch (0.1719 inch) bore for precise small-diameter tool holding
• Overall length of 1.637 inches for consistent projection and setup repeatability
• Overall diameter of 1.035 inches fits standard DA180 chuck nose geometry
• Compact form factor suited for close-tolerance and tight-clearance machining

Compatibility

Designed as an OEM-style replacement and standard fitment collet for DA180 series collet chuck bodies used in milling and drilling applications.

Installation Notes

Installation is performed by qualified machinists or tool room technicians. Ensure the spindle is fully stopped and the machine is powered down before inserting or removing collets. Clean the chuck bore and collet taper surfaces before seating to prevent runout. Use the appropriate collet nut wrench rated for the DA180 chuck system — do not over-tighten by impact or improvised tools.
