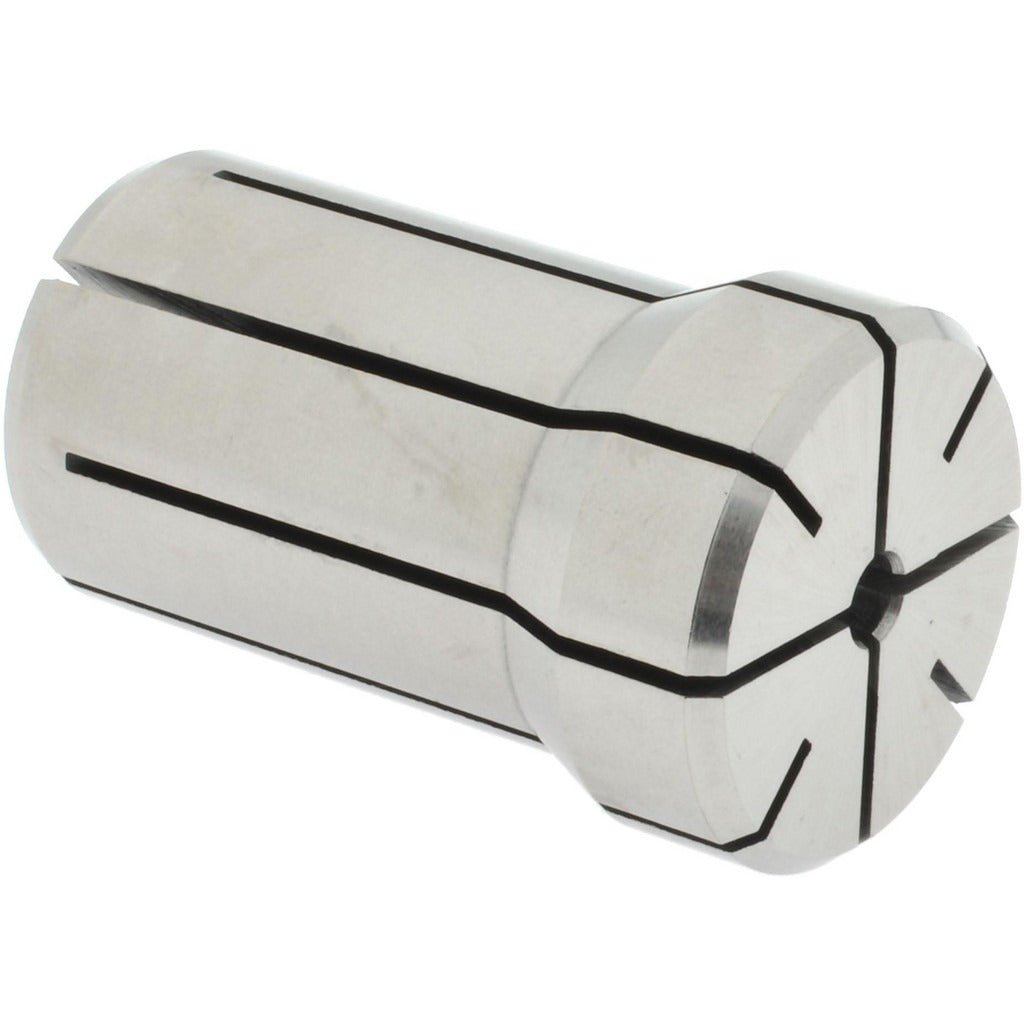

Accupro 586539 DA180 Double Angle Collet 5/32 Inch

Product Description

The ACCUPRO 586539 is a DA180 series double angle collet designed for use in milling, drilling, and routing applications on CNC machines and manual spindles that accept the DA180 collet system. With a bore size of 0.1563 inches (5/32 inch nominal), an overall length of 1.637 inches, and an outer diameter of 1.035 inches, this collet provides a precise, concentric grip on cutting tools and workholding shanks. Machinists and toolroom technicians rely on double angle collets for their ability to grip over a wider clamping range compared to single-angle designs, making them a practical choice in production and job shop environments.

This collet is suited for use in machining centers, CNC routers, drill presses, and manual mills equipped with DA180-compatible spindle tooling systems. The 5/32 inch bore accommodates drill bits, end mills, and other round-shank cutting tools of that diameter. It is typically installed by machinists, toolroom personnel, or CNC setup technicians during tooling changes or spindle configuration work.

Key Features

• DA180 collet series for compatibility with DA180-system spindles and chucks
• 5/32 inch (0.15630 inch decimal) bore for precise tool gripping
• Overall length of 1.637 inches for proper spindle seating depth
• Outer diameter of 1.035 inches machined to DA180 taper specification
• Double angle design provides a wider clamping range than single-angle collets
• Sold individually; package quantity of 1

Compatibility

Designed as a direct-fit replacement or supplemental collet for spindles and chucks built to the DA180 collet system standard. Accepts round-shank tooling with a 5/32 inch shank diameter.

Installation Notes

Installation is performed by machinists or CNC technicians during tooling setup or changeover. Always power down and lock out the spindle drive before inserting or removing collets. Use the appropriate collet nut wrench and spanner for the DA180 system to achieve proper seating torque without over-tightening. Inspect the collet bore and taper surfaces for chips or wear before each use to maintain concentricity and tool grip.
