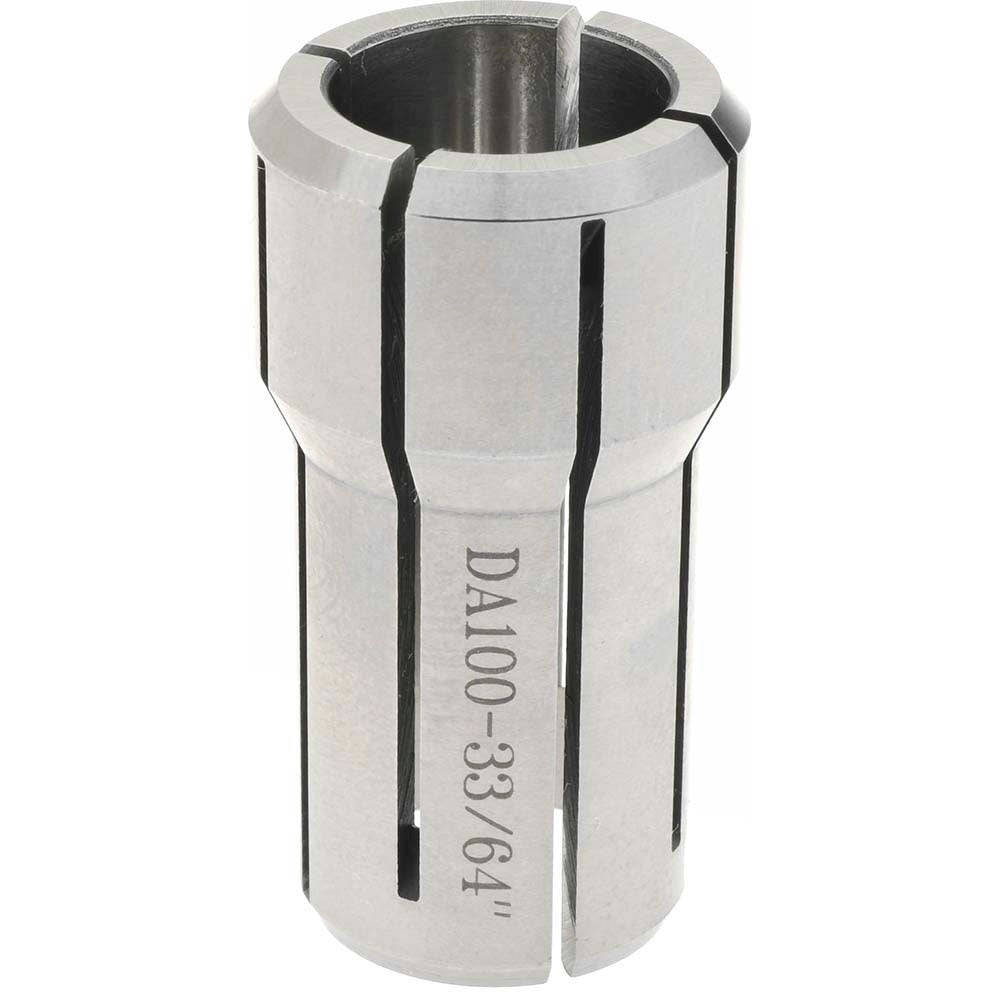

Accupro 586517 DA100 Double Angle Collet 33/64 Inch

Product Description

The ACCUPRO 586517 is a DA100 series double angle collet designed for use in milling, drilling, and tapping operations on CNC machining centers and manual machines equipped with DA100 collet chucks. This collet accepts a 33/64 inch (0.5156 inch decimal) bore and measures 1.441 inches overall length with a 0.769 inch overall diameter. Double angle collets provide a dual-taper clamping geometry that delivers improved concentricity and grip compared to single-angle designs. Machinists and toolroom technicians install these collets in production and job shop environments where secure, repeatable tool holding is critical to dimensional accuracy.

This collet fits DA100 collet chucks and is suited for light to medium cutting operations in ferrous and non-ferrous materials. The 33/64 inch bore accommodates round shanks at that nominal diameter, making it a common selection for drill bits, end mills, and taps with matching shank sizes. It is appropriate for both production machining and general toolroom use where the DA100 chuck system is already in place.

Key Features

• DA100 collet series with double angle clamping geometry for improved concentricity and grip
• 33/64 inch nominal bore (0.5156 inch decimal) for precise shank sizing
• 1.441 inch overall length for standard DA100 chuck compatibility
• 0.769 inch overall diameter consistent with DA100 series dimensional standards
• Sold individually, no minimum multi-pack required

Compatibility

Designed for use with DA100 series collet chucks. Verify chuck series and bore size against your machine spindle specifications before installation.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Always de-energize and lock out the machine spindle before changing collets. Inspect the collet bore, taper surfaces, and the chuck body for chips, wear, or damage prior to assembly. Do not exceed the chuck manufacturer's recommended torque for the collet nut, and ensure the tool shank is fully seated to the collet bore depth before tightening.
