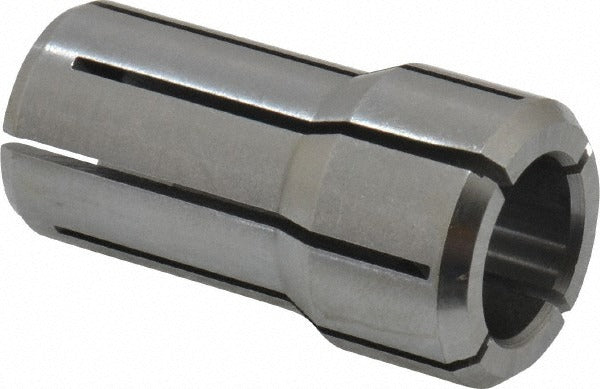

Accupro 586515 DA100 Double Angle Collet 31/64 Inch

Product Description

The ACCUPRO 586515 is a DA100 series double angle collet designed for use in DA100 collet chucks commonly found on CNC machining centers, milling machines, and drilling equipment. This collet accepts a 31/64 inch (0.48438 inches decimal) tool shank and provides secure, concentric clamping for cutting tools, drills, reamers, and end mills. The overall length measures 1.441 inches and the outer diameter is 0.769 inches. Double angle collets grip from two contact surfaces, improving tool runout accuracy compared to single angle designs. This collet is used by machinists and tool room technicians in production and job shop environments.

DA100 double angle collets are suited for light to medium-duty material removal operations where consistent tool holding and repeatable setup are priorities. The 31/64 inch bore size accommodates standard shank tooling used in ferrous and non-ferrous machining applications. This collet fits DA100-pattern collet chucks used on vertical machining centers and drill press setups in both job shop and production environments.

Key Features

• DA100 series double angle collet for two-surface clamping and improved runout control
• 31/64 inch bore size (0.48438 inches decimal) for standard shank tooling
• Overall length of 1.441 inches for precise chuck engagement
• Outer diameter of 0.769 inches for correct DA100 chuck fit
• Compact, lightweight design at 0.5 pounds

Compatibility

Designed as an OEM-style replacement or supplemental collet for DA100-pattern collet chucks used in CNC and manual machining equipment.

Installation Notes

DA100 collets are installed and removed by qualified machinists or toolroom technicians. Always power down and lock out the spindle before changing collets. Inspect the collet bore and chuck taper for chips or wear before seating the collet, and use the appropriate DA100 collet nut and wrench to achieve proper clamping without over-torquing.
