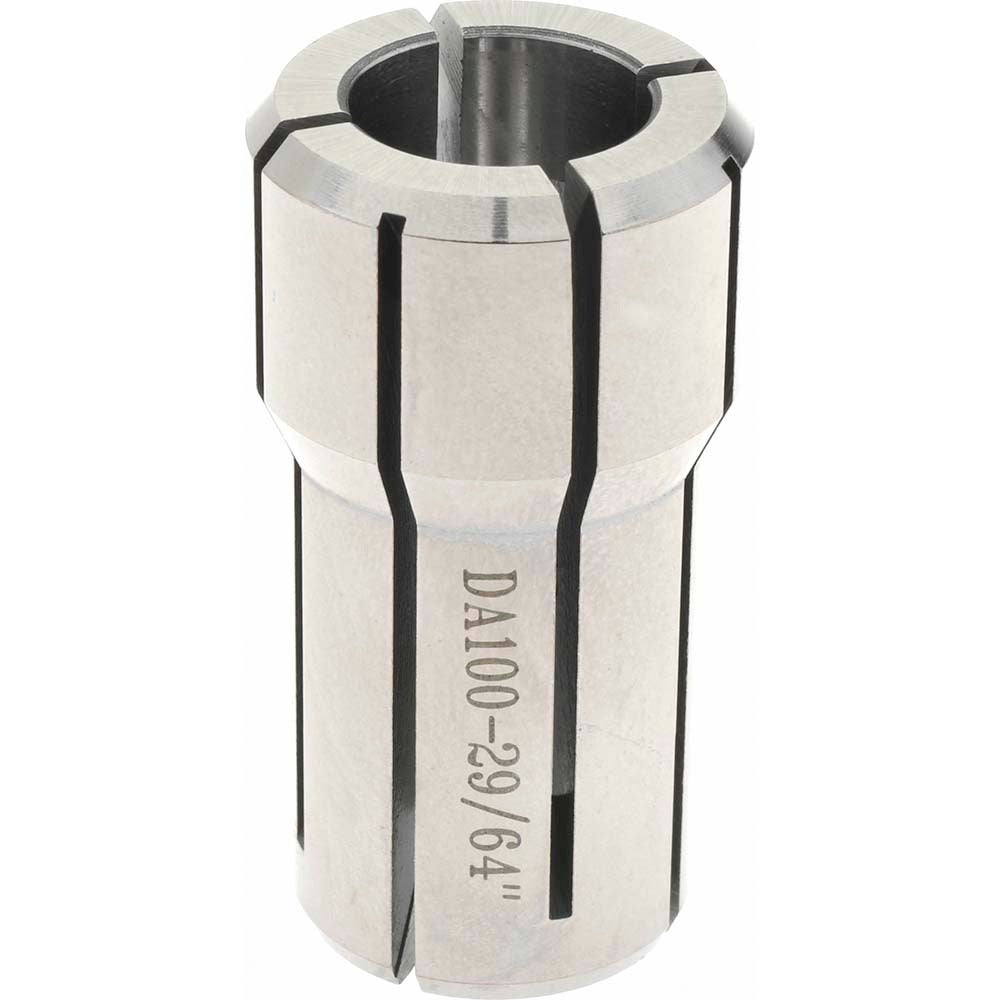

Accupro 586513 DA100 Double Angle Collet 29/64 Inch

Product Description

The ACCUPRO 586513 is a double angle collet in the DA100 series, designed for use in compatible DA-style collet chucks on milling machines, machining centers, and CNC equipment. With a bore size of 29/64 inch (0.45310 inches decimal) and an overall length of 1.441 inches, this collet provides secure tool clamping for end mills, drills, and other round-shank cutting tools. The overall diameter measures 0.7690 inches. Weighing 0.5 pounds, it is a compact, single-piece precision component installed by machinists and tool room technicians during setup and tooling changes.

This collet is suited for production and job-shop environments where DA100-style toolholding systems are in use. It is appropriate for light to medium-duty milling and drilling operations on vertical machining centers and manual knee mills. The 29/64 inch bore accommodates standard round-shank tooling at that diameter, making it a common replacement or additional collet for shops maintaining a full range of DA100 collet sets.

Key Features

• DA100 collet series for use with DA100-compatible collet chucks
• 29/64 inch bore size (0.45310 inches decimal) for standard round-shank tooling
• Overall length of 1.441 inches for consistent tool projection
• Overall diameter of 0.7690 inches for proper chuck fit
• Lightweight at 0.5 pounds for easy handling during tooling changes

Compatibility

Designed for use with DA100-series collet chucks that accept double angle collets. Verify chuck series compatibility before installation.

Installation Notes

Installation is performed by a machinist or tool room technician. Ensure the machine spindle is fully stopped and the chuck is removed or secured before inserting or changing collets. Clean the collet bore and chuck taper before assembly to ensure proper seating and runout performance. Do not exceed the chuck manufacturer's recommended clamping torque for the collet nut.
