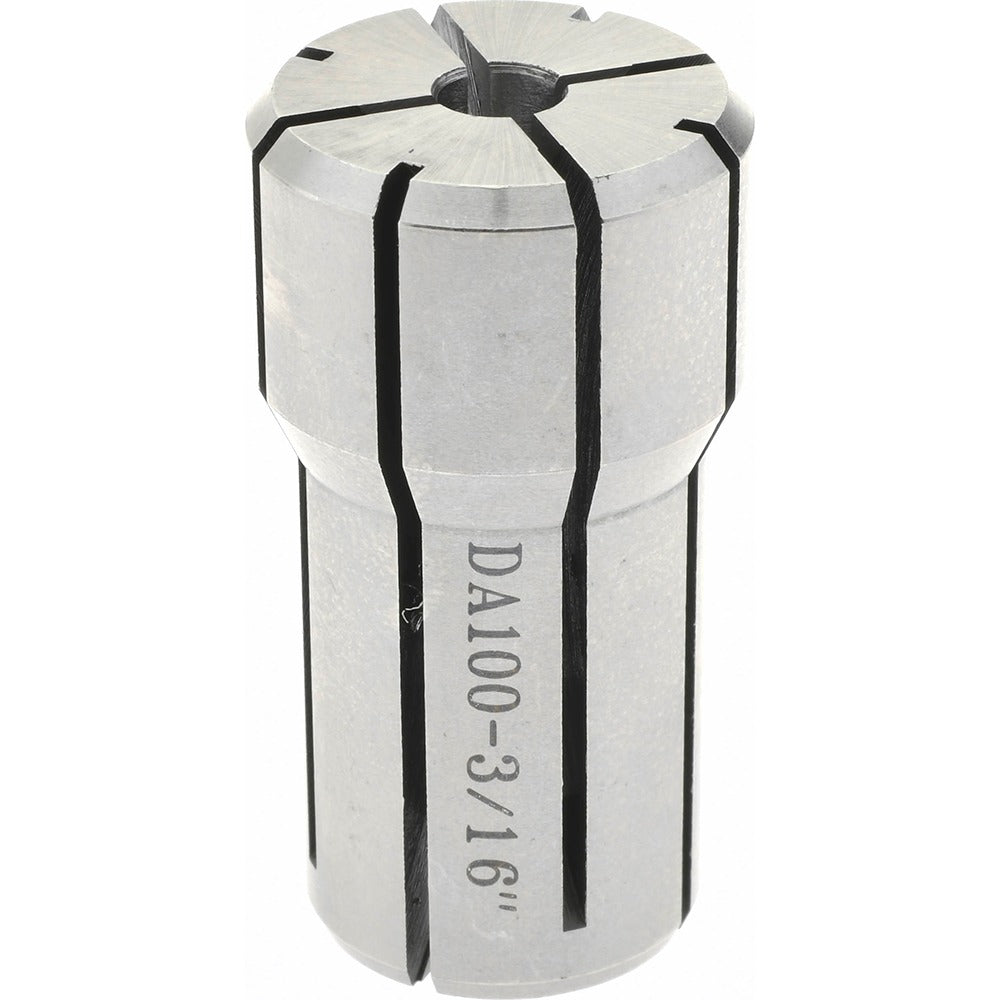

Accupro 586343 DA100 Double Angle Collet 3/16 Inch

Product Description

The ACCUPRO 586343 is a DA100 series double angle collet designed for use in DA100-style collet chucks on milling machines, CNC machining centers, and manual mills. It accepts a 0.1875 inch (3/16 inch) round shank tooling and provides a secure, concentric grip during cutting operations. The collet measures 1.441 inches in overall length and 0.769 inches in overall diameter. Double angle collets use two contact angles to distribute clamping force evenly, reducing runout and improving tool life. Machinists and CNC operators install this collet as part of a standard DA100 toolholding system.

This collet is suited for light to medium milling and drilling operations in job shop and production environments. It fits DA100 collet chucks used on knee mills, bed mills, and CNC vertical machining centers where 3/16 inch shank end mills, drills, or reamers are required. The DA100 series is a common toolholding standard in North American machine shops.

Key Features

• DA100 collet series for use in DA100-compatible collet chucks
• Accepts 3/16 inch (0.1875 inch) round shank tooling
• Overall length of 1.441 inches for standard DA100 chuck fit
• Overall diameter of 0.769 inches
• Double angle design distributes clamping force for reduced runout

Compatibility

Designed as a direct-fit replacement or addition for DA100 series collet chucks accepting 3/16 inch shank tooling.

Installation Notes

Installation is performed by a machinist or CNC operator. Power down and lock out the machine spindle before inserting or removing the collet from the chuck. Use the appropriate DA100 collet nut and spanner wrench to seat and torque the collet chuck assembly per the machine manufacturer guidelines. Inspect the collet bore and chuck taper for chips or damage before each use.
