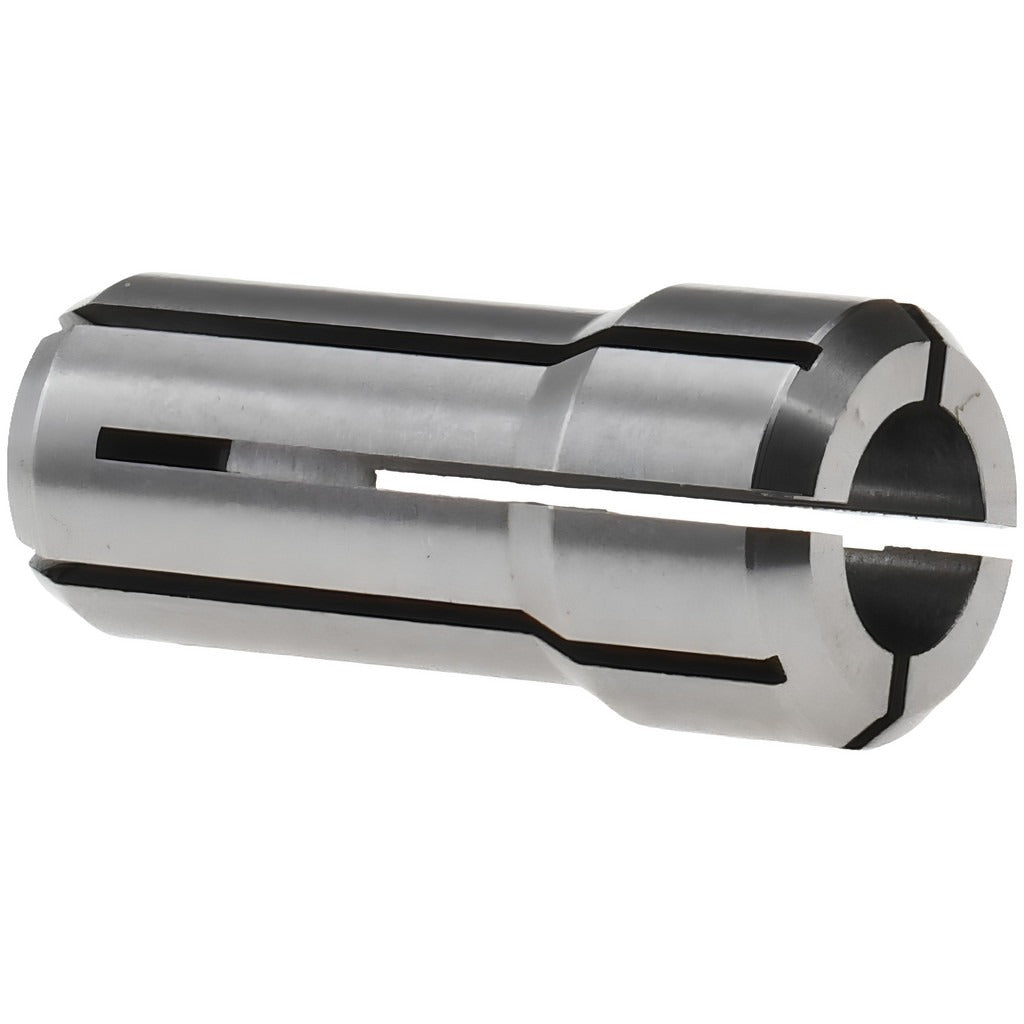

Accupro 586314 DA200 Double Angle Collet 19/64 Inch

Product Description

The ACCUPRO 586314 is a DA200 series double angle collet designed for use in DA200-compatible toolholding systems on milling machines, machining centers, and CNC lathes. The collet accepts a 0.2969 inch (19/64 inch) bore diameter and measures 1.193 inches in overall length with an overall diameter of 0.539 inches. Double angle collets grip cutting tools and workholding stock with high concentricity by engaging along two angled contact surfaces, providing secure clamping with minimal runout. This collet is installed by machinists and CNC operators working in production or job-shop environments where consistent, repeatable tool positioning is critical to part quality.

The ACCUPRO 586314 is suited for use in DA200 collet chucks mounted on vertical or horizontal machining centers, drill presses, and manual mills. It is appropriate for both production machining and maintenance shops where a wide range of tooling diameters must be accommodated. The 19/64 inch bore size makes it a practical choice for holding straight-shank drills, end mills, and similar round-shank cutting tools of that diameter.

Key Features

• DA200 collet series for compatibility with DA200-style toolholders and chucks
• 19/64 inch (0.2969 inch) bore diameter for straight-shank tooling
• 1.193 inch overall length for standard DA200 chuck depth engagement
• 0.539 inch overall diameter fits DA200 collet pocket geometry
• Double angle contact design provides secure grip and reduced runout
• Sold individually — no minimum multi-pack required

Compatibility

Designed as an OEM-style replacement or service collet for DA200 series collet chucks and toolholding systems requiring a 19/64 inch bore double angle collet.

Installation Notes

Installation is performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and the machine is locked out before changing collets. Clean the collet pocket and collet body of chips and coolant residue before seating the collet to prevent false seating and concentricity errors. Tighten the collet nut to the toolholder manufacturer's specified procedure using the appropriate collet nut wrench — do not use pipe wrenches or improvised tools.
