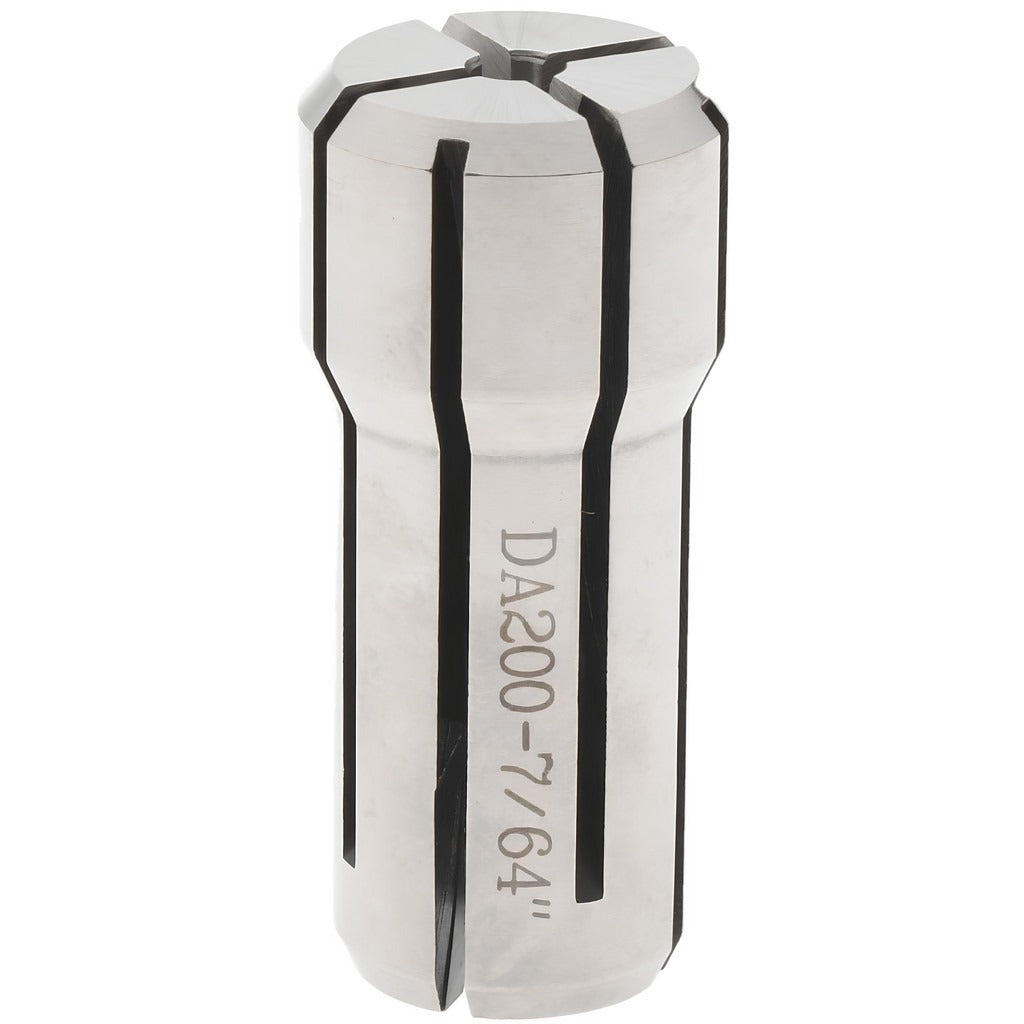

Accupro 586305 DA200 Double Angle Collet 7/64 Inch

Product Description

The ACCUPRO 586305 is a DA200 series double angle collet designed for use in CNC machining centers, milling machines, and toolholding systems that accept the DA200 collet format. This collet holds a 7/64 inch (0.1094 inch decimal) tool shank with a secure, concentric grip. The overall length measures 1.193 inches and the overall diameter is 0.539 inches. Double angle collets use a two-taper contact design that increases gripping force and reduces runout compared to single-taper designs. Machinists and tool crib operators install these collets as part of a DA-style collet chuck assembly.

This collet is suited for light to moderate metal removal operations in production machining environments. It accepts standard round shank cutting tools at the 7/64 inch size, including small-diameter end mills, drills, and reamers. The DA200 series is a widely used collet format in manual and CNC milling applications where quick tool changes and repeatable tool projection are required.

Key Features

• DA200 collet series for compatibility with DA200-style collet chucks
• 7/64 inch bore size (0.1094 inch decimal) for small-diameter tool shanks
• Overall length of 1.193 inches for consistent tool projection
• Overall diameter of 0.539 inches
• Double angle design increases gripping force and reduces runout
• Sold individually — package quantity of 1

Compatibility

Designed for use with DA200 series collet chucks that accept the DA200 collet format. Confirm chuck series and bore size before installation.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Always power down and lock out the spindle drive before changing collets. Use the appropriate collet nut wrench for the DA200 chuck; do not use pipe wrenches or improvised tools that can damage the collet nut seating surface. Inspect the collet bore and chuck taper for chips or damage before seating the collet.
